Gebrauchsanleitung / Montageanleitung
DE
Mode d'emploi / Instructions de montage
FR
Instructions for use / assembly instructions
EN
Istruzioni per l'uso / Istruzioni per Installazione
IT
Modo de empleo / Instrucciones de montaje
ES
Gebruiksaanwijzing / Handleiding
NL
Brugsanvisning / Monteringsvejledning
DK
Instruções para uso / Manual de Instalación
PT
Instrukcja obsługi / Instrukcja montażu
PL
Návod k použití / Montážní návod
CS
Návod na použitie / Montážny návod
SK
/
ZH
Руководство пользователя /
RU
Инструкция по монтажу
Käyttöohje / Asennusohje
FI
Bruksanvisning / Monteringsanvisning
SV
Vartotojo instrukcija / Montavimo instrukcijos
LT
Upute za uporabu / Uputstva za instalaciju
HR
Kullanım kılavuzu / Montaj kılavuzu
TR
Manual de utilizare / Instrucţiuni de montare
RO
Οδηγίες χρήσης / Οδηγία συναρµολόγησης
EL
Navodilo za uporabo / Navodila za montažo
SL
Kasutusjuhend / Paigaldusjuhend
ET
Lietošanas pamācība / Montāžas instrukcija
LV
Uputstvo za upotrebu / Uputstvo za montažu
SR
Bruksanvisning / Montasjeveiledning
NO
Инструкция за употреба /
BG
Ръководство за монтаж
Udhëzuesi i përdorimit / Udhëzime rreth montimit 28
SQ
/
AR
Használati útmutató / Szerelési útmutató
HU
JP 取扱説明書 / 施工説明書
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
29
30
31

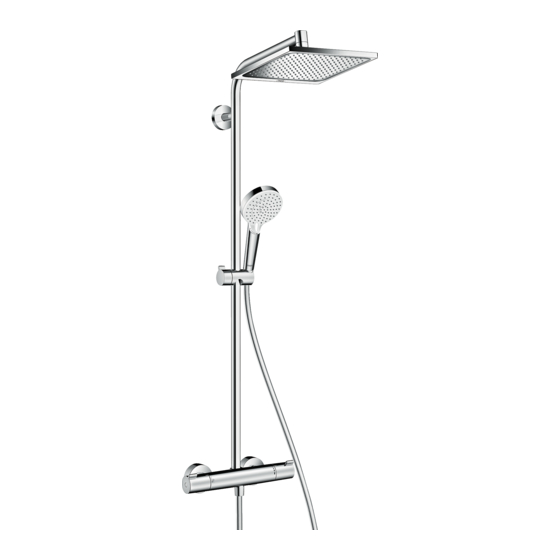

Crometta E 240 1jet Showerpipe EcoSmart
27281XXX / 26596000
Crometta S 240 1jet Showerpipe EcoSmart
27268XXX
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hans Grohe Crometta E 240 1jet Showerpipe EcoSmart 27281 Series
Summary of Contents for Hans Grohe Crometta E 240 1jet Showerpipe EcoSmart 27281 Series
- Page 1 Gebrauchsanleitung / Montageanleitung Mode d'emploi / Instructions de montage Instructions for use / assembly instructions Istruzioni per l'uso / Istruzioni per Installazione Modo de empleo / Instrucciones de montaje Gebruiksaanwijzing / Handleiding Brugsanvisning / Monteringsvejledning Instruções para uso / Manual de Instalación Instrukcja obsługi / Instrukcja montażu Návod k použití...
-
Page 2: Montage
Deutsch Prüfdruck: 1,6 MPa Sicherheitshinweise (1 MPa = 10 bar = 147 PSI) Bei der Montage müssen zur Vermeidung von Quetsch- und Schnittverletzungen Heißwassertemperatur: max. 60°C Handschuhe getragen werden. Thermische Desinfektion: 70°C / 4 min Anschlussmaße: 150±12 mm Der Kopfbrausearm ist nur für das Halten der Kopfbrause ausgelegt, er darf Anschlüsse G 1/2: kalt rechts - warm links nicht mit weiteren Gegenständen belastet werden! -
Page 3: Instructions Pour Le Montage
Français (1 MPa = 10 bar = 147 PSI) Consignes de sécurité Température d'eau chaude: max. 60°C Lors du montage, porter des gants de protection pour éviter toute blessure par Désinfection thermique: 70°C / 4 min écrasement ou coupure. Dimension d´arrivée: 150±12 mm Raccordement G 1/2: froide à... - Page 4 English • Safety against backflow Safety Notes • The product is exclusively designed for drinking water! Gloves should be worn during installation to prevent crushing and cutting Symbol description injuries. Do not use silicone containing acetic acid! The arm of the shower head is intended only to hold the shower head. Do not load it down with other objects! Adjustment (see page 34) Children as well as adults with physical, mental and/or sensoric impairments...
- Page 5 Italiano 27281XXX / 26596000 Pressione d'uso consigliata: 0,13 - 0,5 MPa Indicazioni sulla sicurezza Pressione di prova: 1,6 MPa Durante il montaggio, per pevitare ferite da schiacciamento e da taglio bisogna (1 MPa = 10 bar = 147 PSI) indossare guanti protettivi. Temperatura dell'acqua calda: max.
- Page 6 36 mm Silicone X + 36 mm SW 24 mm max. 39 mm max. 5 mm SW 30 mm (17 Nm) SW 4 mm (8 Nm) Armaturenfett Grease...
- Page 7 Ø 6 SW 3 mm 97246000 SW 17 mm (4 Nm) (10 Nm) 97246000...
- Page 8 SW 3 mm SW 3 mm (2 Nm) SW 3 mm z. B. 42° C for example 42° C SW 3 mm (2 Nm)
- Page 9 öffnen / ouvert / open / aperto / abierto / open / åbne / abrir / otworzyć / otevřít / otvoriť / / открыть / schließen / fermé / close / chiudere / cerrar / nyitás / avaaminen / öppna / atidaryti / Otvaranje / açmak / deschide / ανοικτό / odpreti / avage / atvērt / sluiten / lukke / fechar / zamknąć...
- Page 10 Crometta S 240 1jet Showerpipe EcoSmart 27268XXX 4 6 8 3 5 2 Ø 2 4 0 Ø 2 2 m a x . 2 81 ± 12 15 0 10 0 2 9 5 Crometta S 240 1jet Showerpipe EcoSmart 27268XXX 0,60 0,55...
- Page 11 Crometta E 240 1jet Showerpipe EcoSmart 27281XXX / 26596000 4 7 0 3 5 5 2 4 0 Ø 2 2 m a x . 2 81 ± 12 15 0 10 0 2 9 5 Crometta E 240 1jet Showerpipe EcoSmart 27281XXX / 26596000 0,60 0,55...
- Page 12 www.hansgrohe.com/ www.hansgrohe.com/ www.hansgrohe.com/ www.hansgrohe.com/ cleaning-recommendation cleaning-recommendation cleaning-recommendation cleaning-recommendation Reinigungsempfehlung / Garantie / Kontakt Preporuke za čišćenje / Garancija / Kontakt Recommandation pour le nettoyage / Garanties / Contact Temizleme önerisi / Garanti / Temas Cleaning recommendation / Warranty / Contact Recomandări pentru curăţare / Garanţie / Contact Raccomandazione di pulizia / Garanzia / Contatto Σύσταση...
- Page 13 > 1 min SW 17 mm SW 17 mm (10 Nm) > 1 min...
- Page 14 SW 3 mm SW 10 mm SW 30 mm rot ⁄ rouge ⁄ red ⁄ rosso ⁄ rojo ⁄ rood ⁄ Rød ⁄ vermelho ⁄ czerwony ⁄ červená ⁄ ⁄ красный ⁄ piros ⁄ punainen ⁄ röd ⁄ raudona ⁄ crvena ⁄...
- Page 15 98187000 (50x2) 95688000 98447000 98165000 (M6x5) (20x2) SW 3 mm 93072XXX 96179000 95692XXX 92137000 94246000 (M6x12) 95659000 98131000 95239XXX SW 4 mm (9 l/min) (15x2,5) XXX = Farbcodierung / Couleurs / Colors / Trattamento / Acabados / Kleuren / Overflade/ Acabamentos / Kody kolorów / 26724XXX Kód povrchové...
- Page 22 Hansgrohe · Auestraße 5 – 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
