convenience concepts ADMIRAL SQUARE 111239 Assembly Instructions

Coffee table

ASSEMBLY INSTRUCTIONS

We have designed our furniture with you , the customer in mind . Our clear , easy to follow ,

step by step instructions will guide you through the project from start to finish .

Feel confident that this will be a fun and rewarding project . The final product will be a quality

piece of furniture that will go together smoothly and give years of enjoyment .

Please do not return to the store

STOP

Broken or missing parts?

Need help with assembly?

Our Illinois based customer service team is ready to help with any problems or questions you may have.

Please give us a call (Toll Free) at 1-800-468-6447, or email us at parts@convenience-concepts.com.

Normal hours of Operation: M-F* 8am-4pm CST.

*Excludes Holidays

This product's warranty is only valid through authorized dealers.

ADMIRAL SQUARE

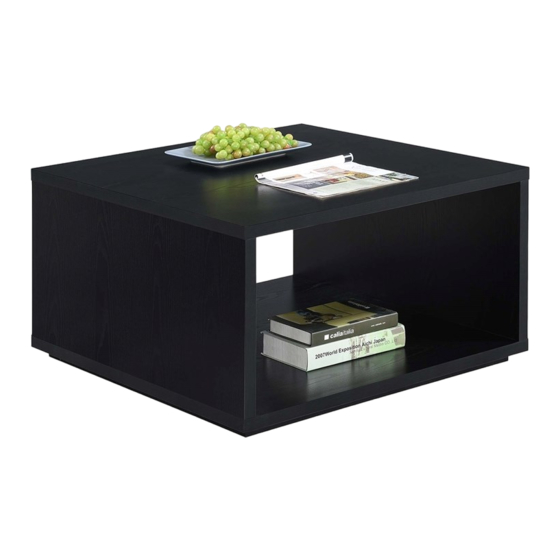

COFFEE TABLE

111239

Table of Contents

Need help?

Do you have a question about the ADMIRAL SQUARE 111239 and is the answer not in the manual?

Page 1 ADMIRAL SQUARE COFFEE TABLE 111239 ASSEMBLY INSTRUCTIONS We have designed our furniture with you , the customer in mind . Our clear , easy to follow , step by step instructions will guide you through the project from start to finish . Feel confident that this will be a fun and rewarding project .
Page 2 Hardware List Camlock Cambolt Wood dowel Glue Sticker Allen Wrench Large Screw ( 6pcs ) ( 6pcs ) ( 8pcs ) ( 1pc ) (12pcs) (1pc) (6pcs) Panel List Top Panel Side Panel (1pc) (2pcs) Exploded Views Page 2 of 4...
Page 3 Assembling the unit with camlocks and wood dowels. Arrow must face hole Gently screw cam Lightly glue one end of Lightly glue wood dowel and Screw the camlock bolt into the the wood dowel and tap connect to second panel by ﬁrmly into locked threaded anchor.
Page 4 Step 3 1.Attach side panels to bottom panel as shown using large screws(E). 2.Place hole stickers (D) over screw holes. Step 4 1.Attach top panel to assembly as shown using camlocks (B) , gently tighten camlocks. 2.Place hole stickers (D) over screw holes. 3.Enjoy.
