5.9.3 VESA Mount
To mount the charging station next to a monitor on a medical cart, secure the cart VESA mount
bracket (CRA-MB7) to the monitor support beam on the cart first. The CRA-MB7 is compatible with
monitor size up to 27" (69 cm). It can be mounted with the bracket on either the left or right side of
the monitor. Thread the USB cable through one of the two cable exit holes on the bracket, and attach
the charging station onto the bracket using two screws supplied with the mounting bracket (Figure
10). Optional thumb screws (CRA-CR27-01) are available to attach the charging station without
using a screwdriver.
Please note: screws holding monitor in place may loosen over time and monitor may tilt to one side. If
that occurs, adjust the monitor position and tighten those screws.

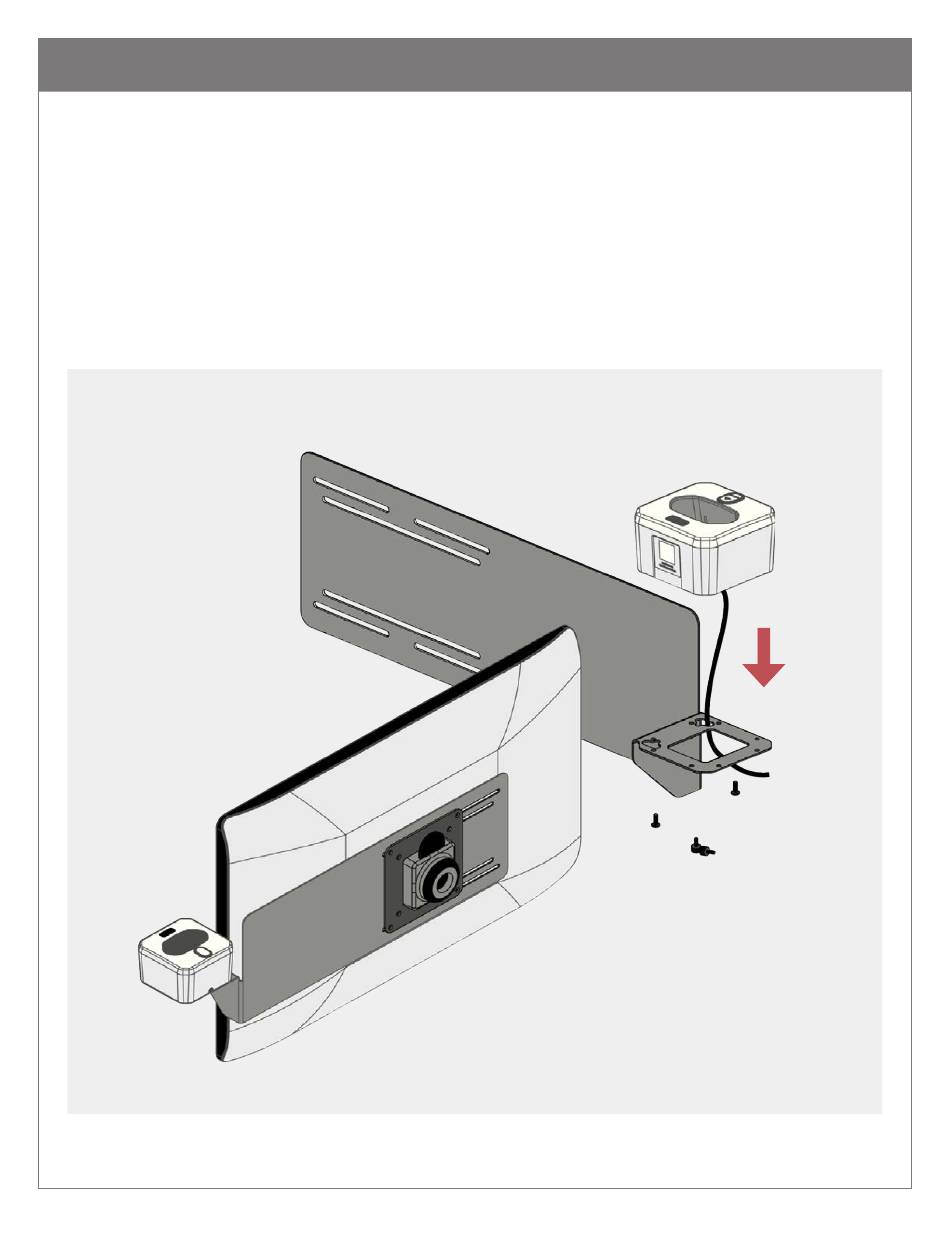

Figure 10: Install Charging Station with a VESA Mount CRA-MB7
(thumb screws are optional & sold seperately)
