5. Unpacking & Installation (continued)

5.8 Connecting Charging Station

Use only cables or power supplies provided by Code to ensure proper communication with the host and to
provide adequate voltage to charge the reader.
5.8.1 Insert the micro USB connector of the cable to the micro USB port on the bottom of the
charging station (Figure 7).
5.8.2 Run the cable along the cable routing guides on the bottom of the charging station. If the
charging station will be placed into a desktop base (CRA-MB6), the cable should exit through the
opening in the back of the charging station (see Figure 8). If the charging station will be mounted on
a wall mount bracket (CRAWMB4) or a VESA mount bracket (CRA-MB7), thread the cable through
one of the two cable exit holes on the bracket (see Figure 9 or 10).
Please note: the CRA-A271 may not charge consistently or at all when connected to a USB hub, even if
the hub is powered.

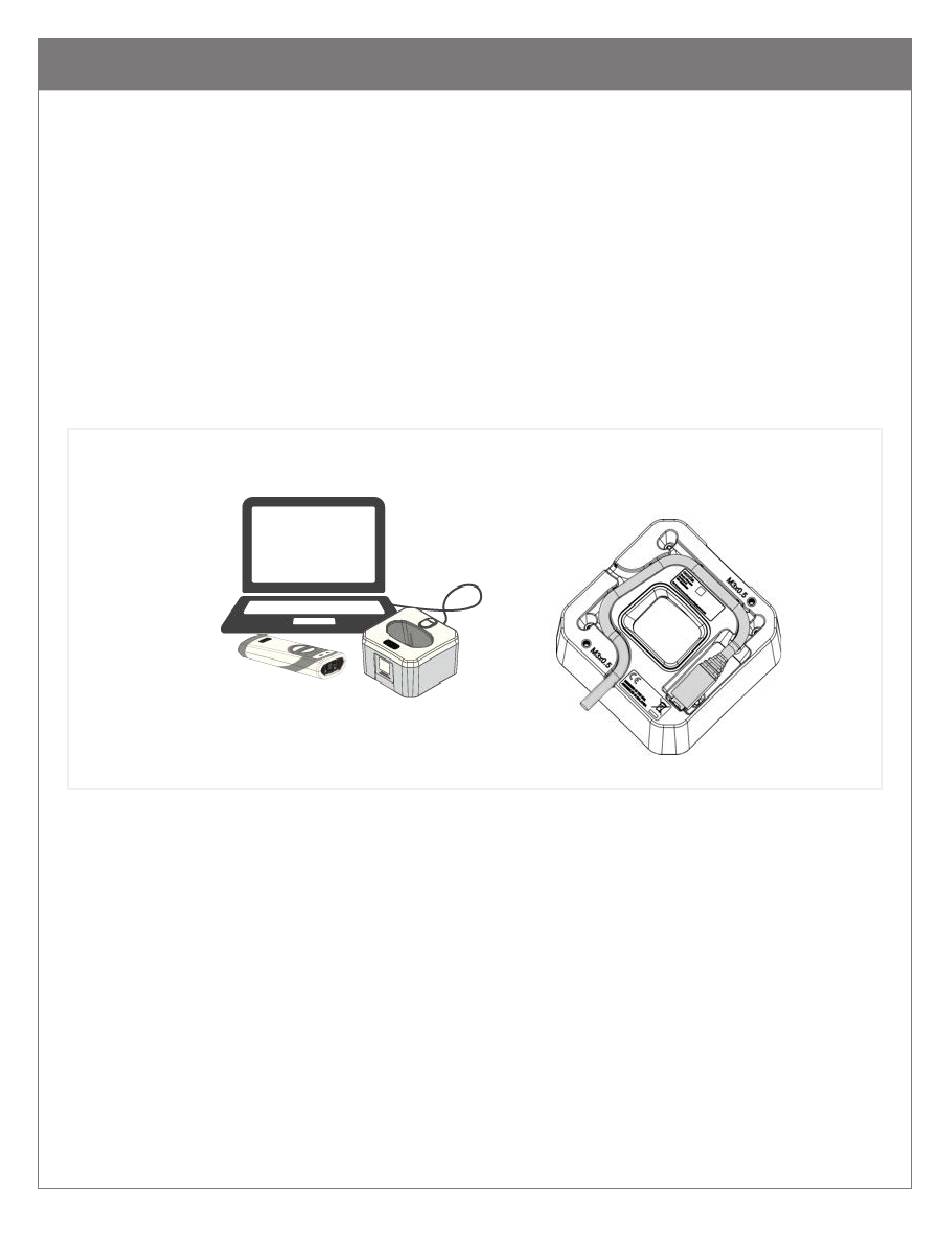

Figure 7: Connect Charging Station
