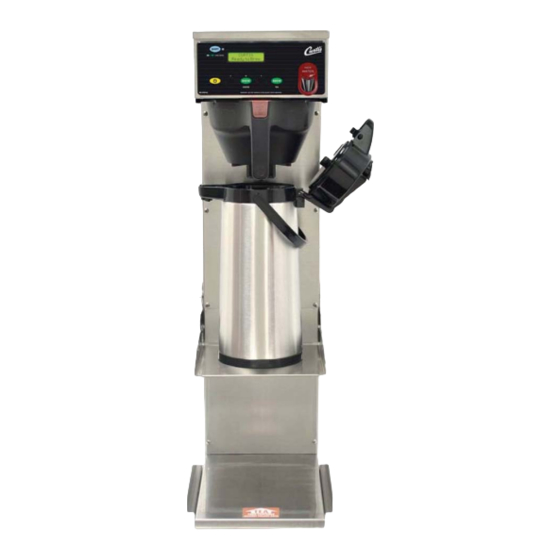

Curtis G3 User Manual

Tea/coffee combo brewer

Hide thumbs Also See for G3:

User manual (46 pages)

Specification sheet (4 pages)

Brochure & specs (4 pages)

Table Of Contents

Table of Contents

Quick Links

User manual

G3 Tea/Coffee Combo brewer

Coffee machine

English

Table of Contents

Need help?

Do you have a question about the G3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Curtis G3

Page 1 User manual G3 Tea/Coffee Combo brewer Coffee machine English...
Page 2 Introduction and general information Congratulations on the purchase of your Curtis Combo brewer. The Curtis G3 tea/coffee combo brewer is a combined appliance for the preparation of ﬁ lter coffee, iced coffee and iced tea from one model. Follow the User Manual CAUTION >...
Page 3 Model select ..............User manual Curtis G3 Tea/Coffee Combo brewer...
Page 4: Table Of Contents
Troubleshooting guide Troubleshooting Guidelines Safety and warranty Hazards to the coffee machine Directives Duties of the owner / operator Warranty claims Appendix: Technical data Technical data for coffee machine Appendix: Accessories and spare parts User manual Curtis G3 Tea/Coffee Combo brewer...
Page 5 > Follow all the safety instructions. General safety instructions Hazards to the operator At Curtis, safety is one of the most essential product features. The effectiveness of the safety devices can only be ensured if the following points are observed: >...
Page 6 Despite the safety devices, every coffee machine poses potential hazards if incorrectly used. Please observe the following instructions when using the coffee machine so as to prevent injury and health hazards: User manual Curtis G3 Tea/Coffee Combo brewer...
Page 7 Pull out the plug to do so. The person performing the maintenance or repair must always be able to check, with a clear line of sight, that the power supply has been disconnected. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 8 > Do not touch the spouts immediately after dispensing. > Always place an appropriate cup under the spout before dispensing a beverage. > Let the brew basket and the thermal container cool down before cleaning. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 9 Health hazard CAUTION > Only use products that are suitable for consumption and for use with the coffee machine. > The brew basket may only be ﬁ lled with materials for the use intended. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 10 • Fluids can be discharged from the coffee machine if used improperly or if errors occur. These ﬂ uids can cause a slipping hazard. > Regularly check the coffee machine for leaks, and make sure no water is coming out. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 11 > The coffee machine must only be used as intended. • The Curtis G3 tea/coffee combination brewer is designed to dispense single, simple brewing solutions for iced tea and gourmet coffee. • The ground coffee or the tea leaves used must be suitable for processing in the coffee machine.
Page 12 Water supply On site: • Water connection 3/8“ • Water pressure 0,14 - 0,62 MPa • Min. ﬂ ow rate 3.8 l / min User manual Curtis G3 Tea/Coffee Combo brewer...
Page 13 The work must be carried out by authorised installation technicians in compliance with general, country-speciﬁ c and local regulations. The Curtis Service engineers must only connect the coffee machine to existing prepared connection points. Curtis Service is neither authorised nor responsible for carrying out any on-site installation work prior to connection.
Page 14 • A water ﬁ ltration system is required to maintain trouble-free operation. Wilbur Curtis Co., Inc. recommends a Wilbur Curtis approved water ﬁ lter. • Potable water supply line connection from the water ﬁ lter capable of supplying the minimum ﬂ...
Page 15 Safety The water line should also be capable of being controlled by a shut off valve. Do not connect the water line to a saddle valve or needle valve. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 16 Introduction | Parts of the combo brewer Introduction Parts of the combo brewer Control module Programming Control Module COFFEE Software starting on page 24 User manual Curtis G3 Tea/Coffee Combo brewer...
Page 17 Scroll DOWN Brew button Tea The pads and buttons on the display are available, depending on the settings and the machine model. The functions shown here are examples. Software  starting on page 24 User manual Curtis G3 Tea/Coffee Combo brewer...
Page 18 • to the installation location  starting on page 49 > Always follow the User Manual. Technical data  starting on page 58 Note / tip NOTE • Instructions for safe use and tips for easier operation. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 19 Quoted in °dKH. The water hardness is a measure of the calcium dissolved in the drinking water. Decaf Decaffeinated coffee FreshTrac® Überwachung des Frischegrads des Kaffees SB mode Self-service customer operation (self-service mode) Universal Control module User manual Curtis G3 Tea/Coffee Combo brewer...
Page 20 Health hazard CAUTION • Only use products that are suitable for Follow the Safety chapter consumption and for use with the coffee  starting on page 5 machine. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 21 ﬁ lter, tubing and water tank 6 If the unit is equipped with a hot water faucet, ﬁ ll a coffee cup with hot water to purge air from the hot water line. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 22 “Brewing” appears on the display. Note • DO NOT refrigerate unused tea overnight for later consumption. • The G3 Combo Brewer is factory preset for optimal performance. 6 The brewer should be ON. Conﬁ rm this at the rear toggle switch. “Ready to brew”...
Page 23 6 Press the brew button. Brewing will begin immediately. The brewer will brew coffee based on the settings programmed into the universal control module (UCM). Change settings  P rogramming guide page 25 User manual Curtis G3 Tea/Coffee Combo brewer...
Page 24 6 Then press and release ON/OFF button. Continue to hold down BREW button until Enter Code appears. 6 Enter 4 digit code. Factory default = 1-2-3-4. You are now in the programming mode. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 25 Select Select Access Code Exit Safety SW On/Off Tea Pulse Brew Select Select Select Select Temperature Banner Name Tea Fast Brew Select Select Select Energy Save Mode P-Maintenance Tea Drip-Out Select Select Select User manual Curtis G3 Tea/Coffee Combo brewer...
Page 26 Tea Dilut. Delay - sets the delay until tea dilution begins. Once accessed ( ), press the BREW button for which the dilution delay needs to be changed (SHIFT+BREW selects half batch on some models). Press User manual Curtis G3 Tea/Coffee Combo brewer...
Page 27 On or Off (SHIFT+BREW selects half batch on some models). Press to save. If On is selected, subsequent screens will appear to adjust the Pulse Count, On Time and Off Time. Press User manual Curtis G3 Tea/Coffee Combo brewer...
Page 28 Press the same BREW button again to start. When the desired volume is reached, press the BREW button again to stop the ﬂ ow. The volume has been set. Press to display the subsequent menu features. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 29 Once accessed ( ) press the BREW button for which Pulse Brew needs to be changed. Press to select the desired setting (see guidelines below for information on various settings). Press to save. Press to display the subsequent menu features. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 30 - High-yield coffees typically extract better with the C pulse setting. Of course, any of the A, B or C settings may be used to suit your taste proﬁ le. - Settings D and E are manual pulse counts. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 31 Brew Count Odom - When accessed, this feature displays the total brew cycles since the odometer was last reset. Press to go back without resetting or to reset. Press to display the subsequent menu features. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 32 Press to select the next number to change. When done, press until ex ﬂ ashes on the display and press . Press to display the subsequent menu features. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 33 ﬂ ashes on the display. Once accessed ( ), press to increase or decrease the amount of time. The range is Off to 10 hours. Press to save. Press display the subsequent menu features. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 34 Once accessed ( ), press until the model number matching the model number label on the brewer appears, then press . The UCM will reset and exit programming mode. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 35: Care
• Germs can multiply in a coffee machine that Follow the Safety chapter is not in use.  starting on page 5 > Prior to and after every instance that the machine is shut off for several days, perform all cleanings. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 36: Cleaning Intervals Overview
Cleaning the Airpot/Pour Pot  p age 40 Cleaning the Tea Dispenser  p age 42 x Clean the combo brewer Daily = Daily, at least once per day and as required Weekly = Weekly cleaning User manual Curtis G3 Tea/Coffee Combo brewer...
Page 37: Daily Cleaning
Use a clean, soft cloth to dry. 6 Dump out the drip tray(s) (if applicable). Rinse with clean water, then dry with a soft, clean cloth. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 38: Cleaning The Airpot/Pour Pot
Swab, brush or pressure spray the sanitizing solution according to the directions on the package 6 Air Dry - Turn the airpot and lid upside down. Allow all parts to air dry. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 39: Cleaning Pour Pots
FreshTrac® feature. Keep this stem free from coffee oil build-up for proper operation. After cleaning, inverting the lid for 30 seconds resets the FreshTrac timer. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 40: Cleaning The Tea Dispenser
Immerse them in a commercial sanitizer suitable for food grade applications. Sanitize according to the directions on the package 6 Air Dry - Allow all parts to thoroughly air dry. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 41 Care | Daily cleaning 6 Reassemble - When dry, reassemble the handle/ bonnet. Hand tighten the handle/bonnet onto the top of the faucet assembly. Hand-tighten the faucet assembly onto the dispenser outlet. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 42: Weekly Cleaning
Rinse the area with a cloth soaked with clean water, removing any residual detergent. 6 Dry the area with a soft, clean cloth. 6 Reattach the spray head(s). User manual Curtis G3 Tea/Coffee Combo brewer...
Page 43: Haccp
If care and cleaning is not carried out properly, dispensing beverages will constitute a food hygiene hazard point. Observe the cleaning intervals as speciﬁ ed in the operating instructions, cleaning manual and cleaning concept. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 44 HACCP cleaning schedule | Weekly cleaning User manual Curtis G3 Tea/Coffee Combo brewer...
Page 45: Maintenance And Descaling
Montebello, CA 90640 USA Technical service: Phone: +1 800-995-0417 Mail: techsupport@wilburcurtis.com www.wilburcurtis.com In Europe, please contact the Curtis service partner who installed the device. If this is not known WMF Service headquarters Germany: Phone: + 49 (0) 7331 25 7257 Mail: kundencenter@wmf.de...
Page 46: Troubleshooting Guide
Disconnect power when replacing components. Lock out and tag the circuit breaker on units without a power plug. Neither Wilbur Curtis Co., Inc. nor the seller can be held responsible for the interpretation of this information, or any liability in connection with this use.
Page 47 6 Check to make sure the water supply is turned on. Check for a clogged water supply line, water ﬁ lter or plugged inlet valve. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 48 5 seconds, then back ON. 6 Check to make sure that the ﬂ ow rate from the water supply line meets the minimum ﬂ ow rate speciﬁ cations for the brewer. Also check the water pressure. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 49: Safety And Warranty
> Set up the coffee machine so that it is protected against water spray. > Always place the coffee machine on a water- resistant and heatproof base in order to protect the installation surface against damage. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 50 • For drinking water with carbonate hardness from 9 °dKH or higher, a Curtis water ﬁ lter must be ﬁ tted. Failing to use the water ﬁ lter recommended by Curtis Service may damage the coffee machine (e.g. due to scale deposits).
Page 51: Directives
Requirements traceability pursuant to EC regulation For disposal please contact No. 1935/2004 and Good Manufacturing Practice Cutis Service. within the meaning of EC regulation No. 2023/2006 are Address  page 45 ensured and guaranteed. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 52: Duties Of The Owner / Operator
These measures are conducted by Curtis Service or by Curtis authorised service personnel as part of the maintenance work. Machine cleaning must be carried out using only the Curtis special cleaning agent intended by Curtis for the coffee machine (cleaning granulate).
Page 53: Warranty Claims
Curtis equipment that have not been purchased from Wilbur Curtis Co., Inc. Wilbur Curtis Co., Inc. will not accept any responsibility if the following conditions are not met. The warranty does not cover: •...
Page 54 The manufacturer is not responsible for variation in equipment operation due to excessive lime or local water conditions. The equipment must be maintained according to the manufacturer’s recommendations. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 55 Important modiﬁ cations undertaken without the consent of Maintenance  page 45 Curtis, or by repair or reconditioning work on the part of the purchaser or by third parties. • With respect to faults caused by inappropriate or improper use.
Page 56: Appendix: Technical Data
The device must be installed where it is protected against water spray. The device must not be located on a surface that is sprayed or cleaned with a water hose, steam jets, steam cleaner, or similar devices. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 57 We reserve the right to make technical modiﬁ cations. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 58 If the machine is intended to be installed in a large kitchen, it is recommended that it be equipped with a ground potential bonding conductor. The potential equalisation terminal is installed by Curtis Service if needed. User manual Curtis G3 Tea/Coffee Combo brewer...
Page 59: Appendix: Accessories And Spare Parts
WATER FILTER 10“ CURTIS 03.6010.1329 CSC10AC00 Curtis customer care program Special cleaning powder, 1,000g 33.0680.9000 Measuring spoon large 33.0742.3000 Clean-A-Bowl 33.6010.1164 CAB-1 (Cleaning brush for cans) Java Jug Airpot 33.6010.1178 JB-1 (Cleaning brush for Airpot) User manual Curtis G3 Tea/Coffee Combo brewer...
Page 60 No part of this manual may be reproduced in any form or processed, duplicated, or distributed using electronic systems without written consent. Design and production / typesetting and print presentation: WMF Group GmbH; Geislingen Original User Manual. Printed in Germany. We reserve the right to make technical modiﬁ cations. 05.02.2020 G3 Tea/Coffee Combo brewer...
