Page 1: Troubleshooting Guide

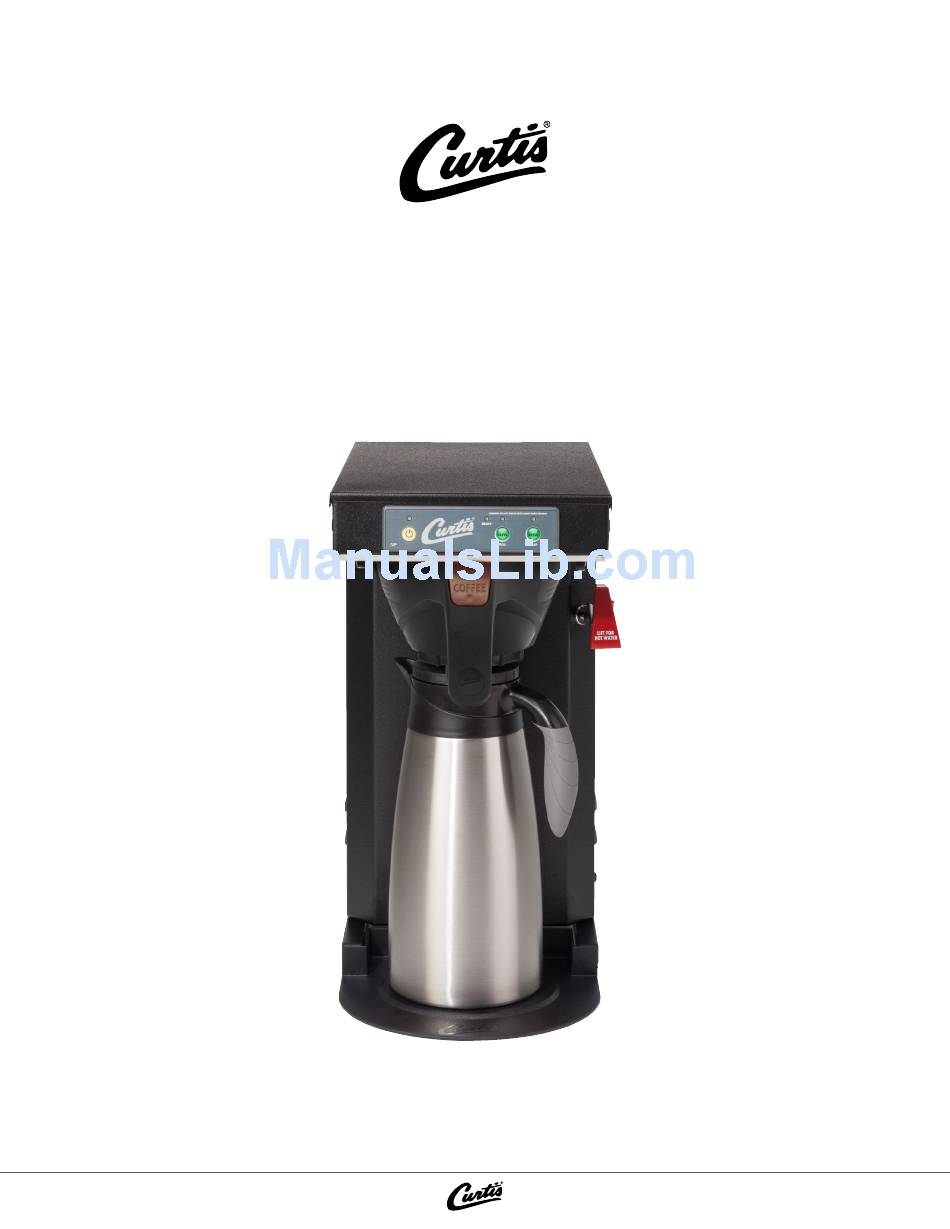

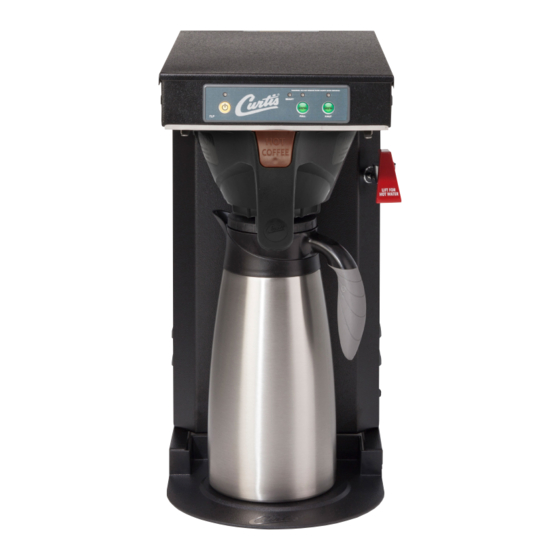

G3 LOW PROFILE AIRPOT BREWER TROUBLESHOOTING GUIDE Service & Sales www.wilburcurtis.com 1-800-421-6150... - Page 2 Service & Sales www.wilburcurtis.com 1-800-421-6150...
- Page 3 BREWER PARTS IDENTIFICATION PART # DESCRIPTION PART # DESCRIPTION 1. WC-2962-101K KIT, FITTING SPRAYHEAD KYNAR 9. WC-5310 TUBE, 5/16 ID x 1/8W SILICONE 2. WC-717 CONTROL BOARD, SMART CARD SWITCH PANEL 10. WC-43062 GASKET, TANK 3. WC-29030 SPRAYHEAD ASSY, ADVANCED FLOW ORANGE 11.
-
Page 4: Parts Images
PARTS IMAGES WC-2962-101K WC-717 WC-29030 KIT, FITTING SPRAYHEAD KYNAR CONTROL BOARD SPRAYHEAD ASSY, ORANGE WC-715 WC-102 WC-1040 CONTROL MODULE TOGGLE SWITCH WATER PUMP WC-1809 WC-826L WC-5310 FAUCET, HOT WATER VALVE INLET SILICONE TUBE WC-43062 WC-5502-01 WC-917-04 GASKET, TANK KIT, PROBE, O-RING & NUT ELEMENT, HEATING WC-523 WC-1438-101... -
Page 5: Troubleshooting Instructions
TROUBLESHOOTING INSTRUCTIONS POWER ISSUES The unit will not turn on: STEP 1. Verify that the panel breaker is turned STEP 6. Verify the voltage at the toggle switch, it should read: 120v between each terminal + neutral. STEP 2. Verify voltage at the receptacle reads: (L1-N = 120v, N-G = 0v). - Page 6 TROUBLESHOOTING INSTRUCTIONS - continued TANK FILLING ISSUES Not filling: Overfilling: “Ready to Brew” light flashes 3+1 (Water Level Turn OFF toggle switch. Error Code) STEP 1. Does the tank continue to fill? STEP 1. Verify the flow rate to be a minimum of 1 GPM from outlet of the water filter.
- Page 7 NOTES __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ Service & Sales www.wilburcurtis.com 1-800-421-6150...
- Page 8 Wilbur Curtis Co., Inc. 6913 Acco Street, Montebello CA 90640 Customer Service: 800.421.6150 | 323.837.2300 csrassistance@wilburcurtis.com Tech Support: 800.995.0417 www.wilburcurtis.com JUN/2017 M275_TS_WC_TLP_revNC...
