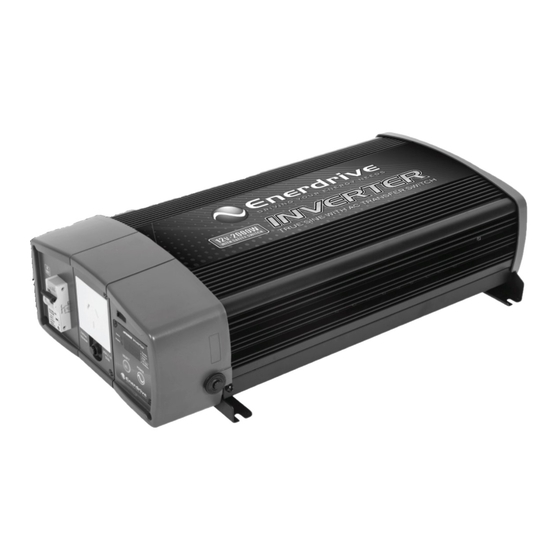

Enerdrive DOMETIC EN1120S-X User Manual

Hide thumbs

Table Of Contents

Quick Links

Download this manual

TRUE SINE WITH AC TRANSFER SWITCH

User Manual

EN1120S-X / EN112OS-X-24V / EN1226S-X

Rev. 1.3

Table of Contents

Need help?

Do you have a question about the DOMETIC EN1120S-X and is the answer not in the manual?

Questions and answers

Summary of Contents for Enerdrive DOMETIC EN1120S-X

Page 1 TRUE SINE WITH AC TRANSFER SWITCH User Manual EN1120S-X / EN112OS-X-24V / EN1226S-X Rev. 1.3...
Page 2 Enerdrive Inverter owner’s manual © 2022 Dometic Power & Control (Enerdrive) Pty Ltd. All rights reserved. No part of this document may be reproduced in any form or disclosed to third parties without the express written permission of Enerdrive Pty Ltd, P.O. Box 9159, Wynnum Plaza, Queensland, Australia 4178.
Page 3: Table Of Contents
Appendix 1 ........................ Page 24 Appendix 2 ........................ Page 25 1 PRODUCT DESCRIPTION The Enerdrive Inverter package includes the items list below. • Inverter base unit (one of the following models) • EN1120X ....2000W 12v Inverter With AC Transfer & Safety Switch •...
Page 4: Introduction
TRUE SINE WITH AC TRANSFER SWITCH 2 INTRODUCTION Thank you for purchasing the Enerdrive Inverter. With our state of the art, easy to use design, this product will o er you reliable service for providing AC power and 5V USB power for your home, boat, caravan, 4WD or commercial vehicle.
Page 5 WARNING! Explosion Hazard • DO NOT use the Enerdrive Inverter in the vicinity of ammable fumes or gases (such as gas bottles or petrol engines or battery compartments). • AVOID covering the ventilation openings. Always operate unit in an open area.
Page 6: Installation
CAUTION Before beginning your Enerdrive Inverter installation, please consider the following: • The Enerdrive Inverter base unit should be used or stored in an indoor area away from direct sunlight, heat, moisture or conductive contaminants. • When placing the unit, allow a minimum of 75mm of space around the unit for optimal ventilation.
Page 7 • The use of deep cycle battery is highly recommended for power inverter application. • For battery size, you need to identify how much you will be using them between charges. Enerdrive recommends you purchase as much battery capacity as possible. See more on Battery Run time and Load in Section 4.
Page 8 • Use inverter mounting tabs as a template guide for mounting holes. • Drill the 4 mounting holes and place the inverter in position and fasten the inverter to the mounting surface. EN1120X & EN1120X-24V 444mm 230mm 317.40mm EN1126X 539mm 431mm 230mm Enerdrive Inverter Owners Manual (Rev. 1.3) Page 8...
Page 9 DC Input and Grounding Cable: • All DC cables require insulated multi-strand low resistance cable. • The DC cables must be copper and must be rated 105º minimum Model Minimum Wire Size Recommended cable size between DC source and inverter 12v-2000W Unit 70mm <...
Page 10 AC Input source and unit’s AC Input port. Important: Follow the local electrical and/or building code when you connect the unit to any AC source. Enerdrive Inverter Owners Manual (Rev. 1.3) Page 10...
Page 11 Residual Current Device (RCD Safety Switch) This inverter is tted with a Residual Current Device (RCD Safety switch as standard). The Residual Current Device (RCD) switch detects if there is an earth leakage fault and will automatically disconnect all output power sockets protecting the user from electrocution. Meets Australian Standards for AS4763 (portable inverters) and AS3001 (caravan installation) The inverter has a Mains Earth Neutral (M.E.N) connection permanently installed on the inverter side of the AC Transfer switch.
Page 12: Feature Setting
Battery under-voltage setting is set to LOW (setting used for normal operation) Under-voltage alarm: ....... 11.0 Vdc Under-voltage alarm recovery: ..... 11.3 Vdc Under-voltage shutdown: ...... 10.5 Vdc Under-voltage shutdown recovery: ..12.0 Vdc Enerdrive Inverter Owners Manual (Rev. 1.3) Page 12...
Page 13 Battery under-voltage setting is set to HIGH (setting to avoid battery over discharge when connected to car start battery) Under-voltage alarm: ......... 12.1 Vdc Under-voltage alarm recovery: ....12.3 Vdc Under-voltage shutdown: ......11.8 Vdc Under-voltage shutdown recovery: ..12.6 Vdc Alarm Setting Fault and the warning audible alarm is disabled.
Page 14: Unit Operation
Error is detected and unit has shutdown. Please check error code to troubleshoot the unit. Status LED Display LED Display Function/Status By-Pass Mode. Display shows battery voltage Green (solid) Green ’12.5’ in DC volts Enerdrive Inverter Owners Manual (Rev. 1.3) Page 14...
Page 15 Battery/Inverter Mode. Inverter is running. Green ‘12.5’ Display shows battery voltage in DC volts Amber (solid) Battery/Inverter Mode. Inverter is running, Amber ‘0.80’ Display shows output power in kW (800W as shown) Battery (Inverter) Mode and AC Input is detected and unit will switch to By- Pass mode within 20 seconds Unit has shutdown.
Page 16 49 mins 1 hr 1.5 hrs 2000 W N.R. 15 mins 34 mins 49 mins 1 hrs 2600 W N.R. 11 mins 25 mins 37 mins 49 mins Note: N.R. - Not Recommended Enerdrive Inverter Owners Manual (Rev. 1.3) Page 16...
Page 17: Troubleshooting
6 TROUBLESHOOTING Understanding the Error Code Code Condition Corrective Action When unit is in Battery (Inverter) mode, Recharge the battery immediately and Input battery voltage is too low and AC restart unit. Make sure the battery is Output is shutdown. connected to the unit.
Page 18 LEDs stay working for about 30 sec is available. only. With this setting, the unit will provide AC Output Power only when the AC Input Power is available. Enerdrive Inverter Owners Manual (Rev. 1.3) Page 18...
Page 19 Charge and/or connect the battery bank or The unit is normal. disable all the audible alarms with the “AL0” setting when AC backup is not required. The alarms indicate the battery voltage is low or the battery is not connected. Note: The main purpose of the internal trickle “E01”...
Page 20 “SdH” setting under-voltage shutdown threshold to low values setting (“SdL” - factory default setting) rather than the “SdH”. Enerdrive Inverter Owners Manual (Rev. 1.3) Page 20...
Page 21 A short (7”) RJ12 cable is used when the detachable display panel is mounted on the unit (factory default). Alternatively a long RJ12 cable is provided for installing the display panel up to Loose contact or pin-out problems in the RJ12 7.5m away.
Page 22 5 - 90% non-condensing Operating Altitude Up to 3000 meters above sea level Weights and Dimensions Weight 5.9 kg 5.9 kg 7.0 kg Dimensions (W x L x H) 435x230x115 560x230x115 Warranty 5 Years Enerdrive Inverter Owners Manual (Rev. 1.3) Page 22...
Page 23: Warranty
Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions, as described in the complete Enerdrive Warranty Policy) for up to 5 years from the date of purchase.
Page 24 Press ‘Select’ sec to set selected Factory Default for 1 sec setting and exit to next menu setting Press ‘Power’ for 1 sec to next menu EXIT Function Menu Function Set Menu Enerdrive Inverter Owners Manual (Rev. 1.3) Page 24...
Page 25: Appendix Ii
APPENDIX II Detachable Display Panel Cable: The display panel is detachable and can be installed away from the unit, using the provided 7.5m RJ12 cable. You will need to remove the two screws indicated below. Even though the unit can operate with the cable plugged in whatever direction, we suggest plugging the end with the ferrite bead EMI/RFI lter into the main unit.
Page 26 TRUE SINE WITH AC TRANSFER SWITCH NOTES: Enerdrive Inverter Owners Manual (Rev. 1.3) Page 26...
Page 27 Dometic Power & Control (Enerdrive) Pty Ltd PO Box 9159, Wynnum Plaza, Queensland Australia, 4178 Ph: 1300 851 535 / Fax: 07 3390 6911 Email: sales@enerdrive.com.au Web: www.enerdrive.com.au...
