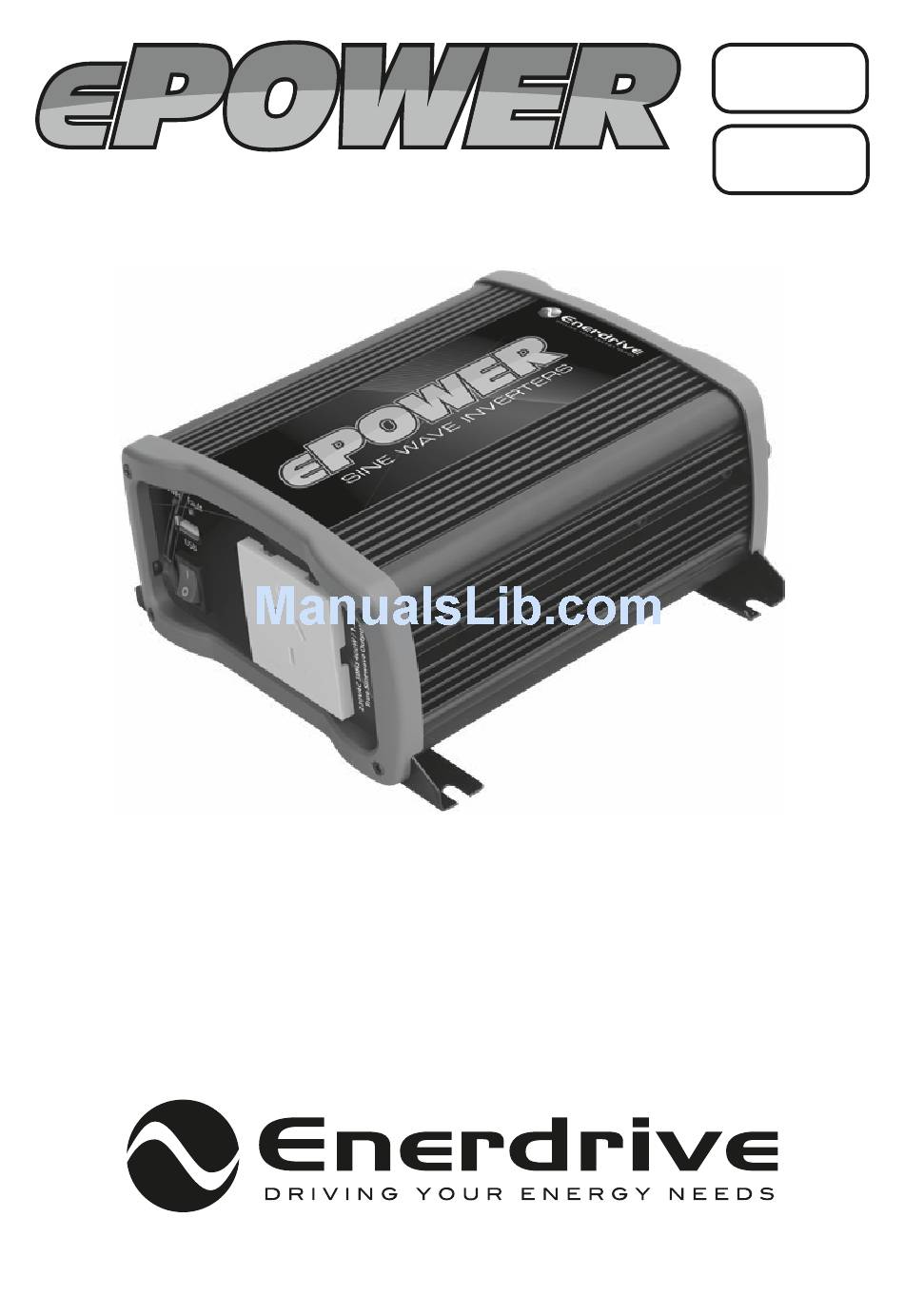

- Page 1 400W 500W TRUE SINE WAVE INVERTERS User Manual EPOWER 400W/12V INVERTER EPOWER 500W/24V INVERTER ePOWER Inverter 400W/500W User Manual Rev 2.0...
- Page 2 PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE Disclaimer While every precaution has been taken to ensure the accuracy of the contents of this guide, Enerdrive assumes no responsibility for errors or omissions. Note as well that specifications and product functionality may change without notice.
-
Page 3: Table Of Contents
Table of Contents 1. INTRODUCTION 2. PRODUCT DESCRIPTION 3. INSTALLATION 4. UNIT OPERATION 5. TROUBLESHOOTING 6. SPECIFICATIONS 7. WARRANTY Page 3... -
Page 4: Introduction
• Unit provides 230 VAC, treat the AC output socket the same as regular wall AC sockets at home. WARNING: Explosion hazard! • DO NOT use the Enerdrive ePOWER Inverter in the vicinity of flammable fumes or gases (such as gas bottles or large engines). -
Page 5: Product Description
CAUTION: Before beginning your Enerdrive ePOWER Inverter installation, please consider the following: • The Enerdrive ePOWER Inverter base unit should be used or stored in an indoor area away from direct sunlight, heat, moisture or conductive contaminants. - Page 6 • The use of deep cycle battery is highly recommended for power inverter application • For battery size, you need to identify how long you wish to operate the load(s). Enerdrive does recommend that you purchase as much battery capacity as possible. See more on “Estimated Run time and Load”...
- Page 7 Installing the Enerdrive ePOWER Inverter System WARNING: Electrical Shock Hazard The unit ‘On/Off’ switch does not disconnect the DC power from the battery. Use the DC Disconnect Switch or disconnect the DC input cables connection to disconnect the DC power from the battery before working on any circuits connected to the unit.
-
Page 8: Unit Operation
• Unit is ready for use. Testing the Power Inverter: • Turn unit on by using the On/Off button on the unit. The ‘Power’ light turns on indicating the Enerdrive Power Inverter is ON. AC output is now available. • Plug in a small AC load like a 25W table lamp or small appliance to the AC socket to verify AC is available. -
Page 9: Troubleshooting
AC Load on Power Inverter Although the Power Inverter can provide high surge power up to two times the rated output power, some appliances may still trigger on the inverter protection system. A higher power inverter is required for those appliances. -
Page 10: Specifications
-20º to 60º Relative Humidity 5 - 90% non-condensing Operating Altitude Up to 2000m above sea level Weights and Dimensions Weights 1.73 kg Dimensions (LxWxH) 312 x 175 x 87mm Page 10 Enerdrive ePOWER 400W - 500W Owners Manual Rev: 2.0... -
Page 11: Warranty
Enerdrive within 30 days of the date of purchase will be replaced free of charge. If such a unit is returned more than 30 days but less than two years from the purchase date, Enerdrive will repair the unit or, at its option, replace it, free of charge. If the unit is repaired, new or reconditioned replacement parts may be used, at manufacturer’s option. - Page 12 Unit 11, 1029 Manly Road Tingalpa, Queensland, Australia 4173 Ph: 1300 851 535 Fax: 07 3390 6911 Email: sales@enerdrive.com.au www.enerdrive.com.au...
