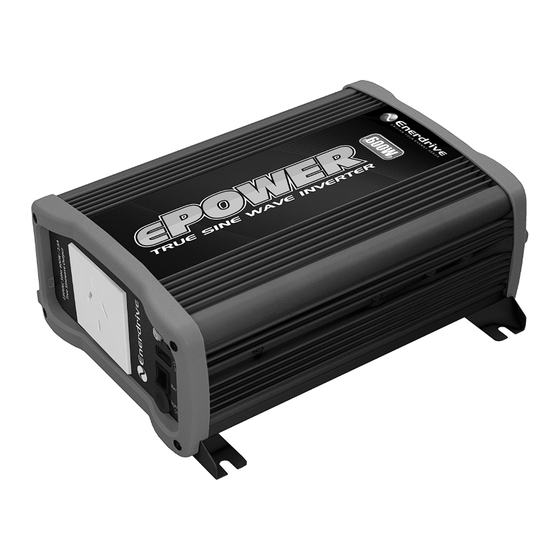

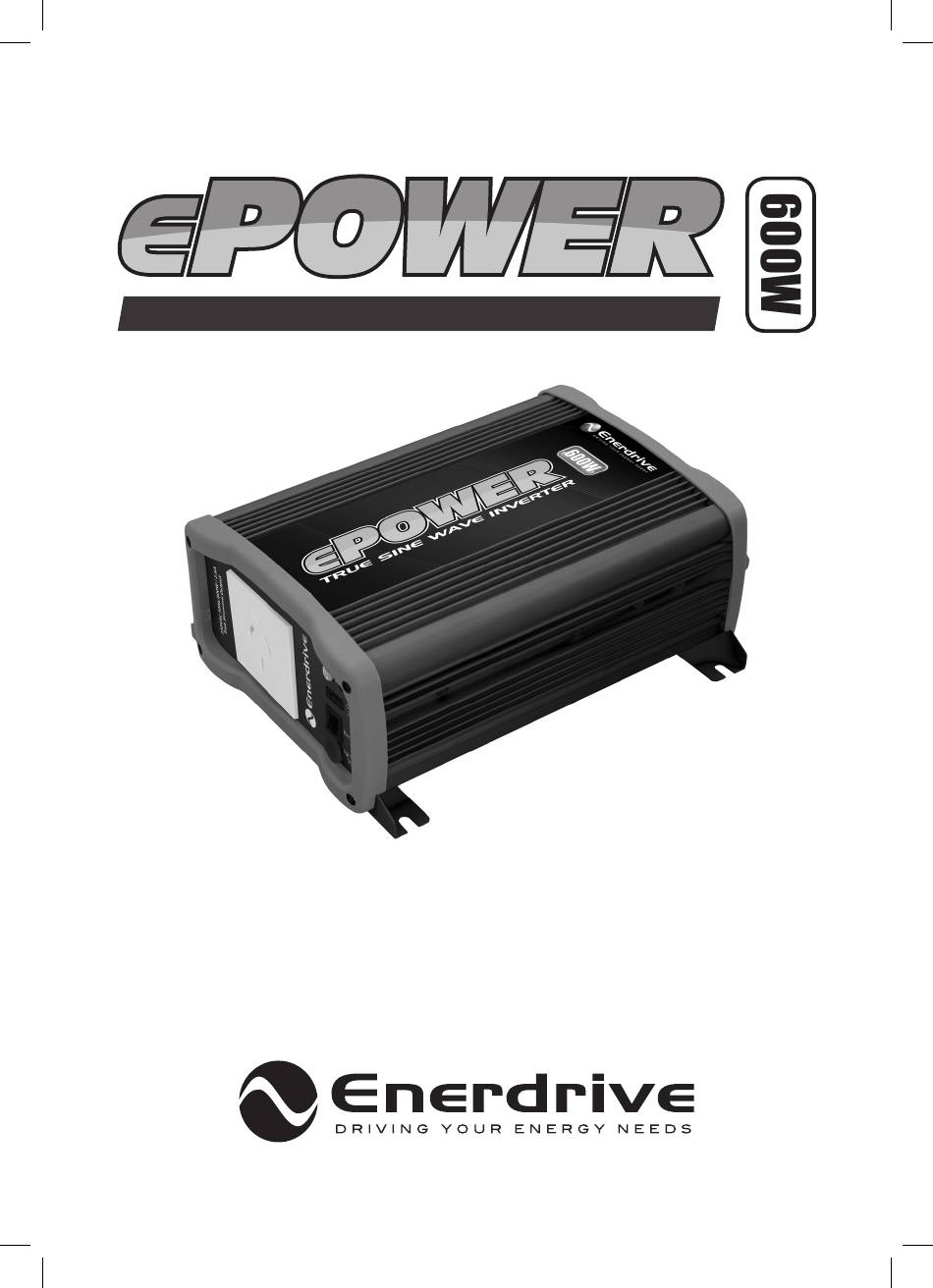

TRUE SINE WAVE INVERTER User Manual ePOWER 12V 600W INVERTER Rev. 1.5...
Page 2
Important Please be sure to read and save the entire manual before using your Enerdrive ePOWER Inverter. Misuse may result in damage to the unit and/or cause harm or serious injury. Read manual in its entirety before using the unit and save manual for future reference.
IMPORTANT SAFETY INFORMATION: 2. Product Description 3. Features Understanding the unit features: Material Preparation for Installation: ePOWER Inverter DC Input Connection: 5. Testing the Power Inverter: 6. Unit Operation Turn ON and OFF the unit: Understanding the ‘Power Save’ function Understanding the ‘Status’...
• Unit provides 230 VAC, treat the AC output socket the same as regular wall AC sockets at home.. WARNING: EXPLOSION HAZARD! • DO NOT use the Enerdrive ePOWER Inverter in the vicinity of flammable fumes or gases (such as gas bottles or large engines).
• Inverter is not to be used by persons with reduced physical or mental capabilities or lack of knowledge and experience. Not to be operated or used by children. 2. Product Description The Enerdrive ePOWER Inverter package includes the items list below. • ePOWER Inverter base unit •...
3. Features WARNING • Enerdrive recommends that all wiring be done by a certified technician or electrician to ensure adherence to the applicable electrical safety wiring regulations and installation codes. Failure to follow these instructions can damage the unit and could also result in personal injury or loss of life.
• Reversing the DC Input terminal will damage the unit and cannot be repaired. Damage caused by reverse polarity connection is not covered by the warranty. Material Preparation for Installation: Typical Wiring block diagram of the Enerdrive ePOWER Inverter: Fuse or Circuit...
Page 8
The use of deep cycle battery is highly recommended for power inverter application • For battery size, you need to identify how long you wish to operate the load(s). Enerdrive does recommend that you purchase as much battery capacity as possible. See more on “Estimated Run time and Load”...
184 mm ePOWER Inverter DC Input Connection: CAUTION • Reversing the DC Input terminal will damage the unit and cannot be repaired. Damage caused by reverse polarity connection is not covered by the warranty. Hardwired Direct Connection: • Make sure the main fuse is not connected or breaker is switched off.
• Turn unit on by using the On/Off button on the unit. The ‘Power’ light turns on indicating the Enerdrive Power Inverter is ON. AC output is now available. • Plug in a small AC load like a 25W table lamp or small appliance to the AC socket to verify AC is available.
Understanding the ‘Status’ indicator Function ‘Status’ Indicator Condition Solid Green Unit is normal and continuous AC Output is available Power Save Function Solid Green with alarm beep Unit is detected with either DC Over/Under Voltage ‘OFF’ every 2 seconds or Over Temperature warning and continuous AC Output is still available Power Save Function Flashing Green...
Although the Power Inverter can provide high surge power up to two times the rated output power, some appliances may still trigger on the inverter protection system. A higher power inverter is required for those appliances. Page 12 Enerdrive ePOWER Inverter 600W 12V Owners Manual Rev: 1.5...
Estimate Run time on Load: The following run times are an estimate based on using a 12V-120AH battery bank for 12V systems. Actual run time may vary. Load Consumption Estimate Run time Cordless Phone 150 hrs Clock/Radio 100 hrs Table Lamp 40W / 60W 27 hrs/ 18 hrs Freezer (249 Litre)
-20ºc to 60ºc Relative Humidity 5 - 90% non-condensing Weights and Dimensions Weights 2.0 kg Dimensions 237 x 175 x 89mm Note: Specifications are subject to change without notice. Page 14 Enerdrive ePOWER Inverter 600W 12V Owners Manual Rev: 1.5...
Any defective unit that is returned to Enerdrive within 30 days of the date of purchase will be replaced free of charge. If such a unit is returned more than 30 days but less than two years from the purchase date, Enerdrive will repair the unit or, at its option, replace it, free of charge.
