  • Page 1 Owner’s Manual ePOWER Inverter With AC Transfer & Safety Switch EN1120X / EN1120X-24v / EN1126X...
  • Page 2 PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE Disclaimer While every precaution has been taken to ensure the accuracy of the contents of this guide, Enerdrive assumes no responsibility for errors or omissions. Note as well that specifications and product functionality may change without notice.

  • Page 3: Table Of Contents

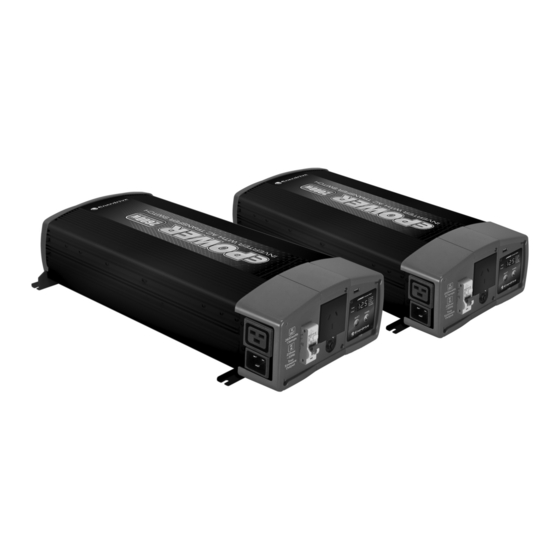

    The Enerdrive ePOWER Inverter package includes the items list below. • ePOWER Inverter base unit (one of the following models) • EN1120X ....2000W 12v ePOWER Inverter With AC Transfer & Safety Switch • EN1120X-24v ..2000W 24v ePOWER Inverter With AC Transfer & Safety Switch •...

  • Page 4: Introduction

    2 INTRODUCTION Thank you for purchasing the Enerdrive ePOWER Inverter. With our state of the art, easy to use design, this product will offer you reliable service for providing AC power and 5V USB power for your home, boat, caravan, 4WD or commercial vehicle. The Enerdrive ePOWER Inverter can run many AC powered appliances when you need AC power anywhere.
  • Page 5 • Unit provides 230 VAC, treat the AC output socket the same as regular wall AC sockets at home. WARNING! Explosion Hazard • DO NOT use the Enerdrive ePOWER Inverter in the vicinity of flammable fumes or gases (such as gas bottles or petrol engines or battery compartments).

  • Page 6: Installation

    CAUTION Before beginning your Enerdrive ePOWER Inverter installation, please consider the following: • The Enerdrive ePOWER Inverter base unit should be used or stored in an indoor area away from direct sunlight, heat, moisture or conductive contaminants. • When placing the unit, allow a minimum of 75mm of space around the unit for optimal ventilation.
  • Page 7 • The use of deep cycle battery is highly recommended for power inverter application. • For battery size, you need to identify how much you will be using them between charges. Enerdrive recommends you purchase as much battery capacity as possible. See more on Battery Run time and Load in Section 4.
  • Page 8 • Use inverter mounting tabs as a template guide for mounting holes. • Drill the 4 mounting holes and place the inverter in position and fasten the inverter to the mounting surface. EN1120X & EN1120X-24V 444mm 230mm 317.40mm EN1126X 539mm 431mm 230mm Page 8 Enerdrive ePOWER Inverter Owners Manual (Rev. 1.0)
  • Page 9 • The unit has to be grounded with a minimum 10mm2 copper conductor. ePOWER Inverter DC Input Connection: CAUTION Reversing the DC Input terminal will damage the unit and cannot be repaired. Damage caused by reverse polarity connection is not covered by the warranty. www.enerdrive.com.au Page 9...
  • Page 10 AC Input source and unit’s AC Input port. Important: Follow the local electrical and/or building code when you connect the unit to any AC source. Page 10 Enerdrive ePOWER Inverter Owners Manual (Rev. 1.0)
  • Page 11 Plug a small AC load into the front power point, like a 40W table lamp or small appliance to the front AC socket to verify AC is available. 6. The unit is successfully installed and functioning properly. www.enerdrive.com.au Page 11...

  • Page 12: Feature Setting

    Battery under-voltage setting is set to LOW (setting used for normal operation) Under-voltage alarm: ....... 11.0 Vdc Under-voltage alarm recovery: ..... 11.3 Vdc Under-voltage shutdown: ...... 10.5 Vdc Under-voltage shutdown recovery: ..12.0 Vdc Page 12 Enerdrive ePOWER Inverter Owners Manual (Rev. 1.0)
  • Page 13 • Press ‘Select’ button for 1 second to toggle between different setting values. • Press ‘Select’ button for 5 seconds to set selected setting and exit to next menu See more details on flow chart in Appendix I. www.enerdrive.com.au Page 13...

  • Page 14: Unit Operation

    Error is detected and unit has shutdown. Please check error code to troubleshoot the unit. Status LED Display LED Display Function/Status By-Pass Mode. Display shows battery voltage Green (solid) Green ’12.5’ in DC volts Page 14 Enerdrive ePOWER Inverter Owners Manual (Rev. 1.0)

  • Page 15: Normal Operation

    A higher power inverter is required for those appliances. Estimate Run Time On Load Following run times are estimates for reference, based on using different battery bank sizes. Actual run times may vary. Important: Power Drain from DC Battery Bank. www.enerdrive.com.au Page 15...
  • Page 16 1 hr 1.5 hrs 2000 W N.R. 15 mins 34 mins 49 mins 1 hrs 2600 W N.R. 11 mins 25 mins 37 mins 49 mins Note: N.R. - Not Recommended Page 16 Enerdrive ePOWER Inverter Owners Manual (Rev. 1.0)

  • Page 17: Troubleshooting

    Reduce load and check if any ventilation of shutdown limit the unit is blocked E08-11 Not used Internal transfer switch temperature is high Reduce load and check if any ventilation of and shutdown occurs the unit is blocked www.enerdrive.com.au Page 17...
  • Page 18 LEDs stay working for about 30 sec is available. only. With this setting, the unit will provide AC Output Power only when the AC Input Power is available. Page 18 Enerdrive ePOWER Inverter Owners Manual (Rev. 1.0)
  • Page 19 The voltage is supplied by a little built-in trickle the battery being corresponding drawing current may trigger the battery charger with current limiting protection. connected (EN1120x, “E01” or “E05” alarms as per the problem 2 EN1126X only) In cases where the back feed is not desirable,...
  • Page 20 “SdH” setting under-voltage shutdown threshold to low values setting (“SdL” - factory default setting) rather than the “SdH”. Page 20 Enerdrive ePOWER Inverter Owners Manual (Rev. 1.0)
  • Page 21 AC load side of the IEC output socket connections inside the panel/box use separate to either outlet port bus bars, being the Neutral one isolated from the chassis ground. Otherwise consider using the 10A AC-Output socket on the front of the unit. www.enerdrive.com.au Page 21...

  • Page 22: Specifications

    5 - 90% non-condensing Operating Altitude Up to 3000 meters above sea level Weights and Dimensions Weight 5.9 kg 5.9 kg 7.0 kg Dimensions (W x L x H) 435x230x115 560x230x115 Warranty 2 Years Page 22 Enerdrive ePOWER Inverter Owners Manual (Rev. 1.0)

  • Page 23: Warranty

    30 days of original purchase. Any defective unit that is returned to Enerdrive within 30 days of the date of purchase will be replaced free of charge. If such a unit is returned more than 30 days but less than two years from the purchase date, Enerdrive will repair the unit or, at its option, replace it, free of charge.

  • Page 24: Appendix 1

    Press ‘Select’ sec to set selected Factory Default for 1 sec setting and exit to next menu setting Press ‘Power’ for 1 sec to next menu EXIT Function Menu Function Set Menu Page 24 Enerdrive ePOWER Inverter Owners Manual (Rev. 1.0)

  • Page 25: Appendix Ii

    This end toward the main unit. Use phillips #0 screwdriver The RJ12 “crossover” cable has 6 wires with the following pin-out: BLUE YELLOW GREEN RJ-12 RJ-12 BLACK WHITE 7.6 Meters RJ-12 (6 wires) Rolled Over Cable (also called Rollover) www.enerdrive.com.au Page 25...
  • Page 26 NOTES: Page 26 Enerdrive ePOWER Inverter Owners Manual (Rev. 1.0)
  • Page 27 NOTES: www.enerdrive.com.au Page 27...
  • Page 28 ENERDRIVE PTY LTD Unit 11, 1029 Manly Road Tingalpa, Queensland, Australia 4173 Ph: 1300 851 535 / Fax: 07 3390 6911 Email: sales@enerdrive.com.au Web: www.enerdrive.com.au...
