SERVICE MANUAL

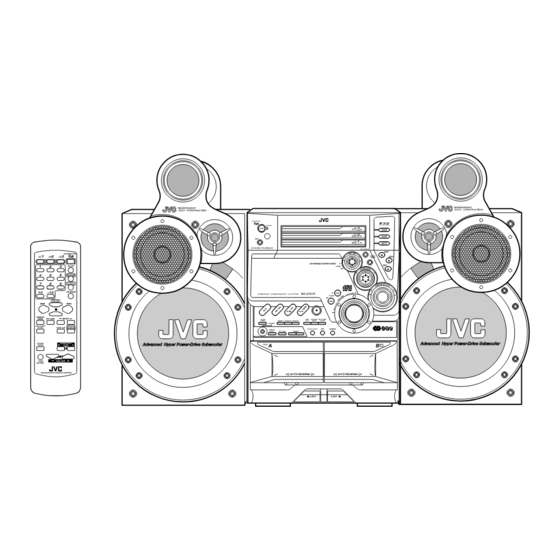

COMPACT COMPONENT SYSTEM
SP-MXGT91R
Contents
Safety precautions
Important for laser products
Preventing static electricity
Disassembly method
Adjustment method
MX-GT91R
STANDBY/ON
STANDBY
CD-R / RW PLAYBACK
MX-GT91R
CA-MXGT91R
1-2
1-4
1-5
1-6
1-26
COPYRIGHT
2001 VICTOR COMPANY OF JAPAN, LTD.
PLAY & EXCHANGE
SP-MXGT91R
Flow of functional operation
until TOC read
Maintenance of laser pickup
Replacement of laser pickup
Description of major ICs
MX-GT91R
Area Suffix
B
U.K.
E
Continental Europe
EN
Northern Europe
1-30
1-31
1-31
1-32
No.20931
Apr. 2001
