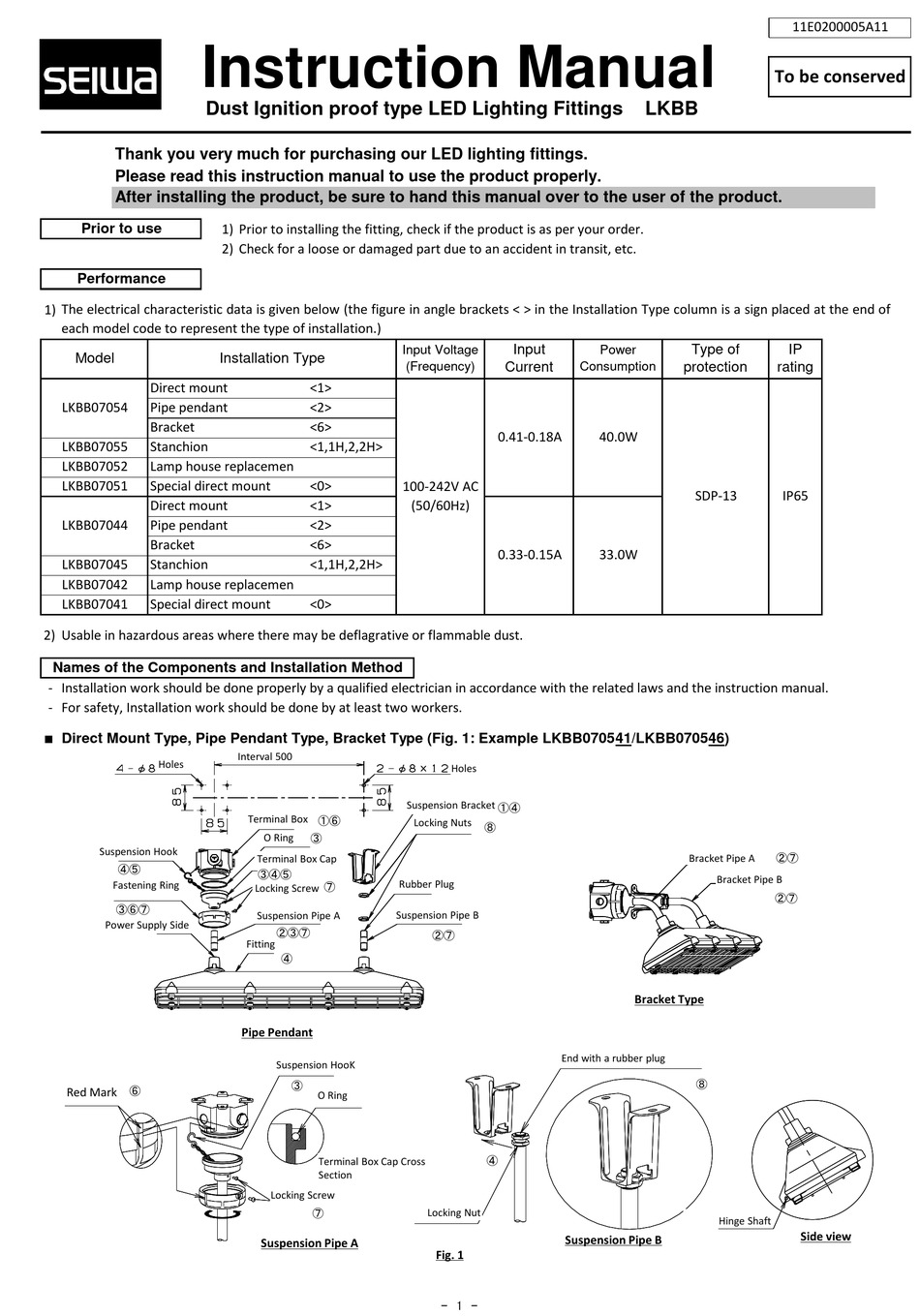

Seiwa LKBB Instruction Manual

Instruction Manual
Dust Ignition proof type LED Lighting Fittings
Thank you very much for purchasing our LED lighting fittings.
Please read this instruction manual to use the product properly.
After installing the product, be sure to hand this manual over to the user of the product.
Prior to use
Performance
1) The electrical characteristic data is given below (the figure in angle brackets < > in the Installation Type column is a sign placed at the end of
each model code to represent the type of installation.)
Model
Direct mount
LKBB07054 Pipe pendant
Bracket
LKBB07055 Stanchion
LKBB07052 Lamp house replacemen
LKBB07051
Special direct mount
Direct mount
LKBB07044 Pipe pendant
Bracket
LKBB07045 Stanchion
LKBB07042 Lamp house replacemen
LKBB07041 Special direct mount
2) Usable in hazardous areas where there may be deflagrative or flammable dust.
Names of the Components and Installation Method
- Installation work should be done properly by a qualified electrician in accordance with the related laws and the instruction manual.
- For safety, Installation work should be done by at least two workers.
■
Direct Mount Type, Pipe Pendant Type, Bracket Type (Fig. 1: Example LKBB070541/LKBB070546)
Holes
Suspension Hook
Fastening Ring
Power Supply Side
Red Mark
1) Prior to installing the fitting, check if the product is as per your order.
2) Check for a loose or damaged part due to an accident in transit, etc.
Installation Type
<1>
<2>
<6>
<1,1H,2,2H>
<0>
<1>
<2>
<6>
<1,1H,2,2H>
<0>
Interval 500
Terminal Box
O Ring
Terminal Box Cap
Locking Screw
Suspension Pipe A
Fitting
Pipe Pendant
Suspension HooK
O Ring
Terminal Box Cap Cross
Section
Locking Screw
Suspension Pipe A
Input
Input Voltage
(Frequency) Current
0.41-0.18A
100-242V AC
(50/60Hz)
0.33-0.15A
Holes
Suspension Bracket
Locking Nuts
Rubber Plug
Suspension Pipe B
End with a rubber plug
Locking Nut
Suspension Pipe B
Fig. 1
- -
LKBB
Type of
Power
Consumption protection
40.0W
SDP-13
33.0W
Bracket Pipe A
Bracket Pipe B
Bracket Type
Hinge Shaft
11E0200005A11
To be conserved
IP
rating
IP65
Side view
