Seiwa LZAB-V2 Instruction Manual

Instruction Manual
Thank you very much for purchasing our LED lighting fittings.
Please read this instruction manual to use the product properly.
After installing the product, be sure to hand this manual over to the user of the product.

Prior to use

1) Prior to installing the fitting, check if the product is as per your order.
2) Check for a loose or damaged part due to an accident in transit, etc.

Performance

Inspection

Type of Protection
Organization
ExdeⅡB+H
TIIS

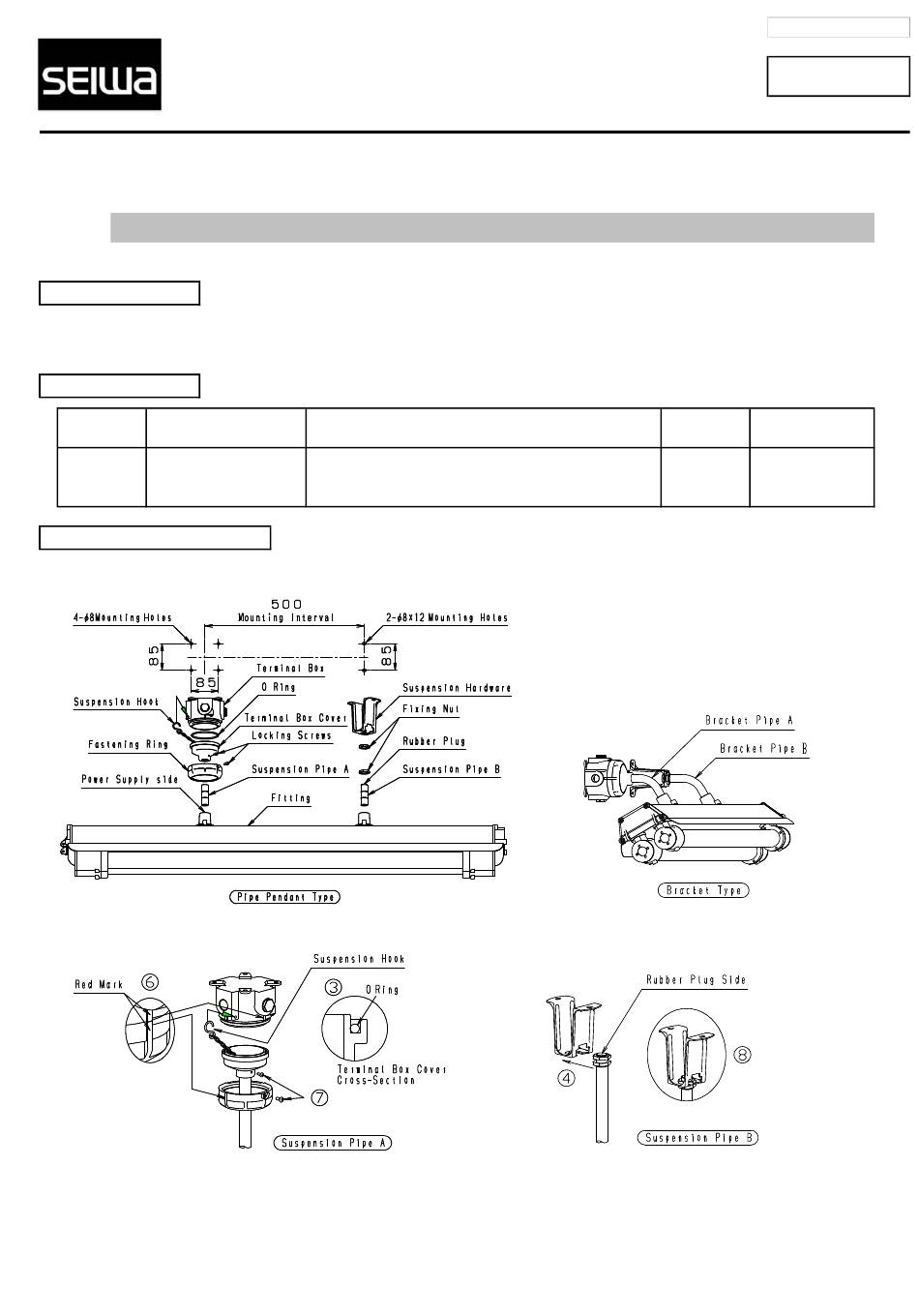

How to Install the Fitting

■ Pipe Pendant Type, Bracket Type
1) Fix the terminal box and suspension hardware on the mounting surface firmly.
2) Screw the suspension pipes A and B into the fitting.
3) Put the fastening ring around the suspension pipe A and screw in the terminal box cover.
Confirm that the O ring is in the groove of the terminal box cover.
4) Raise the fitting and fit it to the suspension hardware. Hook the suspension hook onto the terminal box.
Explosion proof type LED Lighting Fittings LZAB-V2
Usable in Zone 1 or Zone 2 hazardous areas where
T6X
2
there are hydrogen gases.
Hazardous Area
- 1 -
11E0000850G11
To be conserved
IP
Rated Input Voltage
rating (Frequency)
100-242 V AC
IP 65
(50/60 Hz)
