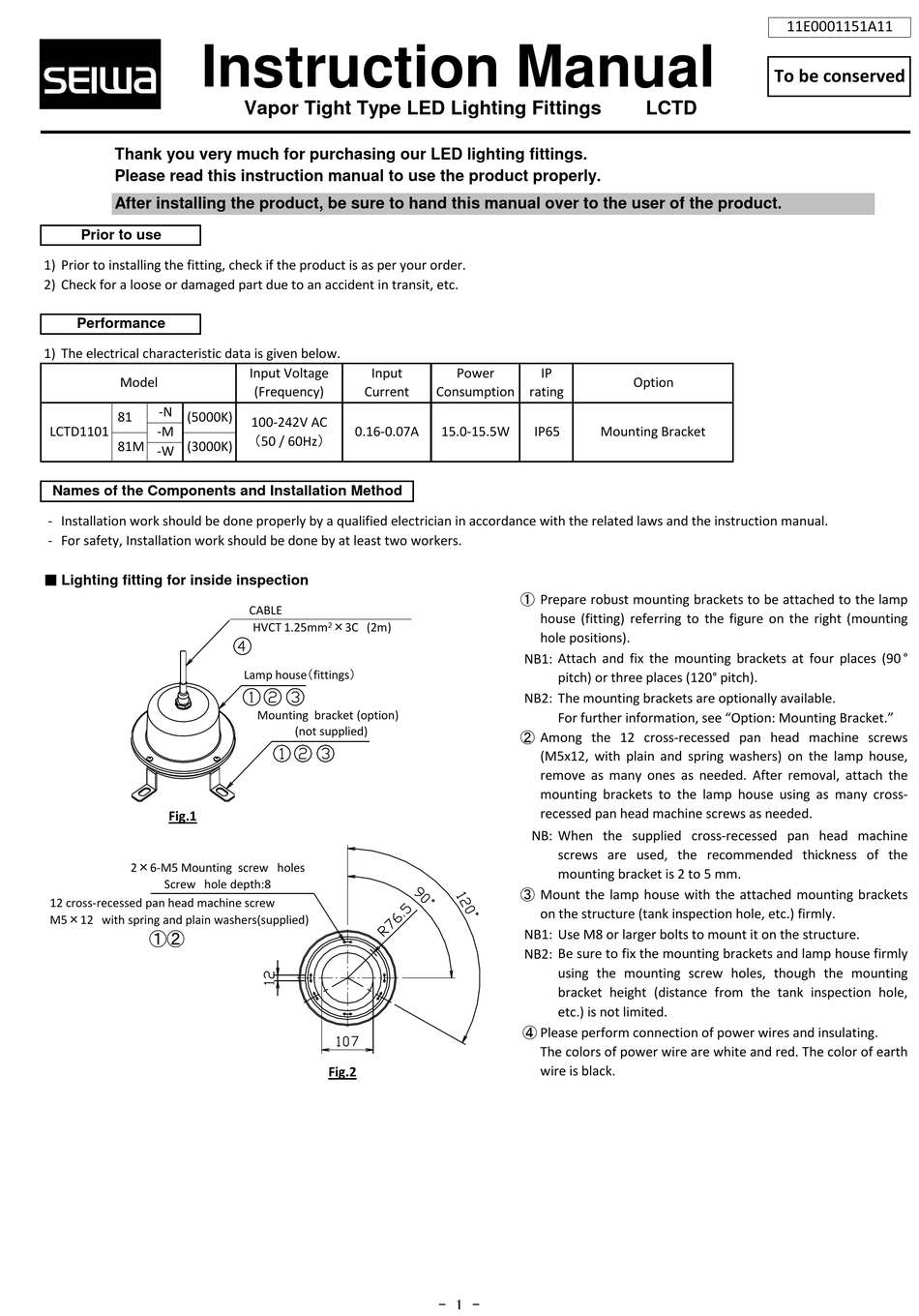

Seiwa LCTD110181-N Instruction Manual

Instruction Manual
Thank you very much for purchasing our LED lighting fittings.
Please read this instruction manual to use the product properly.
After installing the product, be sure to hand this manual over to the user of the product.

Prior to use

1) Prior to installing the fitting, check if the product is as per your order.
2) Check for a loose or damaged part due to an accident in transit, etc.

Performance

1) The electrical characteristic data is given below.
Model
-N (5000K)
81
LCTD1101 -M
81M -W (3000K)

Names of the Components and Installation Method

- Installation work should be done properly by a qualified electrician in accordance with the related laws and the instruction manual.
- For safety, Installation work should be done by at least two workers.
■ Lighting fitting for inside inspection
Fig.1
2×6-M5 Mounting screw holes
Screw hole depth:8
12 cross-recessed pan head machine screw
M5×12 with spring and plain washers(supplied)
Vapor Tight Type LED Lighting Fittings
Input Voltage Input
(Frequency) Current
100-242V AC
0.16-0.07A
50 / 60Hz
CABLE
×3C (2m)
2
HVCT 1.25mm
Lamp house fittings
Mounting bracket (option)
(not supplied)
Fig.2
Power IP
Consumption rating
15.0-15.5W IP65 Mounting Bracket
Prepare robust mounting brackets to be attached to the lamp
house (fitting) referring to the figure on the right (mounting
hole positions).
NB1: Attach and fix the mounting brackets at four places (90 °
pitch) or three places (120° pitch).
NB2: The mounting brackets are optionally available.
For further i for atio , see Optio : Mou ti g Bracket.
Among the 12 cross-recessed pan head machine screws
(M5x12, with plain and spring washers) on the lamp house,
remove as many ones as needed. After removal, attach the
mounting brackets to the lamp house using as many cross-
recessed pan head machine screws as needed.
NB: When the supplied cross-recessed pan head machine
screws are used, the recommended thickness of the
mounting bracket is 2 to 5 mm.
Mount the lamp house with the attached mounting brackets
on the structure (tank inspection hole, etc.) firmly.
NB1: Use M8 or larger bolts to mount it on the structure.
NB2: Be sure to fix the mounting brackets and lamp house firmly
using the mounting screw holes, though the mounting
bracket height (distance from the tank inspection hole,
etc.) is not limited.
Please perform connection of power wires and insulating.
The colors of power wire are white and red. The color of earth
wire is black.
- -
11E0001151A11
To be conserved
LCTD
Option
