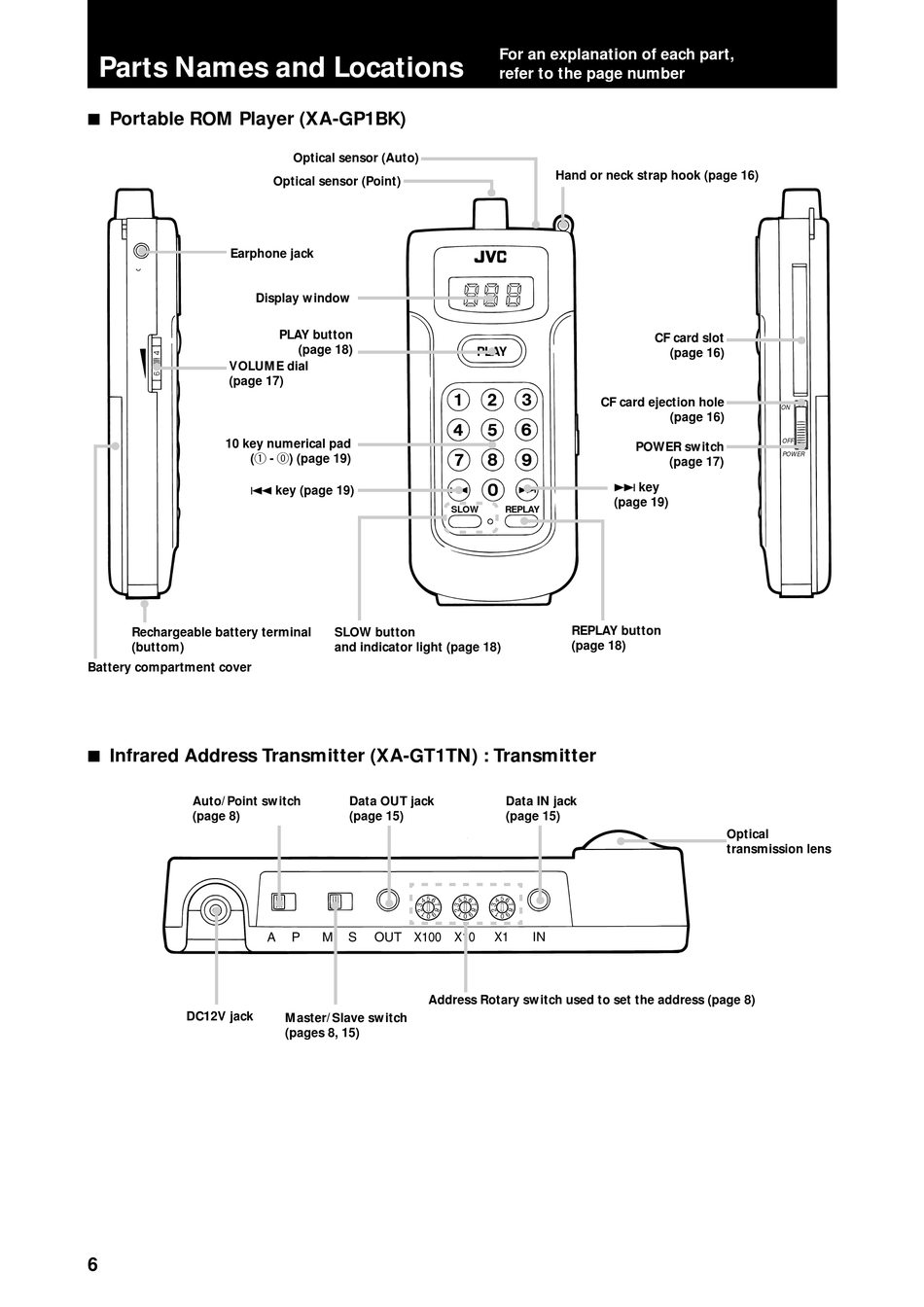

Parts Names and Locations
7 Portable ROM Player (XA-GP1BK)
Earphone jack
˘
Display window
VOLUME dial
(page 17)
10 key numerical pad
(1 - `) (page 19)
4 key (page 19)
Rechargeable battery terminal
(buttom)
Battery compartment cover
7 Infrared Address Transmitter (XA-GT1TN) : Transmitter
Auto/Point switch
(page 8)
DC12V jack
6
Optical sensor (Auto)
Optical sensor (Point)
PLAY button
(page 18)
SLOW button
and indicator light (page 18)
Data OUT jack
(page 15)
Address Rotary switch used to set the address (page 8)
Master/Slave switch
(pages 8, 15)
For an explanation of each part,
refer to the page number
Hand or neck strap hook (page 16)
PLAY
CF card ejection hole
¢ key
(page 19)
REPLAY
SLOW
REPLAY button
(page 18)
Data IN jack
(page 15)
CF card slot
(page 16)
ON
(page 16)
OFF
POWER switch
POWER
(page 17)
Optical
transmission lens
