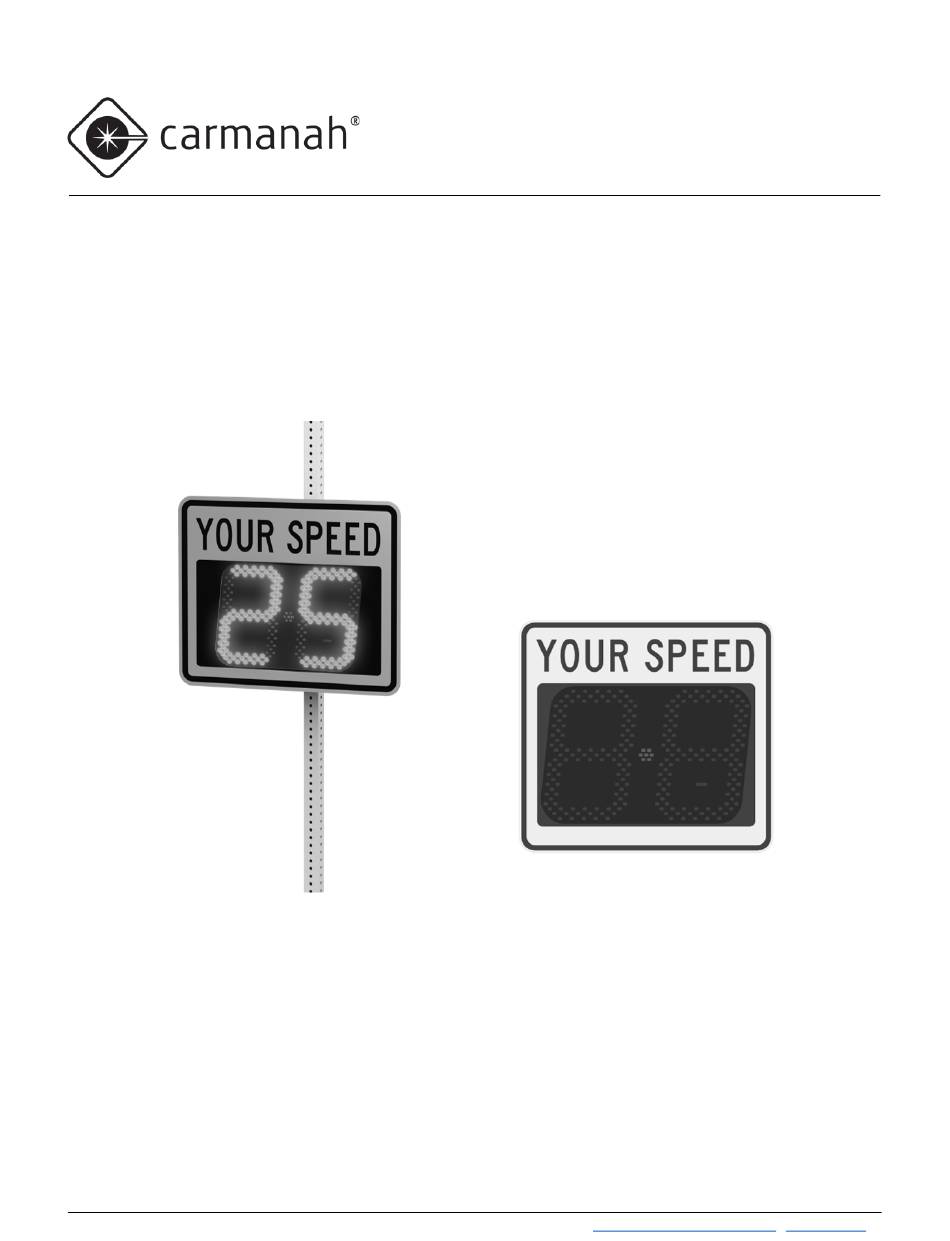

- Page 1 SpeedCheck ® DISPLAY ASSEMBLY REPLACEMENT GUIDE For the SPEEDCHECK-12 90755_REPLACEMENT-GUIDE_SPEEDCHECK-12-Display-Assembly_RevB Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
-
Page 2: Table Of Contents
4.0 Installation ................................6 Opening Rear Enclosure ..........................6 Removing Display Enclosure ........................7 Removing Display Assembly ........................7 Installing New Display Assembly ........................8 System Reassembly ...........................9 Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... -
Page 3: Warnings And Precautions
Installation may require more than one person. Ensure the equipment is not powered during installation and wiring of the system. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... - Page 4 Product can have sharp edges. Accidental movement of hinged components can cause injury. This guide is specific to the SPEEDCHECK-12 display assembly installation and is not a replacement for the complete SPEEDCHECK-12 product user manual.
-
Page 5: System Components
The display assembly comes with the following: polycarbonate window, top rail drip shield, LED display, strobe, radar, wiring, and controller. 3.0 Tools and Materials Required The following tools and materials may be required to install the display assembly into your SPEEDCHECK-12 system: 1. Socket set 2. -
Page 6: Installation
2. Apply diagonal pressure to the bottom right corner of the sign face then PULL on the key. 3. Once unlocked, the key can be removed. 4. Swing the display enclosure away from the rear enclosure. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... -
Page 7: Removing Display Enclosure
3. Carefully slide the display assembly down and away from the top rail drip shield (this may require a bit of force to come loose). Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com... -
Page 8: Installing New Display Assembly
4. Adjust display assembly until all holes are lined up with the static sign threaded inserts. 5. Secure the assembly with the six security screws from Section 4.3. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... -
Page 9: System Reassembly
Replacement display assembly may need programming to match speed settings for your application. Visit carmanah.com/appsc to download SpeedCheck Manager from the Apple App Store or Google Play Store to make adjustments. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... - Page 10 DISPLAY ASSEMBLY REPLACEMENT GUIDE © 2022 Carmanah Technologies Corporation Technical Support: Email: customersupport@carmanah.com Toll Free: 1.877.722.8877 (US & Canada) Worldwide: 1.250.380.0052 Fax: 1.250.380.0062 Web: carmanah.com Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
