Preliminary knowledge

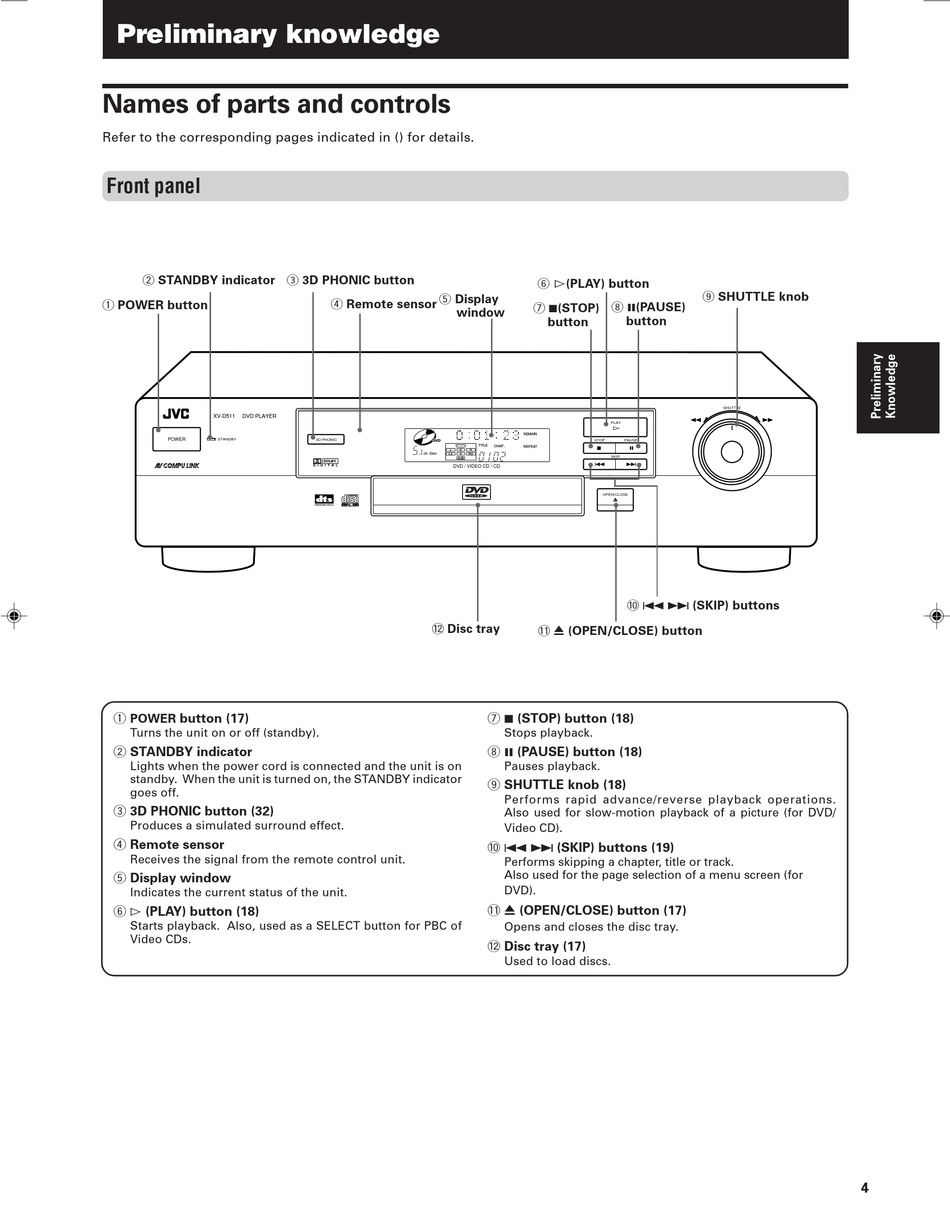

Names of parts and controls
Refer to the corresponding pages indicated in () for details.
Front panel
2 STANDBY indicator
1 POWER button
XV-D511
DVD PLAYER
POWER
STANDBY
1
POWER
button (17)
Turns the unit on or off (standby).
2 STANDBY indicator
Lights when the power cord is connected and the unit is on
standby. When the unit is turned on, the STANDBY indicator
goes off.
3 3D PHONIC button (32)
Produces a simulated surround effect.
4 Remote sensor
Receives the signal from the remote control unit.
5 Display window
Indicates the current status of the unit.
6 # (PLAY) button (18)
Starts playback. Also, used as a SELECT button for PBC of
Video CDs.
3 3D PHONIC button
5 Display
4 Remote sensor
3D PHONIC
DOLBY
D I G I T A L
= Disc tray
#
6
(PLAY) button
8 8(PAUSE)
7 7(STOP)
window
button
PLAY
STOP
SKIP
DVD / VIDEO CD / CD
OPEN/CLOSE
- 0 (OPEN/CLOSE) button
7 7 (STOP) button (18)
Stops playback.
8 8 (PAUSE) button (18)
Pauses playback.
9 SHUTTLE knob (18)
Performs rapid advance/reverse playback operations.
Also used for slow-motion playback of a picture (for DVD/
Video CD).
0 4 ¢ (SKIP) buttons (19)
Performs skipping a chapter, title or track.
Also used for the page selection of a menu screen (for
DVD).
- 0 (OPEN/CLOSE) button (17)
Opens and closes the disc tray.
= Disc tray (17)
Used to load discs.
Preliminary knowledge
9 SHUTTLE knob
button
SHUTTLE
PAUSE
0 4 ¢ (SKIP) buttons
