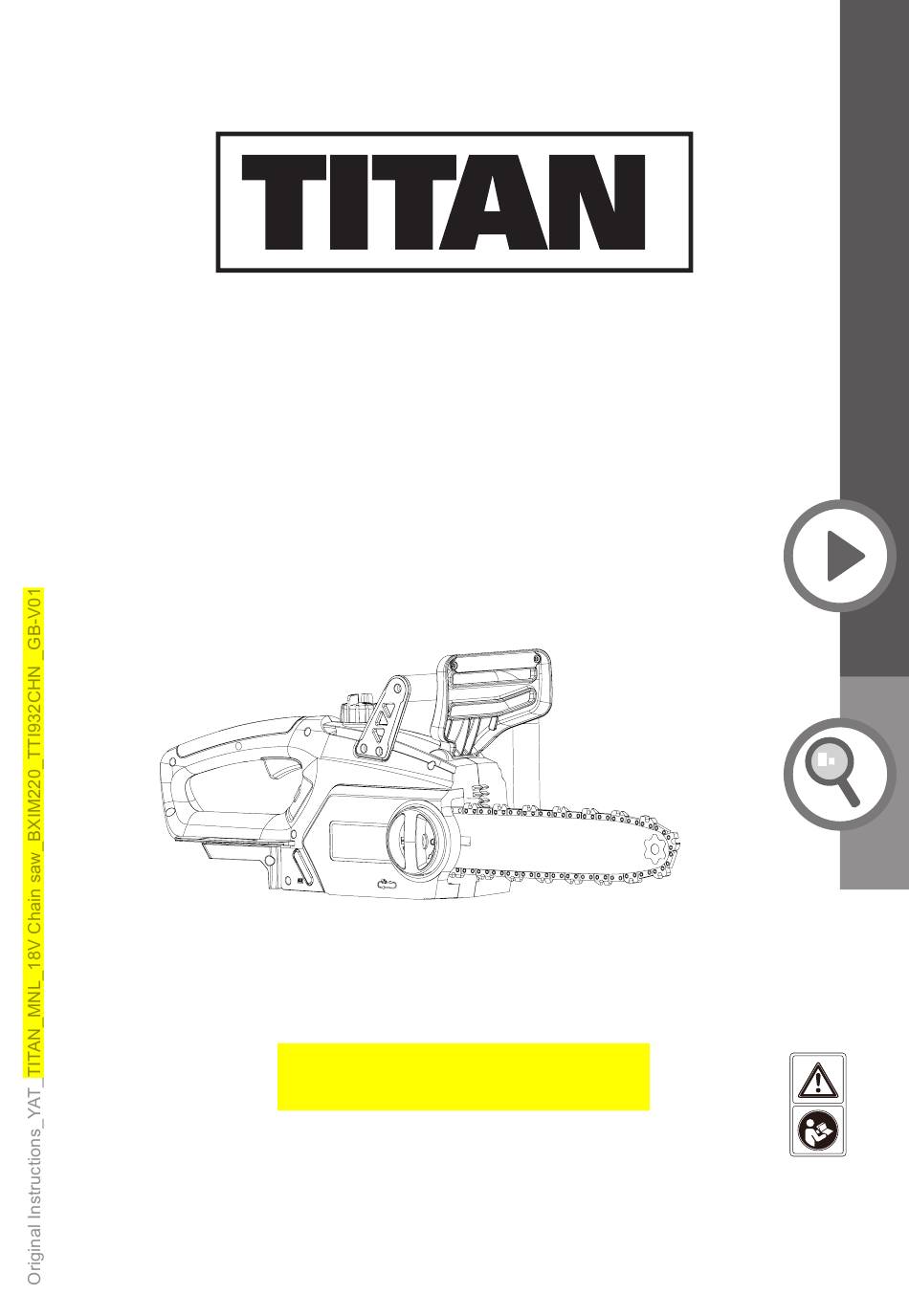

  • Page 1 Cordless chainsaw 18V 25cm TTI932CHN CAUTION: Read the instructions before using the product.

  • Page 2: Table Of Contents

    Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety information Your product Before you start more detail... Product functions Operation Care and maintenance Trouble shooting Recycling and disposal Guarantee Customer Care and Technical Helpline...

  • Page 3: Safety Information

    Safety information TTI932CHN Safety warnings General power tool safety warnings WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
  • Page 4 Safety information TTI932CHN Unmodified plugs and matching outlets will reduce risk of electric shock. 2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
  • Page 5 Safety information TTI932CHN eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. 3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
  • Page 6 Safety information TTI932CHN 1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. 2. Do not use the power tool if the switch does not turn it on and off.
  • Page 7 Safety information TTI932CHN be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. 8. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
  • Page 8 Safety information TTI932CHN explosion or risk of injury. 6. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. 7. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.
  • Page 9 Safety information TTI932CHN configuration increases the risk of personal injury and should never be done. 3. Hold the chain saw by insulated gripping surfaces only, because the saw chain may contact hidden wiring. Saw chains contacting a "live" wire may make exposed metal parts of the power tool "live"...
  • Page 10 Safety information TTI932CHN 9. Carry the chain saw by the front handle with the chain saw switched off and away from your body. When transporting or storing the chain saw, always fit the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain.
  • Page 11 Safety information TTI932CHN this product. 16. Only use replacement guide bars and saw chains specified by the manufacturer or equivalent replacements. Using non-approved cutting attachments can result in personal injuries and damage to property. 17. Before using the product and after any impact or dropping, check for signs of wear or damage and repair as necessary.
  • Page 12 Safety information TTI932CHN your saw. As a product user, you should take several steps to keep your cutting jobs free from accident or injury. Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below: 1.
  • Page 13 Safety information TTI932CHN not in use. 3. Don’t maintain the battery pack on the charger when not in use. 4. After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain the maximum performance.
  • Page 14 Safety information TTI932CHN vibration and noise exposure risks: 1. Only use the product as intended by its design and these instructions. 2. Ensure that the product is in good condition and well maintained. 3. Use correct attachments for the product and ensure they are in good condition.
  • Page 15 Safety information TTI932CHN pack if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again. Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain.
  • Page 16 Safety information TTI932CHN Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt, (direct current voltage) mAh...
  • Page 17 Safety information TTI932CHN This product is of protection class III. Do not expose the product to rain or wet conditions (moisture). Keep hands away from moving cutting device! Objects thrown by the product could hit the user or other bystanders. Always ensure that other people and pets remain at a safe distance from the product when it is in operation.
  • Page 18 Safety information TTI932CHN Crossed out dust bin. Batteries and battery packs should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. Do not dispose of battery packs in rivers or immerse in water.

  • Page 19: Your Product

    Your product TTI932CHN Your product 1. Rear handle 10. Drive sprocket 2. Oil tank cap 11. Saw chain 3. Front handle 12. Guide bar 4. Front safeguard (chain brake lever) a.Sprocket wheel 5. Spiked bumper b.Lubrication hole 6. Oiling port 13.
  • Page 20 Your product TTI932CHN 16. Lock-off button 23. Battery pack 17. On/off switch a.Battery capacity button 18. Rear safeguard b.Release button 19. Battery docking port c.Battery capacity indicators 20. Motor housing 24. Charger a.Motor* 25. Multitool 21. Air vents 22. Guide bar cover NOTE: Parts marked with * are not shown in this overview.

  • Page 21: Before You Start

    Before you start TTI932CHN Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
  • Page 22 Before you start TTI932CHN NOTE: Take care of small parts that are removed during assembly or when making adjustments. Keep them secure to avoid loss. Saw chain and guide bar Assemble the guide bar (12) and saw chain (11) before operation.
  • Page 23 Before you start TTI932CHN ‘Cutter’ Fig. 2 WARNING! The direction of the saw chain ‘cutters’ must be same as indicated by the symbol and arrow on the guide bar! 4. Align the saw chain (11) and guide bar (12) assembly with the drive sprocket (10) and the mounting bolt (9).
  • Page 24 Before you start TTI932CHN WARNING! The direction of the saw chain ‘cutters’ must be as indicated by the symbol and arrow on the guide bar! Ensure the guide bar and saw chain are properly assembled in correct direction; otherwise the saw chain cannot work.
  • Page 25 Before you start TTI932CHN WARNING! remove battery pack from product before adjusting saw chain tension! The cutting edges of the saw chain are sharp! Always wear protective gloves when handling chain! Always maintain proper chain tension! A loose chain increases...
  • Page 26 Before you start TTI932CHN Chain lubrication WARNING! The product is not filled with chain oil. It is essential to fill the product with chain oil before using it! Never operate the product without chain oil as this will result in extensive damage to...
  • Page 27 Before you start TTI932CHN Fig. 10 NOTE: Towards the end of the season, it is advisable to put only as much lubricant in the tank as you need for each cut, so that it is completely used up before you store the product.
  • Page 28 Before you start TTI932CHN Battery pack Attaching / releasing the battery pack 1. Align the battery pack (23) with the sliding slots of the battery docking port (19) and slide the battery pack (23) in to attach it. Ensure it clicks in place (Fig.

  • Page 29: In More Detail

    Before you start TTI932CHN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Customer Care and Technical Helpline Availability of Spare Parts Technical specifications Declaration of conformity...

  • Page 30: Product Functions

    Product functions TTI932CHN Intended use This cordless chain saw MCS1825-Li is designated with a rated voltage of 18 V d.c. . It is designed only to be used with the battery pack which is listed in the chapter of “Technical specifications”.
  • Page 31 Product functions TTI932CHN Chain brake test WARNING! Before operating this product, always check that the chain brake is in perfect working condition! The following function check should be carried out before each use. The purpose of the chain brake testing is to reduce the possibility of injury due to kickback.
  • Page 32 Product functions TTI932CHN Overload protection The overload protection may be activated in the following circumstances: • If you work too quickly. • Heavy cutting conditions. • Where there is too much resistance against the saw chain. This product features a battery protection, which cuts off the power when the product is overloaded.
  • Page 33 Product functions/Operation TTI932CHN General operation 1. Check the product, its battery pack and charger as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. Take care of any problem you find or have the product checked by qualified specialist.
  • Page 34 Operation TTI932CHN 1. To become proficient attend a recognised chain saw training course to learn how to operate chain saws safely and effectively. Familiarise yourself with all the controls and switches. Practise all movements with the product switched off. 2. Always hold the product firmly with both hands; front handle (3) with the left hand and rear handle (1) with the right hand.
  • Page 35 Operation TTI932CHN Fig. 22 9. Optimum sawing is achieved if the chain speed remains constant during cutting. 10. Be careful when reaching the end of the cut. The weight of the product may change unexpectedly as it cuts free from the wood. This can cause accidents to the legs and feet.

  • Page 36: Operation

    Operation TTI932CHN Fig. 26 Fig. 27 3. Any of these reactions may cause loss of control of the product, which could result in serious personal injury or even death. 4. With a basic understanding of ‘kickback’, the element of surprise can be reduced or eliminated.
  • Page 37 Operation TTI932CHN WARNING! Most ‘kickback’ accidents happen during limbing! Pay close attention to the position of the ‘kickback’ zone of the bar when you are ‘limbing’ branches that are under tension! Felling a tree WARNING! Before commencing work or attempting to fell any tree,...
  • Page 38 Operation TTI932CHN Notching undercut Make the notch (Fig. 29, B) 1/3 the diameter of the tree, perpendicular to the direction of falls (Fig. 29). Make the lower horizontal notching cut first. This will help to avoid pinching either the saw chain or the guide bar when the second notch is being made.
  • Page 39 Operation TTI932CHN WARNING! Never climb into a tree to limb or prune! Do not stand on ladders, platforms, logs, or in any position which may cause you to lose the balance or control of the saw! When pruning trees, it is important not to make the flush cut next to main limp or trunk...
  • Page 40 Operation TTI932CHN Fig. 33 3. When the log is supported on both ends (Fig. 34), cut 1/3 the diameter from the top (overbuck). Then make the finished cut by underbucking the lower 2/3 to meet the first cut. Fig. 34 4.
  • Page 41 Operation TTI932CHN Fig. 36 6. If the wood diameter is large enough for you to insert a soft bucking wedge without touching the chain, you should use the wedge to hold the cut open to prevent pinching (Fig. 37). Fig. 37 After use 1.

  • Page 42: Care And Maintenance

    Care and maintenance TTI932CHN operate it if you find broken and worn parts. WARNING! Only perform repairs and maintenance work according to these instructions! All further works must be performed by a qualified specialist! General Cleaning 1. Clean the product with a damp cloth and pH-neutral soap. Use a brush for areas that are hard to reach.
  • Page 43 Care and maintenance TTI932CHN Guide bar and saw chain maintenance Guide bar Most guide bar problems can be prevented merely by keeping the product well maintained. Incorrect filling and non-standard cutter and depth gauge settings are the causes of most guide bar problems, primarily resulting in uneven bar wear.
  • Page 44 Care and maintenance TTI932CHN Fig. 40 5. Check the guide bar ‘rail’ for wear: Hold a ruler (straight edge) against the side of the guide bar and ‘cutter side plates’. If there is a gap between the ruler and guide bar the guide bar ‘rail’ is normal. If there is no gap (ruler flush against the side of the guide bar) the guide bar ‘rail’...
  • Page 45 Care and maintenance TTI932CHN WARNING! Only sharpen the saw chain yourself if you are trained and have experience! Use proper tools to sharpen the saw chain! 2. The height difference between the tooth and the ridge is the cutting depth.
  • Page 46 Care and maintenance TTI932CHN Sharpening angle 25° File Left-hand direction cutter Outside Inside Saw chain direction Fig. 43 6. File each tooth from the inside towards outside only. File one side of the chain first than turn the saw around and repeat the process.
  • Page 47 Care and maintenance TTI932CHN ideal storage temperature is between 10 °C and 30 °C. 6. We recommend using the original package for storage or covering the product with a suitable cloth or enclosure to protect it against dust. 7. Charge the battery pack (23) before storage.

  • Page 48: Troubleshooting

    Troubleshooting TTI932CHN Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these...

  • Page 49: Recycling And Disposal

    Recycling and disposal TTI932CHN Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. For further information visit www.recycle-more.co.uk. The product comes in a package that protects it against damage during shipping.

  • Page 50: Guarantee

    Guarantee TTI932CHN Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use.
  • Page 51 Guarantee TTI932CHN www.diy.com Screwfix Direct Limited Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com...

  • Page 52: Customer Care And Technical Helpline

    Customer Care and Technical Helpline TTI932CHN Customer Care and Technical Helpline A better way to repair your tools Kingfisher takes special care in creating high-quality garden power tools that are designed to last. But if a fault develops with your garden power tool and you...

  • Page 53: Availability Of Spare Parts

    Availability of Spare Parts TTI932CHN Availability of Spare Parts Contact the customer service helpline for assistance or visit www. kingfisherspares.com For assistance contact the customer services helpline: UK 0800 0789647 uk@Kingfisherservice.com EIRE 1800 932226 eire@kingfisherservice.com Further information about this product can also be found at:...

  • Page 54: Technical Specifications

    Technical specifications TTI932CHN Technical specifications General >Rated voltage :18V >Rated no load speed n :2400 min >Oil tank volume :230 cm (ml) >Weight :approx. 3.5 kg >Dimensions :approx. 62.5*20.5*24 cm Saw chain and guide bar >Saw chain type :90PX040X Oregon >Guide bar type...
  • Page 55 (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). Rating label explanation Chain saw: TTI932CHN TTI= TITAN Brand 932=Series number CHN=Chain saw...

  • Page 56: Declaration Of Conformity

    Declaration of conformity (UK) DECLARATION OF CONFORMITY Product • Cordless Chainsaw 18V 25cm • TTI932CHN • Type / batch or serial number range 000001 to 999999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited...
  • Page 57 18V 25cm/ Motofierăstrău fără fir 18V 25cm/ Motosierra sin cable de 18V 25cm/ Motosserra sem fios de 18V 25cm/ Kablosuz motorlu testere 18V 25cm • TTI932CHN • Type / batch or serial number range 000001 to 999999 Name and address of the manufacturer or his authorised representative: Nom et adresse du fabricant ou de son mandataire: Nazwa i adres producenta lub jego upoważnionego przedstawiciela:...
  • Page 58 Declaration of conformity TTI932CHN 2006/42/EC as amended Machinery Directive 2014/30/EU as amended Directive Electromagnetic compatibility 2000/14/EC as amended Outdoor Noise Directive 2011/65/EU as amended Directive Restriction of the use of certain hazardous substances in electrical and electronic equipment Directive 2006/42/CE relative aux machines 2014/30 / UE telle que modifiée Directive Compatibilité...
  • Page 59 Declaration of conformity TTI932CHN Authorised signatory and technical file holder/signataire et responsable de la documentation technique authorisé/ podmiot uprawniony do wystawienia i adres prezechowywania dokumentacji technicznej/semnatar autorizat și deținător al dosarului tehnic/firmante autorizado y titular del expediente tecnico/ signatário autorizado e detentor da ficha técnica Kingfisher International Products B.V.,...
