Titan TTL758CHN Manual

Titan TTL758CHN Manual

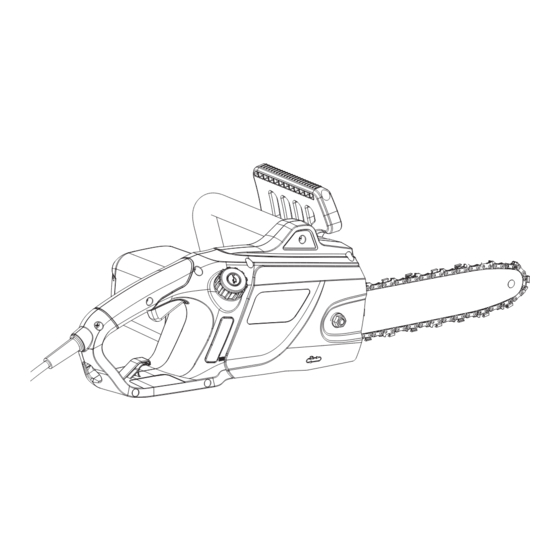

Electric chain saw 2000w
Hide thumbs

Advertisement

Table of Contents

Electric Chain Saw
2000W
TTL758CHN
EAN: 3663602627913
WARNING: Read the instructions before using the product!

Advertisement

Table of Contents
loading

Related Manuals for Titan TTL758CHN

Summary of Contents for Titan TTL758CHN

  • Page 1 Electric Chain Saw 2000W TTL758CHN EAN: 3663602627913 WARNING: Read the instructions before using the product!

  • Page 2: Table Of Contents

    TTL758CHN Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start more detail... Product functions Operation Care and maintenance...

  • Page 3: Safety Information

    Safety information TTL758CHN Safety warnings 1. Children should be supervised to ensure that they do not play with the product. General power tool safety warnings WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
  • Page 4 Safety information TTL758CHN 2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. 3. Do not expose power tools to rain or wet conditions.
  • Page 5 Safety information TTL758CHN conditions will reduce personal injuries. 3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
  • Page 6 Safety information TTL758CHN dangerous and must be repaired. 3. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
  • Page 7 Safety information TTL758CHN Chain saw safety warnings 1. Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything.
  • Page 8 Safety information TTL758CHN alert for spring back. When the tension in the wood fibres is released the spring loaded limb may strike the operator and/or throw the chain saw out of control. 8. Use extreme caution when cutting brush and saplings.
  • Page 9 Safety information TTL758CHN Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator. Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.
  • Page 10 Safety information TTL758CHN increased kickback. Additional chain saw safety warnings 1. We recommend the use of a residual current device with a tripping current of 30 mA or less. 2. Position the extension cord so that it will not be caught on branches and the like, during cutting.
  • Page 11 Safety information TTL758CHN Emergency Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards. 1. Always be alert when using this product, so that you can recognise and handle risks early.
  • Page 12 Safety information TTL758CHN seek medical advice immediately. ‘Whitefinger’ symptoms include: numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally appear in the fingers, hands or wrists. The risk increases at low temperatures.
  • Page 13 Safety information TTL758CHN Symbol explanation Caution / Warning. Read the instruction manual. Wear eye protection Wear hearing protection Wear respiratory protection Wear safety helmet Wear face protection! Wear protective gloves. Wear safety footwear. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation.
  • Page 14 Guaranteed sound power level value in 108 dB Class II protection. The product complies with the applicable European directives and an evaluation method of conformity for these directives were done. yyWxx Manufacturing date code; year of manufacturing (20yy) and week of manufacturing (Wxx) TTL758CHN: TTL-TITAN, CHN-Chain Saw...

  • Page 15: Your Product

    Your product TTL758CHN Your product 13 1 1. Front handle 12. Drive sprocket 2. Front hand guard (Chain 13. On/off switch brake lever) 14. Lock-off button 3. Saw chain 15. Rear handle 4. Guide bar 16. Power cord with plug 5.

  • Page 16: Before You Start

    Before you start TTL758CHN Unpack 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
  • Page 17 Before you start TTL758CHN WARNING! Always use a saw chain designed as “low- kickback” or a saw chain which meets the low-kickback requirements! A standard saw chain (a chain which does not have the kickback reducing guard links) should only be used...
  • Page 18 Before you start TTL758CHN Fig. 1c Fig. 1d WARNING! The direction of the saw chain ‘cutters’ must be as indicated by the symbol and arrow on the guide bar! 7). The saw chain movement is as indicated by the arrow (Fig.
  • Page 19 Before you start TTL758CHN NOTE: The saw chain (3) has not yet been tensioned. Tension the chain as described under “Saw chain tensioning”. After operating the product for approximately one hour, adjust the chain tension again. 2. Saw chain tensioning Always check the saw chain tension before use, after the first cuts and regularly during use, approx.
  • Page 20 Before you start TTL758CHN 3). Turn the tension screw (9a) until the chain ‘tie straps’ are just touching the bottom edge of the guide bar (4) (Fig. 2b, 2c). Fig.2b Fig.2c 4). Check the chain tension using one hand to lift the saw chain (3) against the weight of the product.
  • Page 21 Before you start TTL758CHN Chain lubrication WARNING! The product is not filled with chain oil. It is essential to fill the product with chain oil before using it! Never operate the product without chain oil as this will result in extensive damage to the product!!
  • Page 22 Before you start TTL758CHN NOTE: In summer use SAE #30; in winter, or if the trees have excessive sap, use SAE #10. NOTE: Towards the end of the season, it is advisable to put only as much lubricant in the tank as you need for each cut, so that it is completely used up before you store the product.
  • Page 23 Before you start TTL758CHN 1). Make sure the guide bar (4) and the saw chain (3) are in place when you check the oil delivery. 2). Start the product; keep it running at no load and check if the chain oil is delivered as shown in the figure (Fig.
  • Page 24 Before you start TTL758CHN 1. Make sure the on/off switch (13) is in its off position. 2. Double the extension cable, about a foot from the end. Lead the loop through the hole on the rear safe guard and hook the loop over the cable strain relief (17).

  • Page 25: In More Detail

    TTL758CHN detail... more Product functions Operation Care and maintenance Trouble shooting Recycling and disposal Guarantee Technical specifications EC declaration of conformity...

  • Page 26: Product Functions

    Product functions TTL758CHN Intended use 1. This electric chain saw TTL758CHN is designated with a rated input of 2000 Watts. The product is intended cutting logs with a thickness of max.350 mm. It must not be used for cutting other materials, such as plastic, stone, metal or wood that contains foreign objects.
  • Page 27 Product functions TTL758CHN 2. Chain brake test Perform the following function check before each use. The purpose of the chain brake testing is to reduce the possibility of injury due to kickback. 1). Switch the product on as described below.

  • Page 28: Operation

    Operation TTL758CHN General operation 1. Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. 2. Double check that accessories and the guide bar/saw chain are properly fixed.
  • Page 29 Operation TTL758CHN Basic operating / cutting procedure 1. To become proficient attend a recognised chain saw training course to learn how to operate chain saws safely and effectively. Familiarise yourself with all the controls and switches. Practise all movements with the product switched off.
  • Page 30 Operation TTL758CHN 7. Reset the spiked bumper (8) at a low point when cutting thicker logs by pulling the product slightly backwards until the gripping teeth release, and reposition at lower level to continue sawing. Do not remove the product completely from the wood.
  • Page 31 Operation TTL758CHN 1. Kickback may occur if the nose or tip of the guide bar touches an object, or if wood pinches the saw chain in the cut. 2. In some cases, contact with the tip of the guide bar (4)
  • Page 32 Operation TTL758CHN your thumbs and fingers encircling the handles. A firm grip will help you reduce ‘kickback’ and maintain control of the product. 6). You should carefully read all safety warnings and user instructions before attempting to operate this product.
  • Page 33 Operation TTL758CHN Felling a tree 1. When bucking and felling operations are being performed by two or more persons at the same time, the felling operations should be separated from the bucking operation by a distance of at least twice the height of the tree being felled. Trees should not be felled in a manner that would endanger any person, strike any utility line or cause any property damage.
  • Page 34 Operation TTL758CHN 7. Felling back cut 1). Make the felling back cut (Fig. 9b, A) at least 50 mm higher than the horizontal notching cut (Fig. 9b). Keep the felling back cut parallel to the horizontal notching cut. Make the felling back cut so enough wood is left to act as a hinge.
  • Page 35 Operation TTL758CHN Cutting spring poles A spring pole is any log, branch, rooted stump, or sapling which is bent under tension by other wood so that it springs back if the wood holding it is cut or removed (Fig. 11).
  • Page 36 Operation TTL758CHN 3. When the log is supported on both ends (Fig. 12c), cut 1/3 the diameter from the top (overbuck). Then make the finished cut by underbucking the lower 2/3 to meet the first cut. Fig. 12c 4. When bucking on a slope always stand on the uphill side of the log (Fig.
  • Page 37 Operation TTL758CHN 6. If the wood diameter is large enough for you to insert a soft bucking wedge without touching the chain, you should use the wedge to hold the cut open to prevent pinching (Fig. 12f). Fig. 12f After use 1.

  • Page 38: Care And Maintenance

    Care and maintenance TTL758CHN The golden rules for care WARNING! Always switch the product off, disconnect it from power supply and let the product cool down before performing inspection, maintenance and cleaning work! Keep the product clean. Remove debris from it after each use and before storage.
  • Page 39 Care and maintenance TTL758CHN Sprocket wheel NOTE: It is not necessary to remove the saw chain (3) to lubricate the sprocket wheel. Lubrication can be done on the job. 1. Clean the sprocket wheel (5). 2. Using a disposable lube gun, insert the needle nose into the lubrication hole (Fig.
  • Page 40 Care and maintenance TTL758CHN 1). Disassemble the guide bar (4) and saw chain (3) in reversed order from assembly. 2). Check the oiling port (11) for clogging and clean if necessary to ensure proper lubrication of the guide bar and saw chain during operation.
  • Page 41 Care and maintenance TTL758CHN 6). Turn the guide bar 180° to allow even wear, thereby extending the life span of the guide bar (4). 7). Check the saw chain for possible wear and damages. Replace it with a new one if required. Experienced user can sharpen a dull saw chain (see section “Saw chain sharpening”...
  • Page 42 Care and maintenance TTL758CHN 3). To sharpen the chain proceed as follows: - Use protective gloves. - Ensure the chain is correctly tensioned. - Engage the chain brake to lock the chain on the bar. 4). Use a chain file, whose diameter is 1.1 times the cutting tooth depth.
  • Page 43 Care and maintenance TTL758CHN Repair This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Storage 1. Clean the product as described above.
  • Page 44 Care and maintenance TTL758CHN Power cord If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a safety hazard Plug replacement (for UK only) If you need to replace the fitted plug, then follow the instructions below.

  • Page 45: Trouble Shooting

    Troubleshooting TTL758CHN Trouble shooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these...

  • Page 46: Recycling And Disposal

    Recycling and disposal TTL758CHN Recycling and disposal Waste electrical products should not be disposed of withhousehold waste. Please recycle where facilities exist. Check with your Local Authority or local store for recyclingadvice.

  • Page 47: Guarantee

    Guarantee TTL758CHN Guarantee This TITAN product carries a guarantee of 24 months. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased. This guarantee specifically excludes losses caused due to:...

  • Page 48: Technical Specifications

    Technical specifications TTL758CHN Technical specifications > Rated voltage: 230 - 240 V~ 50Hz > Rated input power: 2000 W > Rated no-load speed: 7900 /min > Oil tank volume: 150 ml > Weight assembled: 5.1 kg > Saw chain type: Oregon 91PJ056X >...

  • Page 49: Ec Declaration Of Conformity

    Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Declare that the product Designation: 2000W CHAIN SAW Model: TTL758CHN Complies with the following directives: 2006/42/EC - Machinery Directive 2014/30/EU - Electromagnetic Compatibility Directive 2011/65/EU - Restrictions of the Use of Certain Hazardous Substances in Electrical and...
  • Page 52 Manufacturer,Fabricant,Producent,Producător,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square, London, W2 6PX United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products www.diy.com To view instruction manuals online, visit www.kingfisher. www.screwfix.com com/products www.screwfix.ie www.castorama.fr Pour consulter les manuels d’instructions en ligne,...
