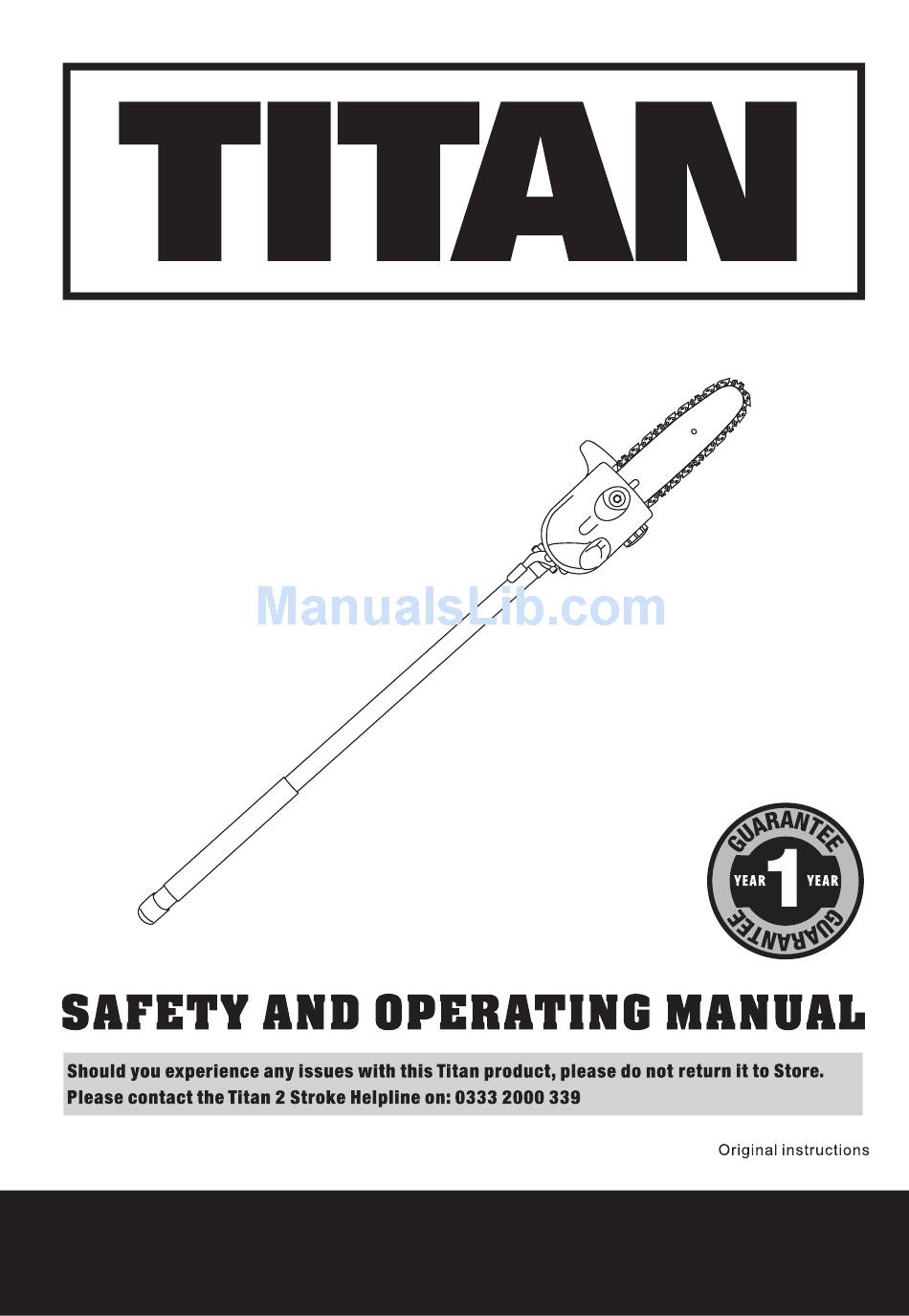

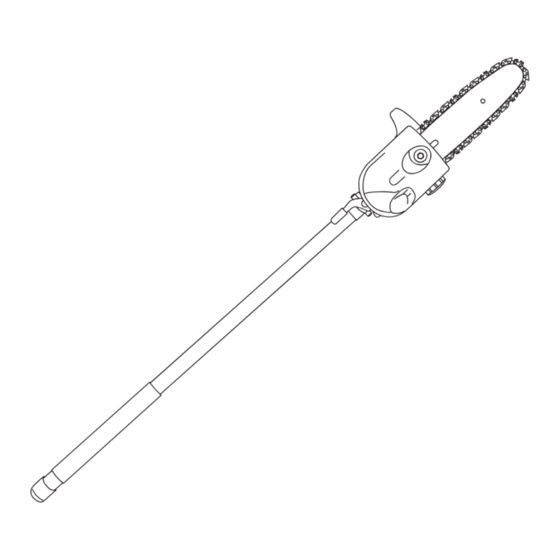

  • Page 1 (Version 1.0_201508) Pole Pruner Attachment TTL650GDO...

  • Page 3: General Safety Instructions

    4. Dress properly! Do not wear loose clothing or jewellery, which can be caught in moving parts. Use of sturdy gloves, non-skid footwear and safety glasses is recommended. 5. Use extra care when handling fuels. They are flammable and the vapours are explosive. The following points should be observed. Pole Pruner Attachment TTL650GDO...
  • Page 4 - Use only an approved container. - Never remove the fuel tank cap or add fuel with the power source running. Allow engine and exhaust components to cool down before refuelling. - Do not smoke. when operating fueling or starting this machine . - Never refuel indoors or in confirmed spaces.
  • Page 5 18. Beware of overhead power lines. Do not use the product in any position that causes any part to come within 10m of overhead electrical lines. 19. Never cut in areas where the cutting attachment is out of sight. Pole Pruner Attachment TTL650GDO...
  • Page 6 Warning Read the instruction manual Wear ear protection Wear eye protection Wear respiratory protection Wear safety helmet! Wear face protection! Gloves with saw protection Wear safety footwear Wear protective clothing Risk of long hair being drawn into air inlet. Risk of loose clothing being drawn into air intake.
  • Page 7 Do not smoke in the work area, around the product and in the vicinity of flammable materials! Contact of the guide bar tip with any object should be avoided. Correct direction of cutting-teeth. Refill chain oil Do not touch the cutting device until it stops completely. Pole Pruner Attachment TTL650GDO...
  • Page 8 Pruner Tool...
  • Page 9 Saw Chain Guide bar Locking lever Clutch 10. Drive sprocket 11. Tension pin 12. Tension screw 13. Bolt 14. Oiling port 15. Guide bar cover 16. Pruner shaft Tool Multi tool: Socket wrench / slotted screw driver Pole Pruner Attachment TTL650GDO...
  • Page 10 PRUNER Chain oil tank 150 ml Saw chain speed 21 m/s Max. cutting length 180 mm Guide bar length 203 mm Guide bar type 552912 Saw chain type 91PJ033X Chain pitch 9.525 mm (3/8”) Chain gauge (thickness of drive links) 1.27 mm (0.050”) Drive sprocket (teeth and pitch) 7 teeth x 9.525 mm(3/8”)
  • Page 11 NOTE: Fit the pruner shaft (16) directly to the upper shaft if no pole extension is required. Fit the pole extension to the upper shaft if required, and then fit the pruner shaft to the pole extension. Pole Pruner Attachment TTL650GDO...

  • Page 12: Saw Chain Tensioning

    Saw chain tensioning Always check the saw chain tension before use, after first cuts and regularly during use, approx. every five cuts. After initial operation, new chains can lengthen considerably. This is normal during the break-in period and the interval between future adjustments will lengthen quickly.

  • Page 13: Filling Chain Oil Tank

    Fig. 8 d). Wipe up spilled fuel with a soft cloth and refit the chain oil tank cap (1). NOTE: Always dispose of lubricant, used oil and objects contaminated with them in accordance with local regulations. Pole Pruner Attachment TTL650GDO...

  • Page 14: Checking Chain Lubrication

    Checking Chain Lubrication WARNING! Check the chain lubrication before each use. NOTE: This product is equipped with an automatic oiling system! The oiling system automatically delivers the proper amount of oil to the bar and chain! Checking the lubrication requires starting the engine. Before checking the product must be fully assembled and all instructions must have been read.

  • Page 15: Angle Adjustment

    When kickback occurs the product reacts unpredictably and can cause severe injuries to the operator or bystanders. c). With a basic understanding of 'kickback', the element of surprise can be reduced or eliminated. Sudden surprise contributes to the majority of accidents. Pole Pruner Attachment TTL650GDO...
  • Page 16 d). You should read all the safety warnings and user instructions carefully before attempting to operate this product. To avoid kickback: - Never work with a loose, overstretched or worn out chain - Ensure chain is sharpened correctly - Never work with the tip of the guide bar - Always hold the tool firmly with both hands - Always use a low kickback chain - Ensure correct chain tension...
  • Page 17 4. Cut thin branches Thin branches can be cut off with one single cut. To prevent the branch from slivering and buckling the branch should be cut off in several pieces. (See Fig. 15) Fig. 15 Pole Pruner Attachment TTL650GDO...
  • Page 18 5.Cut thick branches When cutting larger branches, three cuts are necessary as shown below: NOTE: Remove the branches lying on the floor regularly to avoid stumbling hazards. Check the oil level regularly and fill up if necessary. Switch the power off and disconnect from power source when leaving the product.
  • Page 19 4). Turn the tension screw (12) clockwise with the slotted screwdriver.and make sure the tension pin(11) is adjusted to its closer position. (See Fig. 19) Fig. 19 5).Take off the guide bar and chain. (Fig.20) Fig. 20 Pole Pruner Attachment TTL650GDO...
  • Page 20 6).Ensure that the tension pin (11) is adjusted to its far right position before assembly the checked or the new chain and guide bar. If not, turn the tension screw (12) anticlockwise with the slotted screwdriver. (See Fig. 21) Fig. 21 7).

  • Page 21: Guide Bar

    4). Clear residue from the rails on the guide bar (7) using a screwdriver, putty knife, wire brush or other similar tool. This will keep the oil passages open to provide proper lubrication to the guide bar (7) and saw chain (6). (See Fig. 26) Fig. 26 Pole Pruner Attachment TTL650GDO...

  • Page 22: Saw Chain Sharpening

    5). Check the guide bar 'rail' for wear: Hold a ruler (straight edge) against the side of the guide bar and 'cutter side plates'. If there is a gap between the ruler and guide bar the guide bar 'rail' is normal. If there is no gap (ruler flush against the side of the guide bar) the guide bar 'rail' is worn and needs to be replaced with a new one of the same type.
  • Page 23 10). Use a depth gauge measuring instrument to check the height of the depth gauge. Depth gauge measuring jigs are available from most reputable tool merchants. (See Fig. 30) Fig. 30 Pole Pruner Attachment TTL650GDO...
  • Page 24 Store the Tools 1).Remove and clean the saw chain and guide bar, spray with corrosion inhibiting oil. 2). If you use biological chain and bar lubricant completely fill the chain oil tank. 3).If the Tool is stored separately, fit the protective cap on the drive tube to avoid dirt getting into the coupling.

  • Page 25: Declaration Of Conformity

    Standards and technical specifications referred to: EN ISO 11680-1:2011 Authorised signatory and technical file holder Date: 20/08/2015 Signature: Name / title: Peter Harries / Quality Manager Titan Power Tools (UK) Ltd, Trade House, Mead Avenue, BA22 8RT Pole Pruner Attachment TTL650GDO...
