Kogan KAVWAC26YA User Manual

Vertical window air conditioner (reverse cycle)
Hide thumbs Also See for KAVWAC26YA:
Table of Contents

Advertisement

Quick Links

Download this manual
VERTICAL WINDOW AIR
CONDITIONER (REVERSE CYCLE)
2.6KW
KAVWAC26YA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KAVWAC26YA and is the answer not in the manual?

Questions and answers

Related Manuals for Kogan KAVWAC26YA

Summary of Contents for Kogan KAVWAC26YA

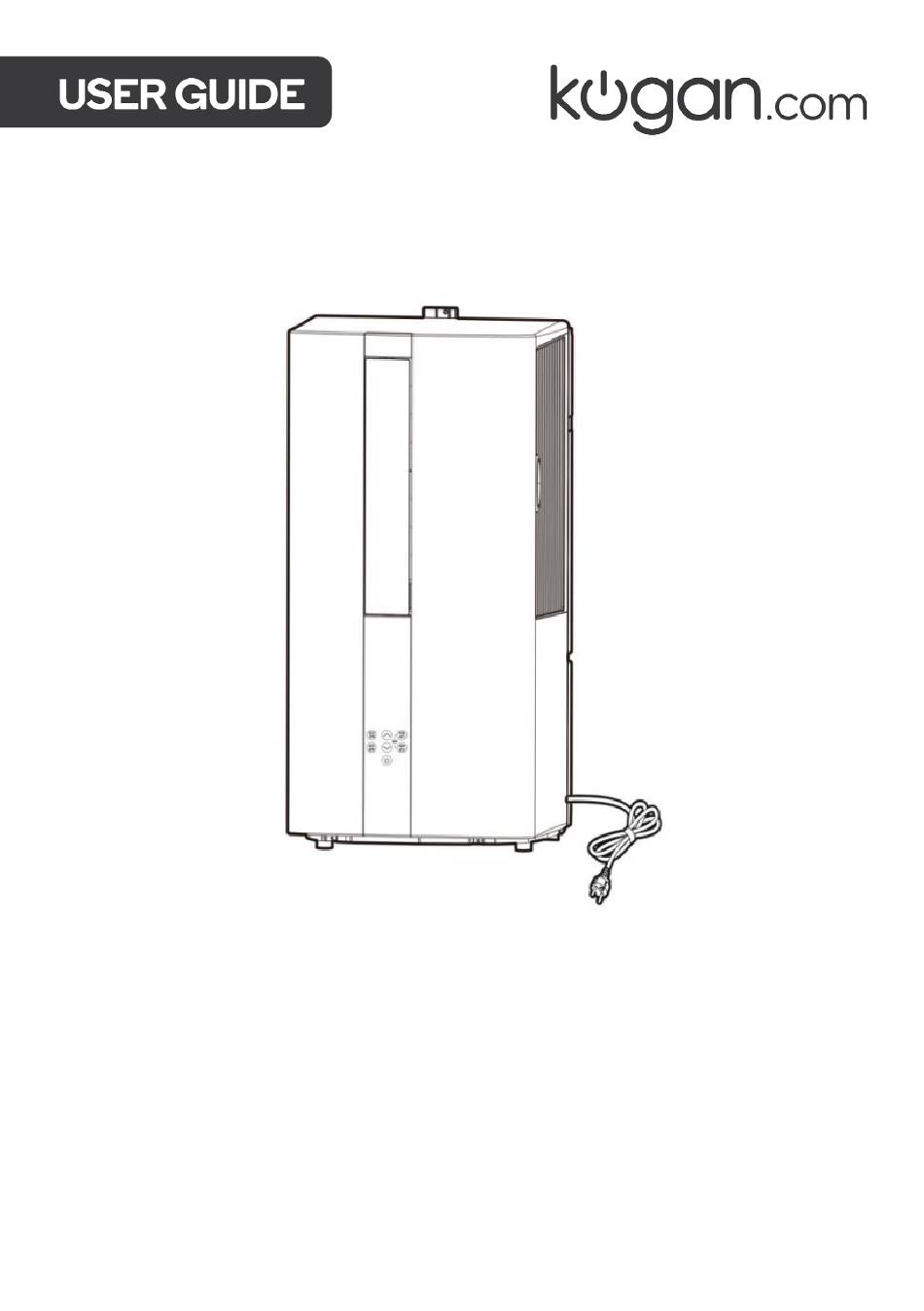

  • Page 1 VERTICAL WINDOW AIR CONDITIONER (REVERSE CYCLE) 2.6KW KAVWAC26YA...
  • Page 2 Safety & Warnings Components Before First Use Installation Control Settings Operation Cleaning & Care Troubleshooting Specifications Notes...

  • Page 3: Safety And Warnings

    (Note: Refer to the installation manual). • Please follow the correct wiring connection type when operating or repairing. • If the power cord is damaged, cease use immediately and contact help.Kogan.com for support. • Do not use the device in an explosion-hazardous room.
  • Page 4 • If you notice damage to the power plug or power cord, cease use immediately and contact help.Kogan.com for support. • When placing the device, pay attention to the minimum distance from walls and other objects and the storage and operating conditions specified in the "Maintenance"...
  • Page 5 COMPONENTS Front panel Outdoor air inlet Vertical blade (auto swing) Outdoor water outlet Level blade (manually swing) Outdoor air outlet Indoor air inlet Standard mounting bracket Operation panel Base plate Indoor water outlet Automatic drain outlet Back panel...

  • Page 6: Before First Use

    BEFORE FIRST USE Drain outlet Automatic drain outlet Drain hose Automatic drain During cooling/dehumidification operation, the machine has self-evaporation technology, Condensed water helps dissipate heat, when the water full indicator "FL" appears in ultra- high humidity weather, you can manually open one of the drain outlets or automatically drain after shutting down (Delay 15 minutes to start smart drainage after shutdown) Note: When installing install the automatic drain hose, then the machine will automatic...
  • Page 7 Automatic drainage during the heating operation Installation instructions of automatic drain. Back Machine Front Drain hose Automatic drain Note: As shown in the figure, when installing the drain hose; • firmly insert the hose to the drain outlet • ensure the drain hose is inclined downward •...

  • Page 8: Installation

    If you hear abnormal sounds while using the air conditioner, consult your dealer. Electrical safety Qualifications must be made for electrical and groundwork. For more information, consult help.Kogan.com for support. Installation of earth and earth leakage circuit breakers Grounding work and earth leakage breakers are required to prevent electric shock.
  • Page 9 Power safety • Avoid using an extension cord or connect the power cord to other electrical equipment which may cause danger. • Even if there are 2 power sockets, use them separately and check if the outlet is 220V 16A or higher •...
  • Page 10 Frame parts description ① Standard frame ② Fix plate ⑦ Frame screws ⑧ Flexible side panel ③ Sealing skin ⑨ Sealed stretch skin ④ Body fixing screw ⑩ Slide fixing screw ⑤ Machine lock ⑥ Fixed side plate outdoor indoor Fix plate: (x2) up &...
  • Page 11 When accessories and parts are not in use, please keep them in safe place. Window Installation Instructions Window Type • Window frames should have grooves. • If there are no grooves, or the location is difficult to install, contact help.Kogan.com for support.
  • Page 12 Window Size Requirements 90 ~ 145cm 150 ~ 205 (180~ 235) cm 60 (90) cm Standard frame: The opening width of the window should be more than 46 cm. (2) The height of the window opening must be more than 90 cm and the maximum cannot exceed 145 cm.
  • Page 13 Notes: The size of the installation window should not exceed the size that can be installed on the window frame; For the connection between the extension bracket and the standard bracket, see the extension bracket installation instructions. Complete Diagram 90 ~ 145cm Outdoor Indoor Choose installation location...
  • Page 14 Consider noise during installation When installing, choose a location that can withstand the weight of the air conditioner without increasing operating noise or vibration. Choose a location so that hot air and driving noise from the outdoor air outlet of the air conditioner do not disturb the neighbours If an object is placed near the outdoor air outlet of the air-cooled air conditioner, the function will be weakened and the noise will increase.
  • Page 15 Bracket Card Product Installation Location Indoor Bracket Fixing Screw Production Board First groove in window Note: After the mounting bracket is stretched, the upper mounting position is the same as this figure. Bracket Installation Steps ⑩ Slide ⑧ Internal Frame Fixing ①...
  • Page 16 When the standard mounting frame is placed on the window, the bracket retaining plate of the mounting frame is installed in the first groove of the window (see the installation window location diagram). To increase the height of the mounting frame, stretch the inner frame ® upward to ensure that the bracket retaining plate above the mounting bracket is installed in the first groove above the window.
  • Page 17 Special Installation Method Installation methods that require window production panels Aluminium Window Indoor Outdoor More than 63mm Upper window frame Less than 8mm Less than 8mm Lower window frame More than 63mm Note: Attach the sealing glue between the window protection plate and the window frame on the underside of the window to make it waterproof.
  • Page 18 Window production plate Production plate Self-tapping Wood screws screws Production plate 4 X 20 (6 Pcs) ST4 X 12 (6 pcs) Sealing glue Close to window frame Window production plate: Install near the edge of the window Wooden Window Outdoor Indoor Top of the window frame Bottom of the window frame...
  • Page 19 Note: Install the window protection panel in a position where you can open and close the window. Attach the sealing glue between the window protection plate on the underside of the window and the window frame to make it waterproof. Window production plate Production plate Align the side...
  • Page 20 Notes: • If the window cannot be closed after proper installation, install it on the left side. • Attach the sealing glue between the window protection plate on the underside of the window and the window frame to make it waterproof. Window production plate Production plate Align this side...
  • Page 21 Install the standard mounting bracket to the window production plate Note: Ensure that the window can be completely closed after installation without hitting the mounting bracket. Aluminium window Wooden window Iron window Indoor Outdoor Outdoor Indoor Indoor Outdoor Window production plate Window production plate Window production plate Fixing the upper screws (2)
  • Page 22 Installation Method and Steps of Vertical Window Machine Note: After receiving the product, install it after waiting at least two hours to ensure Refrigerant stability. ④ Body fixing screws ⑤ Machine lock Remove the fuel age fixing from the standard mounting frame and save it. Real panel Recessed part Frame inner...
  • Page 23 Place the base of the air conditioner on a standard mounting bracket, the two sides of the bottom and the black seals on the two sides of the bracket are attached respectively and the boss at the bottom of the bracket snaps into the groove of the chassis and is put in place.
  • Page 24 Window Fixing Lock Installation Window 25-42mm After the window machine is installed, install the window fixing lock on the side of the mobile window without the window machine and turn the knob to make the window fixing lock firmly against the window. Window groove Window Window...
  • Page 25 Window Machine Disassembly When disassembling the window machine, please operate in the reverse order of the screw ④ of the fuselage, please press and hold the fuselage first and then push the vertical window machine installation method and steps. Note that after removing the fixing machine lock ⑤...

  • Page 26: Control Settings

    CONTROL SETTINGS The operation panel & Remote controller Child lock icon Timer icon Celsius icon Digital display Time icon Fan speed icon Auto icon Auto Cool Dry icon Cool icon Heat icon Swing Heat Fan Swing icon Fan icon Mode Up/Down key Lock Child lock...
  • Page 27 Work mode flowchart: Mode switching sequence：Auto→Cool→Dry→Heat→Fan， Cool Heat Auto Sleep Child lock Time icon Swing Swing Celsius icon TURBO Follow Me Turbo icon AUTO Fan speed Auto fan speed icon Quiet Fan speed blade...
  • Page 28 Mode lock Timer Swing Sleep Follow Turbo Self- Quiet Mode Clean...
  • Page 29 Power: Turn the air-conditioner ON/OFF Mode: Press this button to switch between auto → cooling → heating → dry → fan modes (If the machines have heating function). Up/Down: Press to increase/decrease the temperature when auto, cooling and dehumidification modes, press to increase/decrease the setting time when timer mode. Fan speed: Press to select the fan speed:1st speed→2nd speed→3rd speed→4th speed→...

  • Page 30: Operation

    OPERATION Working mode 1. Auto mode • Press the mode key to select the automatic mode while the machine is on. At this time, the corresponding indicator on the panel lights up. • In this mode, the product will automatically adjust the corresponding operating function according to the current ambient temperature.
  • Page 31 3. Dry mode • Press the mode key to select the dehumidification mode while the machine is on. The corresponding indicator lights up. • Set temperature is same as cooling mode. • Fan speed is not adjustable. • Press the swing key to turn the swing function ON or OFF. 4.

  • Page 32: Cleaning And Care

    CLEANING & CARE Maintenance Cleaning: Turn off the unit and remove the plug before cleaning and maintenance. 1. Cleaning surface Wash the surface with a soft, damp cloth. Do not use chemical reagents such as benzene, alcohol or gasoline. Otherwise, the surface of the air conditioner will be damaged or even the whole machine.
  • Page 33 ① Hold the buckle on the grille by hand, rotate the inlet grille to open and then pull out the filter net from the interior of the grille. Note: the inlet grid can only be opened 7 ~ 8 degrees, ②...

  • Page 34: Troubleshooting

    TROUBLESHOOTING Do not repair or disassemble the air conditioner yourself. Unqualified repairs will void the warranty card and may cause damage to the user or its property. Error code Description Compressor drive IPM failure PFC /IPM failure Compressor starts failure Compressor running out of step (compressor off position) Position detection circuit failure Phase current over-current protection...
  • Page 35 Exhaust temperature protection Outdoor coil overload protection Indoor DC fan feedback failure Indoor coil overload protection Indoor coil freeze protection Indoor coil sensor failure Indoor ambient temperature sensor failure Indoor EE failure Splashing water motor feedback failure Fan failure Water full protection Problem Cause Solution...
  • Page 36 The battery is flat. Change battery Check the tube temperature sensor and The tube temperature sensor senses related circuits. Contact an abnormal temperature. help.Kogan.com for support. Check the room temperature sensor and The room temperature sensor senses related circuits. Contact an abnormal temperature.

  • Page 37: Specifications

    SPECIFICATIONS Performance Cooling capacity 8870 BTU/hr, 2.6kW Heating capacity 9900 BTU/hr, 2.9kW Dehumidification capacity 1.1L/hr Power 0.87kW Air flow volume 370m³/hr Maximum coverage area 22.8m² Cooling temperature range 16–30°C Swing 115° left and right Power Power supply 220–240V, 50Hz Current rating 4.3A Current (cooling) 4.3A...
  • Page 38 NOTES...
  • Page 40 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
