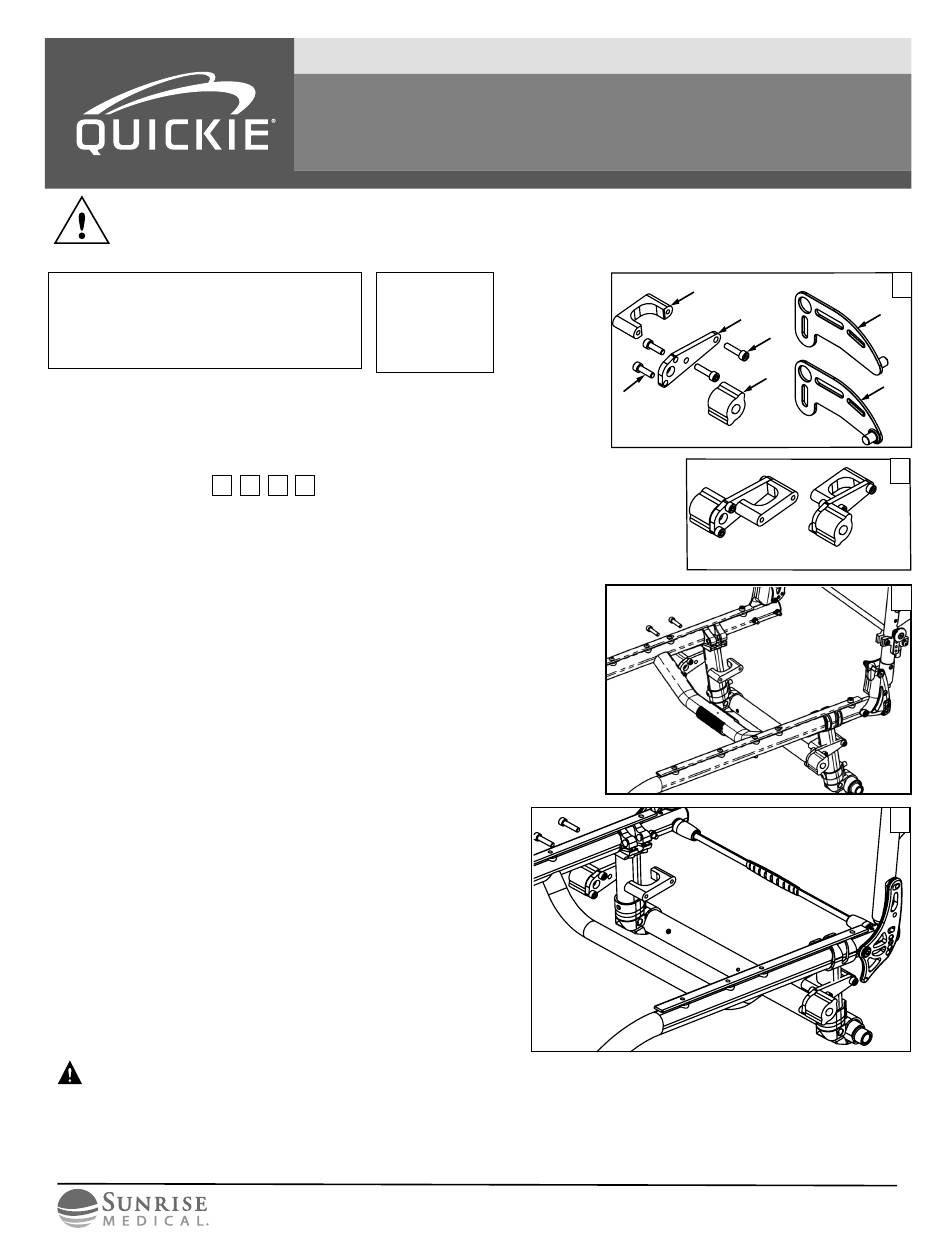

Please read these instructions carefully before beginning the assembly. Failure to understand and
follow assembly instructions may result in injury to the technician and/or end user and may void
the warranty. If you have any questions call Sunrise Medical Technical Support at (800) 333-4000.
Parts:
1. Pin sleeve (x2)
5. Socket head screws
2. Axle clamp (x2)
3. Axle bracket (x2)
6. Clamp bracket (x2)
4. Socket head screws
1/2-in (x4)
A. PRE-ASSEMBLY
1. Prep the chair:
a. Remove the wheels.
b. Place the chair on a fl at work surface
or workbench for best assembly results.
1
B. XTENDER MOUNTING
1. Assembly of frame mounts:
a. Using a 5mm hex key, assemble the pin sleeve (item 1) to
the axle bracket (item 3) using the 1/2-in screws (item 4).
Assemble both left and right assemblies and note
orientation (Fig 2). Do not fully tighten until the mounting
hardware is on the frame.
b. Fit axle clamp (item 2) around frame axle. Attach assembly
from step 1 to clamp using 5/8-in screws (item 4). Leave
loose. See fi gures 3 and 4.
DEALER/TECHNICIAN WARNING
Attention dealers and qualifi ed technicians, do not operate or service this device without fi rst reading the owner's manual.
If you do not understand the instructions and warnings in the owner's manual please contact the Quickie Technical Service
Department before operating and/or servicing the Quickie device. Failure to do so may result in damage and/or injury.
Find more information and important warnings in the Xtender owner's manual or at: www.SunriseMedical.com.
Required tools:
1. 5mm hex key
5/8-in (x4)
2. Torque wrench
2
3 4
Sunrise Medical 2842 N. Business Park Ave Fresno, CA 93727 USA
Customer Service: +1(800) 333-4000
or visit www.SunriseMedical.com
QUICKIE NITRUM/QUICKIE 7R/QUICKIE Q7
5
XTENDER KIT
2
3
4
1
Right Side
Left Side
Full assembly
reference
Nitrum
Right
Full assembly reference
7R/Q7
Right
© 2022 Sunrise Medical (US) LLC
06/2022 243956 Rev.B Page 1of2
1
6
Right
6
Left
2
3
Left
4
Left
