Quickie SEDEO PRO
This manual must be given to the user of this
Supplier:
wheelchair.
User:
Before using this wheelchair read this entire
manual and save for future reference.
®
Quickie SEDEO PRO
Distribuidor:
Este manual debe ser entregado el usuario de
esta silla de ruedas.
Antes de usar esta silla de ruedas, lea este manual
Usuario:
en su totalidad y guárdelo para futura referencia.
Cada una de las sillas se envía con un manual de instrucciones en inglés. El manual en español y francés
está disponible en formato PDF en nuestra página en Internet: www.SunriseMedical.com. Ingrese a la
página del producto específi co para descargar el manual, o comuníquese con el proveedor autorizado
de Sunrise Medical.
®
Quickie SEDEO PRO
Ce manuel doit être remis à l'utilisateur de ce
Au Fournisseur:
fauteuil roulant.
Avant d'utiliser ce fauteuil roulant, lisez l'intégralité
Utilisateur:
de manuel et conserver pour référence future.
Chaque fauteuil est livré avec un manuel d'instructions en anglais. Les versions en espagnol et en
français sont à votre disposition en format PDF sur le site : www.SunriseMedical.com. Veuillez vous rendre
à la page de votre produit pour télécharger le manuel dans la langue souhaitée, ou contactez un
fournisseur agréé Sunrise Medical.

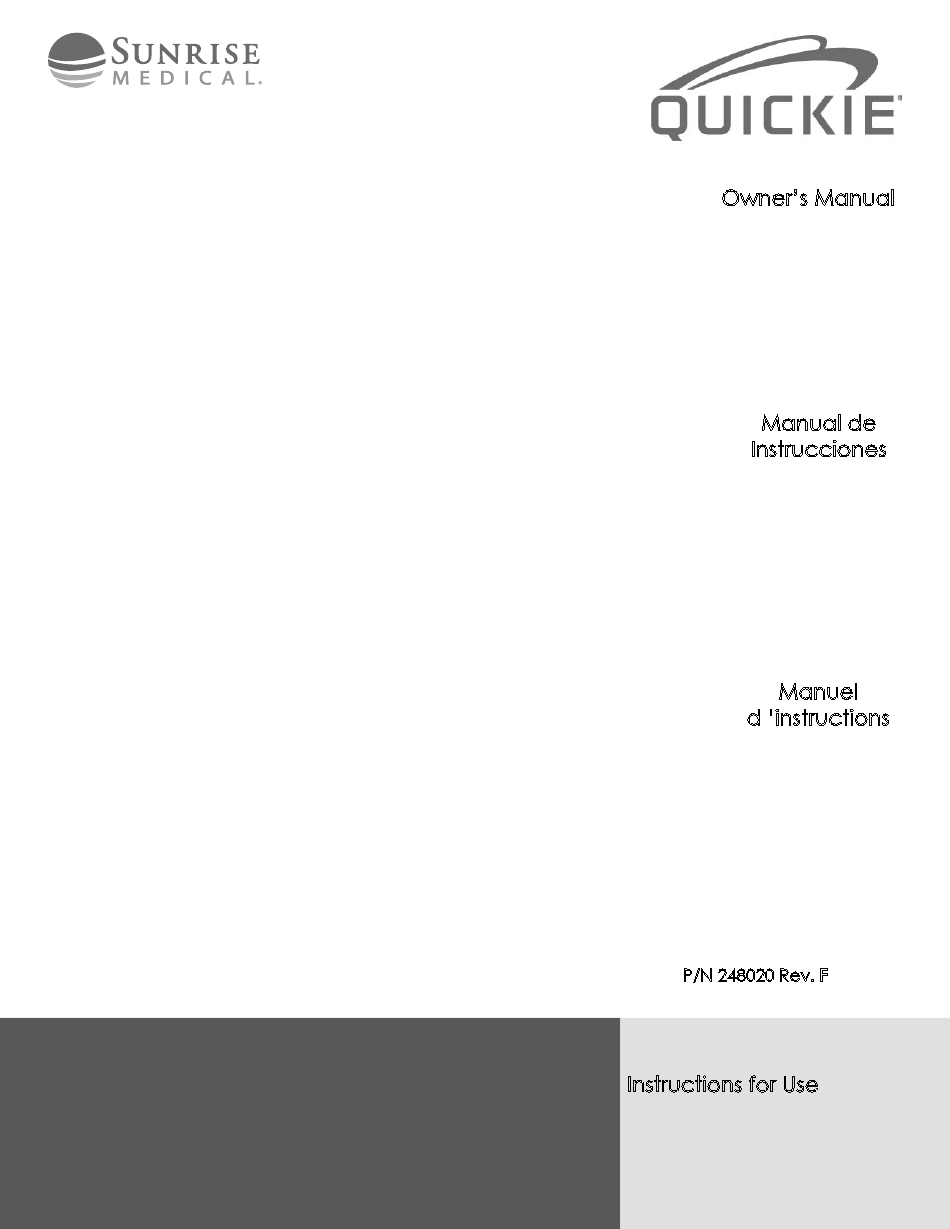

QUICKIE SEDEO PRO
Seating Manual
®
®
®
®
®
Instructions for Use
Owner's Manual
Manual de
Instrucciones
Manuel
d 'instructions
P/N 248020 Rev. F

Advertisement

Table of Contents
loading

Related Manuals for Sunrise Medical Quickie SEDEO PRO

Summary of Contents for Sunrise Medical Quickie SEDEO PRO

  • Page 1 ® ® Quickie SEDEO PRO This manual must be given to the user of this Owner’s Manual Supplier: wheelchair. User: Before using this wheelchair read this entire manual and save for future reference. ® ® Quickie SEDEO PRO Distribuidor: Este manual debe ser entregado el usuario de esta silla de ruedas.

  • Page 2: Introduction

    Sunrise dealer. Please feel free to write or call us at the address and telephone number below: SUNRISE MEDICAL (US) LLC Customer Service Department 2842 N. Business Park Avenue...

  • Page 3: Table Of Contents

    ® ® Quickie SEDEO II. TABLE OF CONTENTS INTRODUCTION ..................2 5.10 Pre-set headrest.................21 TABLE OF CONTENTS ................3 5.11 Pre-set fi xed/swing away controller ..........22 5.12 Pre-set laterals ..................23 USER INFORMATION ................4 5.13 Lap belt/seating positioning belt ..........24 1.1 This user manual ................4 1.2 For further information ..............4 USING THE SEATING SYSTEM ............25 1.3 Symbols used in this manual ............4...

  • Page 4: User Information

    Do not use your wheelchair until this entire manual (all booklets) has been read and understood! If one of the user manuals was not included with your wheelchair, please contact your Sunrise Medical authorized dealer immediately. 1.2 For further information Please contact your Sunrise Medical authorized dealer if you have any questions regarding the use, maintenance, or safety of your wheelchair.

  • Page 5: Safety

    Fig. 2.2 lifespan of the wheelchair. Replace or repair all illegible or damaged signs, symbols, and instructions immediately. Please contact your Sunrise Medical authorized dealer for assistance. Fig. 2.1: Warning – Danger of fi nger entrapment (pinch point). Fig. 2.2: Warning –...

  • Page 6: Safety: General Warnings

    Wheel locks are designed to prevent the system from moving The vent tray must be mounted and maintained by a Sunrise Medical when stopped. They are not brakes. authorized dealer.

  • Page 7: General Description

    ® ® Quickie SEDEO 3.0 GENERAL DESCRIPTION General description This wheelchair is equipped with the Sedeo Pro seating system. The Sedeo Pro seating system provides excellent support for the head, torso, arms, and legs. Optimal body support ensures maximum independence for the wheelchair user.

  • Page 8: Warnings For Components And Options

    The belts must be snug, but must not be so tight that they interfere with breathing. You should be able to slide your open hand, fl at, between the If you use parts or make changes not authorized by Sunrise Medical it may belt and the rider.

  • Page 9: Power Seating Safety

    C-Me speeds. Please discuss the multiple seating system when the Tilt/Lift mechanism is in operation. creep and/or C-Me speeds with your Sunrise Medical authorized dealer. Lift, Tilt, or Combo Weight Capacity The powered lift, tilt and/or lift/tilt modular accessory for this system has a...

  • Page 10: Transit

    ® ® Quickie SEDEO 4.0 WARNINGS FOR COMPONENTS AND OPTIONS 4.17 Transit DANGER! Important Transit notes for the chair: If possible and feasible, the rider should transfer to the Original Equipment Manufacturer (OEM) vehicle seat and use the vehicle restraint. If the seating system is used for transport, it must be used in a forward-facing seating position during travel in a motor vehicle.

  • Page 11: Setting Up The Seating System

    Tool and calibration marks A M5 Allen key is supplied with the seating system. This can be used by a Sunrise Medical authorized dealer for adjusting all the seating system settings.

  • Page 12: Pre-Set Armrests

    ® ® Quickie SEDEO 5.0 SETTING UP THE SEATING SYSTEM 5.2 Pre-set armrests Flip back armrests / Single post removable armrests width (Fig. 5.4) Fine adjustments can be done with the armrest only. For larger adjustments also pre-set the seat plate width.

  • Page 13: Pre-Set Backrest

    ® ® Quickie SEDEO 5.0 SETTING UP THE SEATING SYSTEM 5.3 Pre-set backrest Backrest angle (Fig. 5.9) Turn (A) in order to adjust (B). Backrest height with fi xed back or reclining back (Fig. 5.10) Loosen (A) by one turn. Adjust (B) to the desired position.
  • Page 14 ® ® Quickie SEDEO 5.0 SETTING UP THE SEATING SYSTEM Armrest pad width To remove: (Fig. 5.14 and 5.15) Loosen screws (A). Remove armpad (B). Loosen screws (C) by one turn. Remove mounting plate (D). To position: (Fig. 5.16 and 5.17) Slide slot (E or F) onto clamp nuts (G).
  • Page 15 ® ® Quickie SEDEO 5.0 SETTING UP THE SEATING SYSTEM Armrest angle (Fig. 5.18) Loosen (A) by one turn. Adjust (B) to the desired position. Tighten (A). See section 9 for specifi ed torque values. Side guard height (Fig. 5.19) Loosen (A) by one turn.

  • Page 16: Pre-Set Reclining Fl Ip Back Armrests

    ® ® Quickie SEDEO 5.0 SETTING UP THE SEATING SYSTEM 5.5 Pre-set reclining fl ip back armrests Armrest height Fine or gross adjustment, it is a two-part process: Part 1 (Fig. 5.20) Loosen (A) in order to adjust (B). Part 2 (Fig. 5.21) Loosen (A) in order to adjust (B).

  • Page 17: Pre-Set Fi Xed Centermount Leg Rest (Short And Long)

    ® ® Quickie SEDEO 5.0 SETTING UP THE SEATING SYSTEM 5.6 Pre-set fi xed center mount leg rest (short and long) Removing the assembly (Fig. 5.25) Remove the 3 screws (A) and lower the footrest assembly from the seat. (Use a 5mm hex key) Lower leg length (Fig.

  • Page 18: Pre-Set Sedeo Seating Fi Xed Centermount Leg Rest

    ® ® Quickie SEDEO 5.0 SETTING UP THE SEATING SYSTEM 5.7 Pre-set Sedeo Seating fi xed center mount leg rest Removing the assembly (Fig. 5.28) Remove the two screws (A). (Use a 5mm hex key) Fold forward the neoprene cover (C). By hand, remove the two spacers (B).
  • Page 19 ® ® Quickie SEDEO 5.0 SETTING UP THE SEATING SYSTEM Lower leg length (Fig. 5.32) Loosen the two screws per footplate (D) and adjust to the desired height. (Use a 5mm hex key) When fi nished adjusting, tighten screws (D). (Use a 5mm hex key) See section 9 for specifi ed torque values.

  • Page 20: Pre-Set Swing Away Leg Rest

    Note: Change the height or knee angle if the footplate touches the caster wheel. CAUTION! Check after setup and/or adjustment of wheelchair. After the initial setup by the Sunrise Medical authorized dealer or after making any adjustments to the wheelchair, a check to confi rm that no interferences exist must be completed.

  • Page 21: Pre-Set Headrest

    ® ® Quickie SEDEO 5.0 SETTING UP THE SEATING SYSTEM Calf pad height (Fig. 5.39) Fig.5.39 Loosen (A) a few turns. Adjust (D) to the desired position. Tighten (A). See section 9 for specifi ed torque values. Calf pad depth (Fig. 5.39) Loosen (B) a few turns.

  • Page 22: Pre-Set Fi Xed/Swing Away Controller

    ® ® Quickie SEDEO 5.0 SETTING UP THE SEATING SYSTEM 5.11 Pre-set fi xed / swing away controller Bracket depth of the controller (Fig. 5.44) Loosen (A) by one turn. Adjust (B) to the desired position. Tighten (A). See section 9 for specifi ed torque values. Height of the controller (1) (Fig.

  • Page 23: Pre-Set Laterals

    ® ® Quickie SEDEO 5.0 SETTING UP THE SEATING SYSTEM 5.12 Pre-set laterals Laterals width (Fig. 5.47) Loosen (A) completely. Adjust (B) to the desired position. Tighten (A). See section 9 for specifi ed torque values. Laterals height (Fig. 5.48) Loosen (A) by one turn.

  • Page 24: Lap Belt/Seating Positioning Belt

    ® ® Quickie SEDEO 5.0 SETTING UP THE SEATING SYSTEM 5.13 Lap belt / seating positioning belt (Fig. 5.51) DANGER! This product is only to be used to position a single person in a wheelchair. Lap belts are not suitable for transit purposes. Approved occupant restraint systems must be used. Failure to heed these warnings may result in severe injury or death.

  • Page 25: Using The Seating System

    6.1 Getting in and out of the wheelchair (Transferring) Sunrise Medical recommends that you consult your health care provider for assistance in developing your personal front or side transfer technique to best suit your needs and avoid any personal injury.

  • Page 26: Preparing For Side Transfer

    ® ® Quickie SEDEO 6.0 USING THE SEATING SYSTEM 6.3 Preparing for side transfer DANGER! Move your system as close as you can to the seat you are transferring to. If possible, use a transfer board. Transfer as far back onto the seat surface as you can. This will reduce the risk that you will miss the seat or fall.

  • Page 27: Headrest

    ® ® Quickie SEDEO 6.0 USING THE SEATING SYSTEM 6.6 Headrest Removing / positioning the headrest (Fig. 6.9) Loosen knob (A). Slide (B) out of or into bracket (C). Tighten (A). Fig.6.9 6.7 Swing-away controller The joystick is mounted with a mechanism that allows the joystick to be locked in two forward positions. (Fig.

  • Page 28: Electric Seating Function

    ® ® Quickie SEDEO 6.0 USING THE SEATING SYSTEM 6.10 Electric seating function Fig.6.14 The seating system has an electric seating function. This function is the seat position to which all the memory seat positions (described in Section 7) come back to by pulling the joystick into the backward direction when in the seating memory mode.

  • Page 29: Saving A New Position To Memory

    ® ® Quickie SEDEO 6.0 USING THE SEATING SYSTEM 6.14 Saving a new position to memory Fig.6.17 Remove the rear cover of the backrest and connect a switch with a 3.5mm Jack to the I6 harness socket (A) on the CxSM (Complex Seating Module) (Fig. 6.17). Press the ”Mode”...

  • Page 30: Powered Seating Options

    Please stay clear of any powered actuator while the component is in motion. Sunrise Medical power mechanisms move over large ranges of travel. Users should be aware of their surroundings while components are in motion.

  • Page 31: Transportation Purposes

    ® ® Quickie SEDEO 8.0 REDUCING THE SEATING SYSTEM SIZE FOR TRANSPORTATION PURPOSES WARNING! The wheelchair can be reduced in size for transportation without a passenger. Any components of the seating system that can be detached easily should be removed. Store away such components safely so that they cannot cause injury or damage, or become damaged themselves.

  • Page 32: Maintenance And Cleaning

    Service Center. Contact a Sunrise Medical authorized dealer if found. The contact details of your local Sunrise Medical Service Center can be found Check wheelchair for any broken components, unusual wear, or other on the inside front cover of this booklet.

  • Page 33: Hygiene Measures When Being Re-Used

    * Daily = Before each use of the wheelchair. Quarterly = Every three (3) months. If fasteners are found to be loose a Sunrise Medical authorized dealer should tighten the fastener to the torque setting per size detailed below, unless stated otherwise in all appropriate owner’s manuals or instruction sheets (if applicable).

  • Page 34: Technical Specifications: Applicable Norms / Standards

    ® ® Quickie SEDEO 10.0 TECHNICAL SPECIFICATIONS: APPLICABLE NORMS / STANDARDS This product complies with the regulations and guidelines for medical aids and carries a CE symbol. The product meets the requirements and standards below. These are checked by independent institutions. Standard Defi...

  • Page 35: Sunrise Limited Warranty

    This is the exclusive remedy for consequential damages. WHAT AUTHORIZED DEALER MUST DO - 1. Obtain from Sunrise Medical, while this warranty is in eff ect, prior approval for return or repair of covered parts. Contact Customer __________________________________________________...
  • Page 36 Customer Service: 800.333.4000 In Canada 800.263.3390 Sunrise Medical 2842 Business Park Ave. Fresno, CA 93727 • USA ©2022 Sunrise Medical (US) LLC 01.2022 P/N 248020 Rev. F...
