Summary of Contents for Masalta MDRS65 Series

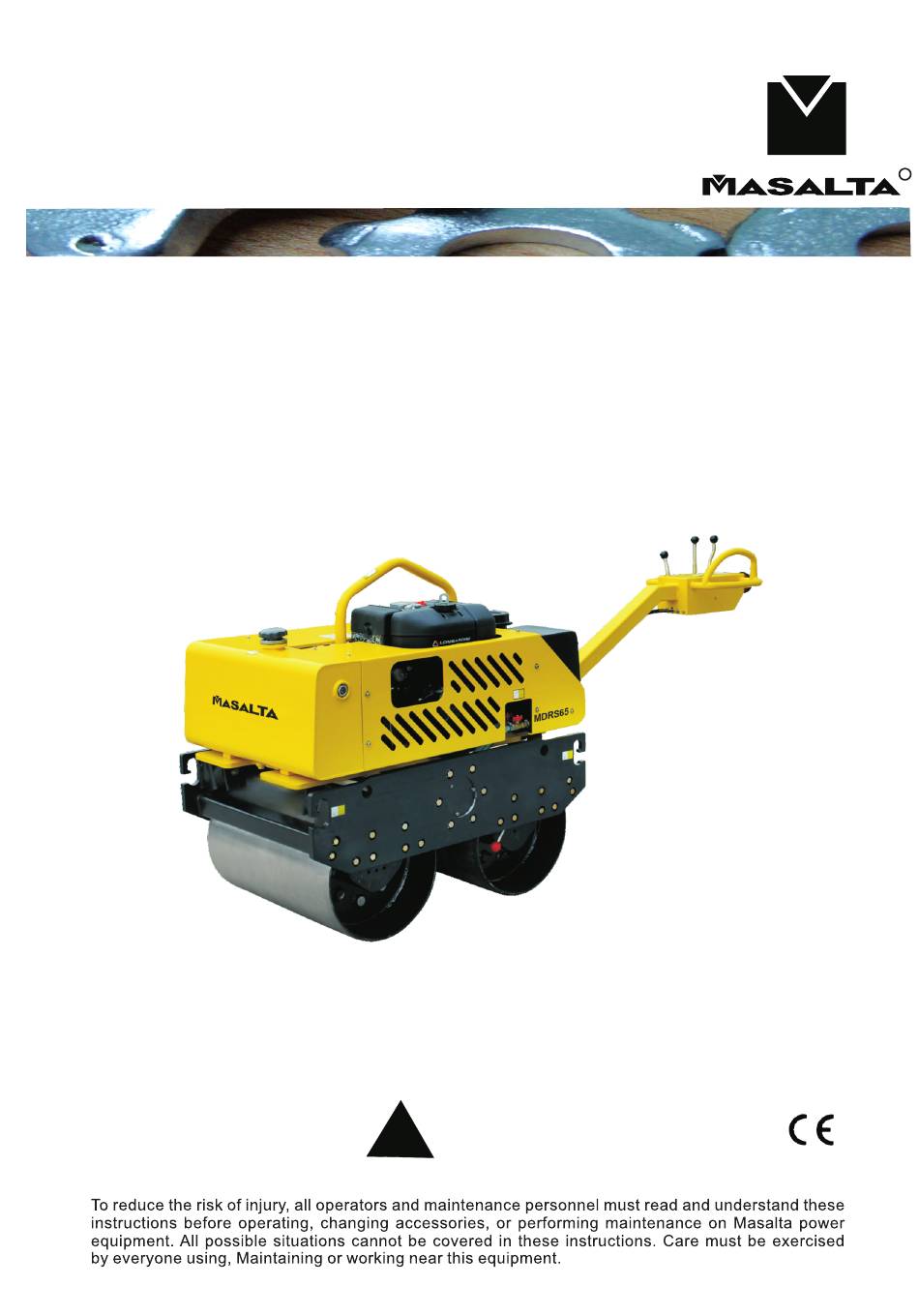

- Page 1 INSTRUCTION MANUAL DOUBLE DRUM VIBRATORY ROLLER MDRS65 SERIES WARNING...
-
Page 2: Table Of Contents
Content Preface ................... 2 Machine information ............... 3 Safety Alert ..................4 Application ..................6 Preparation work before starting ........... 6 Steps of start and stop ..............7-8 Operation information ..............9 Maintenance ................10-14 Storage ..................15 Troubleshooting ..............16-17 Specification ................. -
Page 3: Preface
Dangerous. There will be damage or personal injury to machine or yourself if operate un-properly. Attention There will be death possibility for operator. Alert! Responsibilities Masalta will not take any responsibility for the damage or injury to people、machine or other properties which caused by un-properly operation obey this manual. -
Page 4: Machine Information
Machine information MDRS65 1. Lifting Bar—for machine transportation. 2. Engine——Drive machine. 3. Hydraulic oil tank——Store hydraulic oil 4. Scraper——Remove the dirty from steel roller. 5. Parking brake——Press parking button, could control the machine movement(Brake located in left of behind roller) 6.Water tank ——Store water for sprinkler system。... -
Page 5: Safety Alert
For the safety for you and other people, please learn and understand the safety information completely.If you are not sure how to operate machine properly or have any questions, please consult with your supervisor or contact with dealer nearby or Masalta. Danger should be occurred with un-proper maintenance and operation. Read and understand this section enough before any maintenance. - Page 6 We try our best to avoid operation safety risk when design machine ,but unpredictable risk will exist always, they will cause treasure loss, person injury even death. If unpredictable risk happen, operator must stop the machine. Appropriate measures should be taken by operator and supervisor to eliminate danger. The risk should be noticed to The manufacturer to improve the design in future.
-
Page 7: Application
Application The machines are used in basic preparations, Driveway, foundation, curbs and also could be suitable to repair and maintenance jobs such as Streets, highways and sidewalks Preparation work before starting Checking before starting Checking must be executed before working time or after 4 hours from working start. If you need more detailed guidance, please read section”Maintenance”.Don’t operate machine before troubleshooting if there is any malfunction. -
Page 8: Steps Of Start And Stop
Steps of start and stop Improper operation can lead to hazards. Before any repair and maintenance, first read and understand this chapter. Caution Before starting the engine, make sure the drive lever at the neutral position, the vibrating rod is in the OFF position, the parking brake is in the ON position. 1. - Page 9 8. The operator's control（graph 2） Graph 2 A. Throttle lever Always keep the throttle lever operation at a high level. Note: Do not attempt to change the engine speed to change the speed of travel. B. Drive lever Push the lever forward to drive machine forward. Push lever back to drive the machine back.
-
Page 10: Operation Information
Operation information After complete "before starting" check items listed in the chapter, you can start the engine. Rollers mounted centrifugal clutch, which drives the hydraulic pump so that no need idling of the engine With the increase in the engine speed, the clutch will be combined, and the engine drives the hydraulic pump, and output hydraulic pressure driving the drum and vibrating mechanism. -
Page 11: Maintenance
Masalta authorized dealers to complete all the maintenance and repair. Using authentic replacement parts from Masalta, the use of counterfeit products can cause voiding of your warranty. Before any maintenance on the machine, turn off the engine. Place the machine on level ground, to ensure that the liquid level can be read correctly. - Page 12 Graph 4 2.2 Tighten the four screws on the pump bracket. When the belt is worn or broken, replace the belt. 3. Adjust distance of scraper 3.1Remove the scraper, erasing all dust, mud and asphalt.(Graph 5) Graph 5 3.2 Install scraper onto braket again, Fixed for properly cleaning roller 4.
- Page 13 Maintenance: Every 100 hours Graph 7 1. Vibration clutch mechanism（Graph 7） 1.1 Check that the vibration of the clutch mechanism to work properly。 1.2 Lubricate moving parts. 1.3 Check the V-belt case. When it is worn or broken, replace V-belts. Graph 8 Graph 9 2.
- Page 14 Maintenance: Every 500 hours The hydraulic oil and filters should be replace for the first time after 50 hours work for the new machine, later replaced every 500 hours. The user can be shortened or extended replacement time based on the quality of the environment and hydraulic oil.(No longer than 800hours) 1.
- Page 15 Graph 11 5. According to the adjusted neutral position direction, clockwise or counterclockwise rotate connecting lever end 6. Reconnect the lever end to on the drive shaft with a nut for security protection 7. Start the engine, increase the engine speed to the maximum. Observe whether the neutral position has been adjusted。...
-
Page 16: Storage
Storage For long-time storage, turn off fuel switch and operate engine, so that the fuel in the carburetor will be empty. After prolonged storage, the chemical composition of the fuel will deteriorate. When the machine needs to be stored for a long time, remove all the fuel from fuel tank. drain the fuel in the carburetor float chamber through drain plug. -
Page 17: Troubleshooting
Troubleshooting Problem Possible Reason Solution A ） Press and hold the decompression lever before A）Do not press the decompression starting lever B）Try several times before 1）Engine （Engine starter recoil） starting the engine。 Engine suddenly B）cold weather。 C）Fill the fuel。 stopped or not running。 C）... - Page 18 A ） Drain part lubricant。 B ） Hold Lubricating oil A）too much lubricant。 Vibration unit holding near the height of ） B）Too much or too little lubricant。 overheating / hydraulic oil the oil ruler engraved lines。 C）ngine output speed is too slow. tank overheating C）Clean air cleaner.
-
Page 19: Specification
Specification Model MDRS65L MDRS65K 2378×696×1130 Size（L×W×H）-mm Operation weight-kg 402×650 Drum size (φ×width) mm Centrifugal Force -kN 11.3 Travel speed-km/h 0～3.6 Maximum gradeability -% Frequency vpm-Hz Water tank capacity L Hydraulic oil tank capacity Engine Type LOMBARDINI 15LD350S KUBOTA E75-NB3 Type Air-cooled,4-cycle,Diesel Water-cooled,4-cycle,Diesel Power-hp(kw) -
Page 20: Warranty
2. Has not been tampered with or repaired by any unauthorized person. 3. The freight or fare from Masalta or authorized dealer caused by machine which is not covered by warranty. -
Page 21: Maintenance Record
MAINTENANCE RECORD PREVENTATIVE MAINTENANCE AND ROUTINE SERVICE PLAN The machine has been assembled with care and will provide years of service. Preventative maintenance and routine service are essential to the long life of your machine. After reading through this manual thoroughly, you will find that you can do some of the regular maintenance by yourself. -
Page 22: Ec Declaration
CE-KONFORMITÄTSERKLÄUNG DECLARACIÓN DE CONFORMIDAD DE LA CE DÉCLARATION DE CONFORMITÉ C.E. MASALTA ENGINEERING CO., LTD Weisi Road, Baohe Industrial Estate, HeFei 230051, China hereby certifies that the construction equipment specified hereunder / bescheinigt, da. das Bauger.t / certifica que la máquina de construcción / atteste que le matériel : Category / Art / Categoría / Catégorie:... - Page 23 Road, Ba aohe Industr rial Estate, H Hefei 23005 Tel: 86 6-551-64846 601, 648465 x: 86-551-64 4846616, 648 846626 E-mail: sa ales@masalt ta.com.cn, m masalta@ma ail.hf.ah.cn Http://w www.masalta a.com.cn Version n : 01/15/01...
