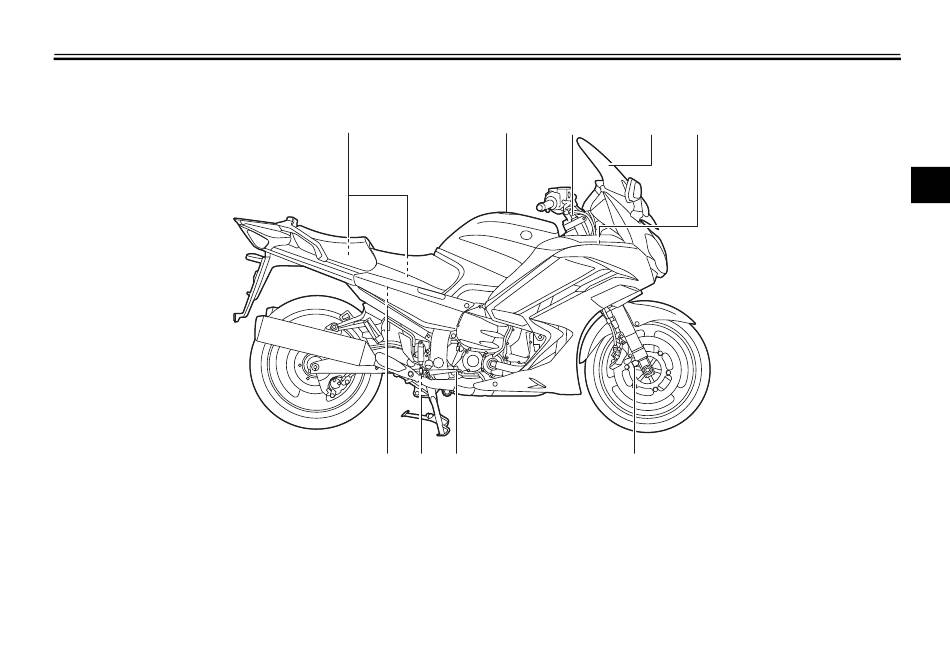

Right view

1. Storage compartment (page 4-34)
2. Fuel tank cap (page 4-27)
3. Front fork spring preload adjusting bolt (page 4-38)
4. Front fork rebound damping force adjusting knob (page 4-38)
5. Windshield (page 4-11)
6. Fuses (page 7-33)
7. Battery (page 7-32)
8. Front fork compression damping force adjusting screw (page 4-38)
1 2
11 10 9
9. Brake pedal (page 4-24)
10.Shock absorber assembly rebound damping force adjusting knob
(page 4-40)
11.Rear brake fluid reservoir (page 7-25)
