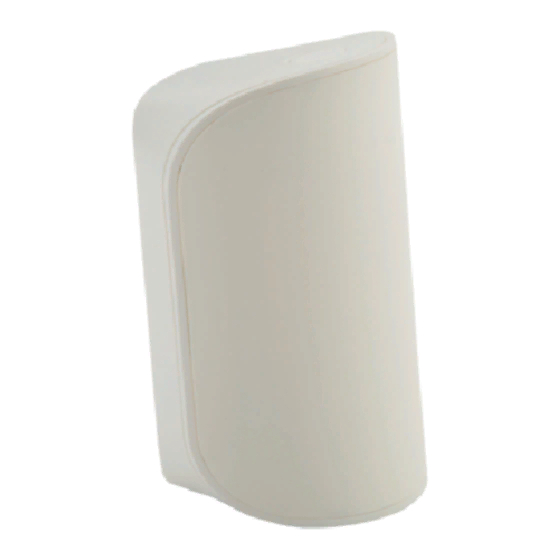

WST-741 Wireless PIR Motion Sensor with Pet Immunity
Installation Instructions and User Manual
1. Specifications
Frequency:
Operating Temperature:
Operating Humidity:
Battery:
Battery Life:
Compatibility:
Pet Immunity:
Supervisory Interval:
Coverage Area:
Light Immunity:
Coverage Pattern:
Side View:
7.5 ft
0 3 6 10 13
Top View:
0
3
6
10
13
16
19
23
26
29
33
36
40
29 26 23 19 16 13 9 6 3 0 3 6 9 13 16 19 23 26 29
319.5 MHz
32°-120°F (0°-49°C)
5-95% RH non-condensing 1x
CR123A, Lithium 3V DC up to 5
Years
GE, Interlogix, Qolsys receivers
Up to 50 lbs
Approximately 60 minutes 40
feet by 40 feet, 90° angle 2000
Lux
16 19 23 26 29 33 36 40
(feet)
0
3
6
10
13
16
19
23
26
29
33
36
40
(feet)
2. Package Contents
1x Sensor 1x Sensitivity Jumper
4x Screws & Wall Anchor 1x CR123A battery (installed)
2x Sensor Case Screw 1x Back Mounting 2-Sided Adhesive Tape
1x Manual 2x Side Mounting 2-Sided Adhesive Tape

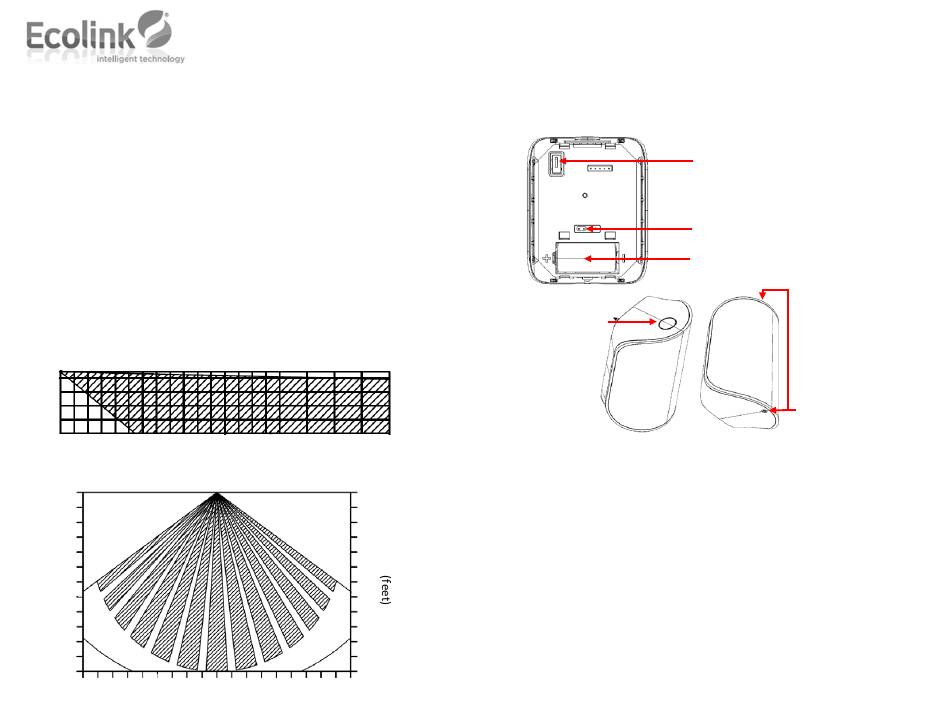

3. Component Identification
Case Release Button
4. Enrollment:
To enroll the motion sensor, set your panel into programming mode
according to the panel manufacturer's instruction. When prompted by the
panel, enter the 7 digit serial number printed on the sensor label. Make sure
the loop number is set to Loop 1.
Some panels can enroll your sensor by capturing the serial number
transmitted by your sensor. The sensor can be enrolled by triggering wireless
transmissions. Place the sensor into walk test mode by holding down the
sensor's tamper switch while inserting the battery. The red LED will begin to
flash for 30 seconds. When the LED stops flashing, the sensor can be triggered
by waving your hand in front of the motion sensor. The sensor will transmit
every time motion is detected. Trigger the motion sensor as many times as
necessary until the panel recognizes the sensor's serial number. Make sure
the loop number is set to Loop 1.
Tamper Switch
Sensitivity Jumper
CR123A Battery
Sensor Case Screws
