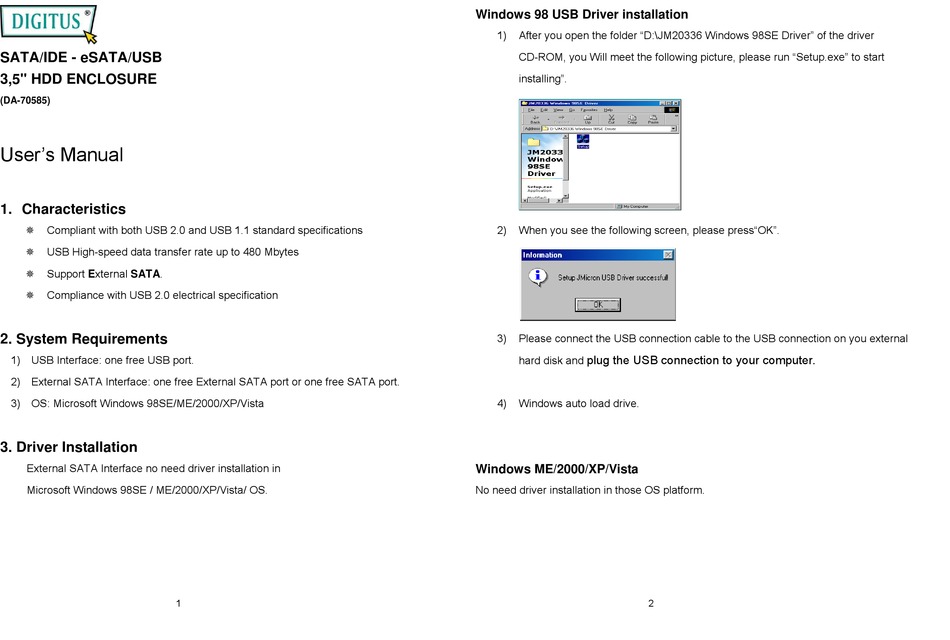

SATA/IDE - eSATA/USB
3,5" HDD ENCLOSURE
(DA-70585)
User's Manual
1. Characteristics
Compliant with both USB 2.0 and USB 1.1 standard specifications
USB High-speed data transfer rate up to 480 Mbytes
Support External SATA.
Compliance with USB 2.0 electrical specification
2. System Requirements
1) USB Interface: one free USB port.
2) External SATA Interface: one free External SATA port or one free SATA port.
3) OS: Microsoft Windows 98SE/ME/2000/XP/Vista
3. Driver Installation
External SATA Interface no need driver installation in
Microsoft Windows 98SE / ME/2000/XP/Vista/ OS.
1
Windows 98 USB Driver installation
1)
After you open the folder "D:\JM20336 Windows 98SE Driver" of the driver
CD-ROM, you Will meet the following picture, please run "Setup.exe" to start
installing".
2)
When you see the following screen, please press"OK".
3)
Please connect the USB connection cable to the USB connection on you external
plug the USB connection to your computer.
hard disk and
4)
Windows auto load drive.
Windows ME/2000/XP/Vista
No need driver installation in those OS platform.
2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Digitus DA-70585
Summary of Contents for Digitus DA-70585
- Page 1 After you open the folder “D:\JM20336 Windows 98SE Driver” of the driver CD-ROM, you Will meet the following picture, please run “Setup.exe” to start SATA/IDE - eSATA/USB installing”. 3,5" HDD ENCLOSURE (DA-70585) User’s Manual 1. Characteristics Compliant with both USB 2.0 and USB 1.1 standard specifications When you see the following screen, please press“OK”.
- Page 2 6. FAQ 4. Verification Q1: I could see the icon at the right down comer on the screen, but I still couldn’t find Please track the path “My computer→System Properties→Device Manager” and my external HDD. you should meet one item titled expand the item “Hard disk controllers”, “JM20336 a.Please make sure your HDD has been installed correctly.
- Page 3 7. CAUTION!! When using USB 2.0-interface model, external power is needed when HDD consumes power over 550mA. If you are not sure what OS you are using, please contact your PC dealer. Please don’t put this external enclosure in a humid or high-temperature environment.
- Page 4 1. Carefully remove cover from HD 5. Insert PATA hard drive with HD power Use screws (2pcs longer, 2pcs shorter) 12a. Plug eSATA cable into PC or laptop enclosure cable from the bottom of HD enclosure to 12b. Plug USB cable into PC or laptop tighten it 2.
