BV700 Series

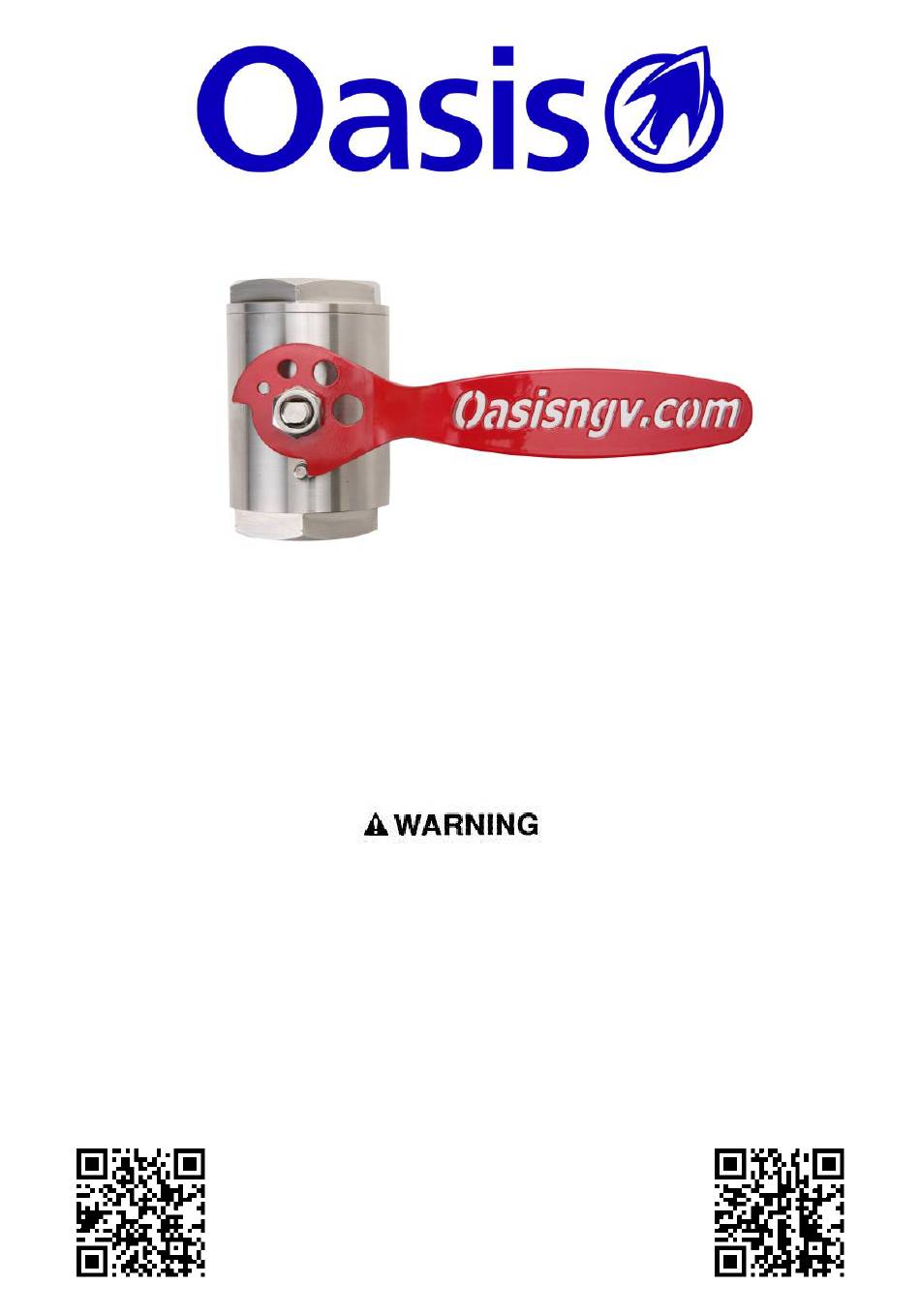

Ball Valve BSP
Instruction Manual
Failure to follow these instructions or to properly install and maintain this equipment could result in gas leak-
age, fire or explosion causing property damage and personal injury or death.
Oasis products must be installed, operated and maintained by trained and competent personnel in
accordance with all applicable local codes, rules and regulations in addition to the Oasis Instructions.
Oasis Engineering Ltd. will not be held liable in such circumstances where installation, operation and
maintenance procedures were performed by incompetent personnel resulting in improper assembly, unsafe
operation, equipment damage or personal injury.
Oasis recommends that all service technicians should watch the Product Servicing Video before attempting to
service this part.
Oasis Engineering Ltd
129 Birch Avenue, Tauranga, New Zealand.
T: +64 7 928 3808
E: info@oasisNGV.com
W: www.OasisNGV.com
Servicing Video
Instruction Manual
Advertisement
Related Manuals for Oasis BV700 Series
Summary of Contents for Oasis BV700 Series
- Page 1 Oasis products must be installed, operated and maintained by trained and competent personnel in accordance with all applicable local codes, rules and regulations in addition to the Oasis Instructions. Oasis Engineering Ltd. will not be held liable in such circumstances where installation, operation and maintenance procedures were performed by incompetent personnel resulting in improper assembly, unsafe operation, equipment damage or personal injury.
-
Page 2: Tools Required
High pressure gas and gas equipment can cause serious harm to both infrastructure and personnel if safety precautions are not followed. Oasis recommends considering the use of the following PPE when working with high pressure along with any other site specific health and safety requirements:... -
Page 3: Installation Instructions
3. Leak test on first use using snoop or soapy water. BV700-INS-09 2822 © Oasis Engineering Limited BV700-INS-09 2822 © Oasis Engineering Limited We reserve the right to modify product specifications without prior notice. We reserve the right to modify product specifications without prior notice. - Page 4 BV706 = 50mm BV706 = 19mm BV708 = 60mm BV708 = 19mm BV710 = 66mm BV710 = 22mm BV712 = 79mm BV712 = 22mm BV700-INS-09 2822 © Oasis Engineering Limited We reserve the right to modify product specifications without prior notice.
- Page 5 *It is normal for the service kit to include a ball with a small hole in the bottom ** only used when servicing actuated ball valves. ^ For low pressure service kits, seats will be supplied with an O-ring installed. The Complete Oasis Seal Kit must be used Tools Required Pick Tool...
- Page 6 6.Discard ball. BV702 - BV703 BV704 - BV706 - BV708 - BV710 - BV712 7. Remove Stem First. 7. Remove and Discard 2nd Seat. BV700-INS-09 2822 © Oasis Engineering Limited We reserve the right to modify product specifications without prior notice.
- Page 7 9. Remove Cap O-rings and Discard. 10. Clean Body and End Cap. Visually inspect parts for damage. BV700-INS-09 2822 © Oasis Engineering Limited BV700-INS-09 2822 © Oasis Engineering Limited We reserve the right to modify product specifications without prior notice.
- Page 8 3. Insert Stem Assembly. 3. Apply silicone grease to new seat and install. Take care not to pinch O-ring when installing low pressure seat Click BV700-INS-09 2822 © Oasis Engineering Limited We reserve the right to modify product specifications without prior notice.
- Page 9 Take care not to pinch installing low pressure seat O-ring when installing low pressure seat. BV700-INS-09 2822 © Oasis Engineering Limited BV700-INS-09 2822 © Oasis Engineering Limited We reserve the right to modify product specifications without prior notice.
- Page 10 7. Install gland and screw on handle nut. 8. Tighten stem nut. Recommended Handle Nut Torques: BV702=3Nm BV703=3Nm BV704=3Nm BV706=6Nm BV708=6Nm BV710=6Nm BV712=6Nm BV700-INS-09 2822 © Oasis Engineering Limited We reserve the right to modify product specifications without prior notice.
- Page 11 9. Servicing complete. Re–install as per the instructions on page 3. Important: Actuate valve 4 times before use to ensure initial sealing. BV700-INS-09 2822 © Oasis Engineering Limited BV700-INS-09 2822 © Oasis Engineering Limited We reserve the right to modify product specifications without prior notice.
