Removing The Interference Filter - Whirlpool WFW3090GW Service Manual

WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or
electrical shock.

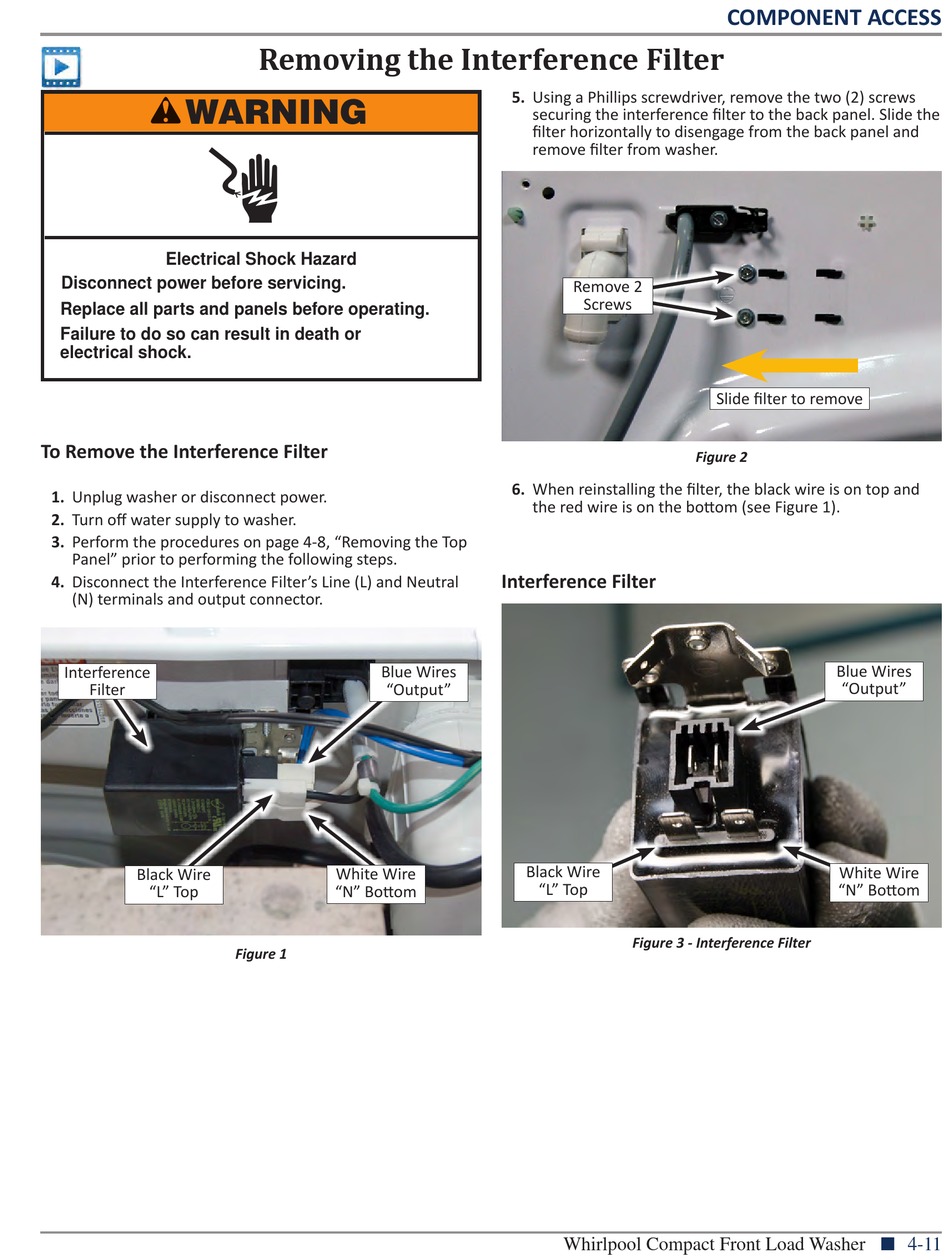

To Remove the Interference Filter
1. Unplug washer or disconnect power.
2. Turn off water supply to washer.
3. Perform the procedures on page 4-8, "Removing the Top
Panel" prior to performing the following steps.
4. Disconnect the Interference Filter's Line (L) and Neutral
(N) terminals and output connector.
Interference
Filter
Black Wire
"L" Top

Removing the Interference Filter

Blue Wires
"Output"
White Wire
"N" Bottom
Figure 1
5. Using a Phillips screwdriver, remove the two (2) screws
securing the interference filter to the back panel. Slide the
filter horizontally to disengage from the back panel and
remove filter from washer.
Remove 2
Screws
6. When reinstalling the filter, the black wire is on top and
the red wire is on the bottom (see Figure 1).
Interference Filter
Black Wire
"L" Top
Figure 3 - Interference Filter
Whirlpool Compact Front Load Washer
COMPONENT ACCESS
Slide filter to remove
Figure 2
Blue Wires
"Output"
White Wire
"N" Bottom
4-11
