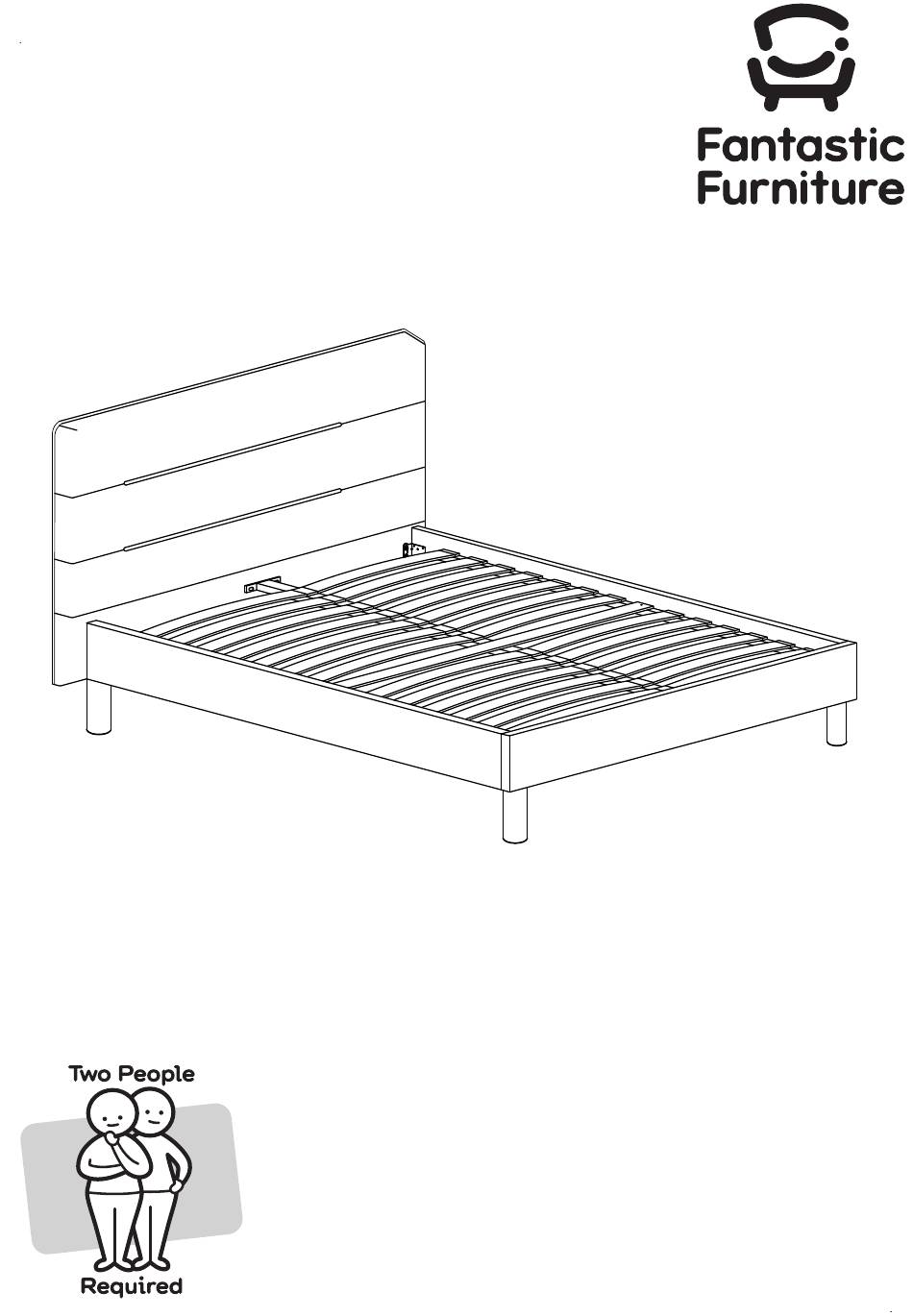

- Page 1 Version 1.0 Elliot Bed Double fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au fantasticfurniture.com.au...
-
Page 4: What You Need
What you need to assemble the product Headboard (P1) Other tools you need: Phillips Head Screwdriver Side Rail-R (P4) Leg(P8) Timber Cross Rail Side Rail-L Centre Rail (P5) Footboard (P3) (P6) (P2) Support Leg Brackets (P9) (P7) Support Leg (P7) Leg(P8) Parts list Box 1 :... - Page 5 Step 1 (P1) (P8) (P8) Attach 2 x legs (P8) to the bottom of headboard (P1) and rotate clockwise to secure. fantasticfurniture.com.au Page 5...
- Page 6 Step 2 You will need 4 x Small Bolts 15mm 4 x Washers 1 x Allen Key (H4) (H3) (H2) (P9) (H2) (P8) (H3) (H4) (H2) (H3) (H4) Attach 2 x legs (P8) to the 2 x brackets (P9) and rotate in a clockwise direction to secure as shown.
- Page 7 Step 3 You will need Allen Key 4 x Washers 4 x Large Head Bolts 16mm 4 x Small Bolts 15mm (H3) (H1) (H2) (H4) (P1) (P3) (P4) (P1) (H1) (H2) (P4) (P3) (P2) (P2) (P3) (P4) (H4) (H2) (H3) Install 4 x large head bolts (H1) into the brackets of the headboard (P1), tightening two thirds of the way with the Allen Key (H2) as shown.
- Page 8 Step 4 You will need Allen Key 2 x Washers 2 x Medium Bolts 20mm (H2) (H2) (H4) (H5) (H5) (H4) (P7) (P6) Attach 2 x support legs (P7) to the centre rail (P6) using 2 x medium bolts (H5) and 2 x washers (H4) as shown, tightening with allen key (H2).
- Page 9 Step 6 You will need 26 x End 13 x Centre Connectors Connectors (P10) (P11) (P12) (P12) (P11) (P10) (P10) 26 x Slats (P12) Connect 2 x end connectors (P10), 2 x slats (P12) and a centre connector (P11) together as shown.
- Page 10 Repeat for every bed slat until finished. Step 7 You will need You can use either pre-drilled hole to attach timber cross rail (P5). Allen Key 2 x Screws 32mm Felt Pad Phillips Head (H2) (H6) (H7) Screwdriver Make sure screws (H6) are fully tightened.
-
Page 11: Job Complete
Step 8 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 11...
