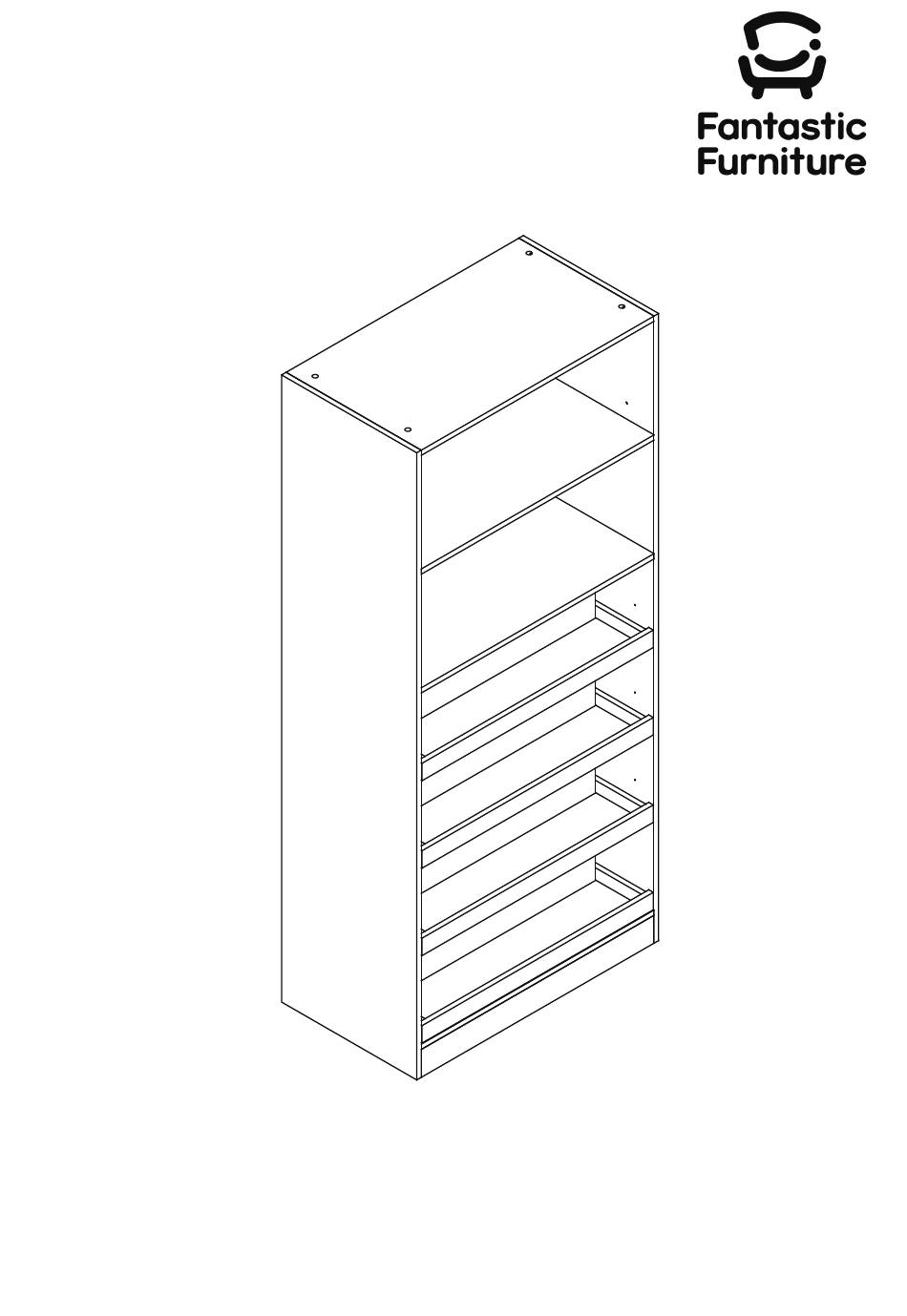

- Page 1 Version 1.0 Eden Utility 2 Shelf 4 Tray fantasticfurniture.com.au...
- Page 2 Secure it! Reduce the risk of furniture tip-over accidents Please seek professional advice if you are in doubt of what fixing device to use. Recommended Weight Capacity : 15kg/drawer or shelf • • • Do not • • Wall attachment guide (with available wood stud) (with available wood stud)
- Page 3 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 3 fantasticfurniture.com.au...
- Page 4 Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.
- Page 5 Top Panel What you need (P1) to assemble the product Back Panel Shelf Panel (P5) (P8) DO NOT USE Right Fixed Shelf Panel Side Panel Other tools you need: (P7) (P4) Phillips head screwdriver; Hammer Left Side Panel Back (P3) Panel Parts list (P6)
- Page 6 Step 1 You will need 8 x Cam Bolts Phillips Head (H3) Screwdriver (P3) Attach 8 x Cam Bolts (H3) to Left Side Panel (P3) as shown by tightening with the Phillips Head Screwdriver. Step 2 Separate 8 x Runners (H6) into Slide Tracks (H6-1) and Slide Runners You will need (H6-2) as shown below: 8 x Slides...
- Page 7 Step 3 You will need 12 x Small Screws (H5) Phillips Head (P3) Screwdriver Use the holes shown below on the Slide Track (H6-1) to secure the screws. Secure 4 x Slide Tracks (H6-1) to Left Side Panel (P3) with 12 x Small Screws (H5) by tightening with the Phillips Head Screwdriver.
- Page 8 Step 5 You will need 12 x Small Screws (H5) Phillips Head (P4) Screwdriver Use the holes shown below on the Slide Track (H6-1) to secure the screws. Secure 4 x Slide Tracks (H6-1) to Right Side Panel (P4) with 12 x Small Screws (H5) by tightening with the Phillips Head Screwdriver.
- Page 9 Step 7 You will need (P9) (P9) 4 x Dowels (H1) (P2) Insert 4 x Dowels (H1) into Base Panel (P2) and attach 2 x Rails (P9) as shown. Step 8 You will need 4 x Dowels 4 x Cam Nuts (H1) (H4) Phillips Head...
- Page 10 Ensure laminated Step 9 side of panel is facing inwards. (P5) (P1) (P6) (P7) (P2) (P3) Slide Back Panels (P5 & P6) into the grooves of Top Panel (P1), Base Panel (P2), Fixed Shelf Panel (P7) and Left Side Panel (P3). Ensure the panels are slotted into the grooves fully. Step 10 You will need (P4)
- Page 11 Step 11 You will need (P4) 4 x Plastic Hammer Glides (H7) (P3) Secure 4 x Plastic Glides (H7) to the bottom of Left & Right Side Panels (P3 & P4) as shown using the Hammer. Step 12 You will need (P4) 4 x Shelf Supports (H8)
- Page 12 Step 13 You will need 5 x Cam Bolts Phillips Head (H3) Screwdriver (P10) Attach 5 x Cam Bolts (H3) to Drawer Front (P10) as shown by tightening with the Phillips Head Screwdriver. Step 14 You will need (P11) 4 x Dowels 4 x Long (H1) Screws (H2)
- Page 13 Step 15 You will need (P11) 5 x Cam Nuts 2 x Dowels (H4) (H1) (P14) (P12) Phillips Head Screwdriver (P10) Insert 2 x Dowels (H1) into Drawer Front (P10). Insert 5 x Cam Nuts (H4) into Left & Right Drawer Sides (P11 &...
- Page 14 Step 17 You will need (P13) (P11) 4 x Long Phillips Head Screws (H2) Screwdriver (P12) Attach Left & Right Drawer Sides (P11 & P12) to Drawer Back (P13) with 4 x Long Screws (H2) by tightening with the Phillips Head Screwdriver. Step 18 Slide Runner (H6-2) You will need...
- Page 15 Step 19 You will need 4 x Dowels 4 x Long (H1) Screws (H2) Option 1 Option 2 Phillips Head Screwdriver Option 3 (P15) (P15) (P15) (P14) (P14) Option 1 Option 2 Option 1: Insert 4 x Dowels (H1) into Drawer Base (P14). Attach 2 x Divider Rails (P15) to Drawer Base (P14) with 4 x Long Screws (H2) by tightening with the Phillips Head Screwdriver.
- Page 16 Step 20 Before inserting the assembled drawers into the unit, adjust 8 x Slide Tracks (H6-1) on Left & Right Side Panels (P3 & P4) to bring the slide to the front. Gently insert the assembled drawers into the unit by aligning the 8 x Slide Runners (H6-2) with the 8 x Slide Tracks (H6-1).Ensure that you insert the drawer into the unit at a straight angle.
- Page 17 (P1) Step 21 You will need (P5) 8 x Wedges 8 x Wedge (H9) Screws (H10) (P3) (P4) Phillips Head Screwdriver (P6) Secure Back Panels (P5 & P6) in place with 8 x Wedges (H9) and 8 x Wedge Screws (H10) by tightening with the Phillips Head Screwdriver.
- Page 18 Step 23 wall You will need Wall Screw 1 x Washer Phillips Head (H13) Screwdriver Screw and Wall Plug are not provided. Please use appropriate fixtures for your wall. Seek advice from a qualified trades person on how to attach this safety strap to your specific wall.
