Page 1

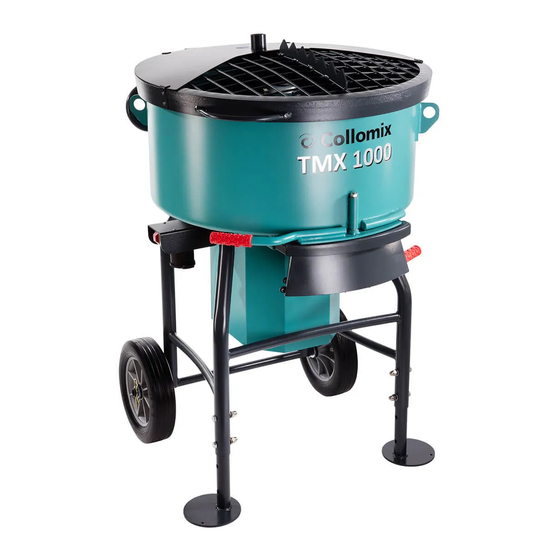

Collomix GmbH TMX 1000 - 110 v US 85080 Gaimersheim TMX 1500 - 240 v US Opera琀椀ng instruc琀椀ons Pan Mixer TMX 1000 Ref. 37082 (110V/60 Hz US) TMX 1500 Ref. 37083 (240V/60 Hz US) This manual must accompany the equipment at all 琀椀mes! Rev.
Page 2
TMX 1000 - 110 v US Collomix GmbH TMX 1500 - 240 v US 85080 Gaimersheim Components Mains plug Mixing tool ON/OFF switch Lid with safety grid Lashing eyes Discharge Handle Vibra琀椀ng device Transport rollers Unlocking mechanism for lid Discharge chute Connec琀椀on for vacuum cleaner...
Collomix GmbH TMX 1000 - 110 v US 85080 Gaimersheim TMX 1500 - 240 v US Signs and symbols Warnings The following symbols and signal words are used in this documenta琀椀on. Symbol Meaning DANGER If this signal word is used, death or serious injuries will occur if the respec琀椀ve precau琀椀onary measures are not observed.
You can 昀椀nd the safety informa琀椀on star琀椀ng from page 6. Refer to the chapter introduc琀椀ons and passages leading up to instruc琀椀ons for warnings. The copyright for images and texts remains with Collomix GmbH. You must read the opera琀椀ng instruc琀椀ons prior to ini琀椀al commissioning. Observe the safety in- forma琀椀on.
Collomix GmbH TMX 1000 - 110 v US 85080 Gaimersheim TMX 1500 - 240 v US For your safety The TMX mixer was developed, produced and tested complying with the fundamental safety requirements. Despite that, there are residual risks. • For this reason, read the opera琀椀ng instruc琀椀ons prior to opera琀椀ng the machine.
Page 6
TMX 1000 - 110 v US Collomix GmbH TMX 1500 - 240 v US 85080 Gaimersheim Safety informa琀椀on Read and observe this information prior to using the device! Non-observance can result in direct consequences for your health and physical integrity , as well as for the health and physical integrity of third parties.
Page 7
X The machine must be firmly lashed in at least three directions for vehicle transport. X Only operate the machine with the TMX 1000 mixing tool that is suitable for the machine. X Only use original spare parts. The use of third-party spare parts may lead to accidents of the user.
Any other use of the machine or any use beyond this scope is considered unintended and thus improper. Safety and its protec琀椀on can be impacted in this case. Collomix GmbH shall not be liable for any resul琀椀ng damage. Intended use also includes: •...
Page 9
Transport informa琀椀on The machine is delivered on a pallet without wheels. Observe the assembly instruc琀椀ons. The empty weight of the machine amounts to 289 lbs (TMX 1000) /304 lbs (TMX 1500). ATTENTION! The machine must always be su昀케ciently secured against 琀椀l琀椀ng and rolling away using several transport straps for vehicle transport.
TMX 1000 - 110 v US Collomix GmbH TMX 1500 - 240 v US 85080 Gaimersheim Moun琀椀ng the wheels: Before you put the wheel on the relevant axle, one of the accompanying washers needs to be inserted. Once this has been done, a琀琀ach the wheel and one further washer to conclude. Se- cure the wheels with the accompanying co琀琀ers as well.
Page 11
Collomix GmbH TMX 1000 - 110 v US 85080 Gaimersheim TMX 1500 - 240 v US Opera琀椀on WARNING Risk of injuries due to rota琀椀ng mixing tool. Do not reach into the mixing drum or handle tools in the mixing drum during mixing.
TMX 1000 - 110 v US Collomix GmbH TMX 1500 - 240 v US 85080 Gaimersheim Troubleshoo琀椀ng Malfunc琀椀on Cause Remedy • Supply cable too long and/or cable • Check cable cross-section, must be AWG 16, cross-section too small shorten supply cable Machine does not start •...
Page 13
TMX 1500 - 240 v US 85080 Gaimersheim Repair Have repairs on the electrical system only performed by expert personnel or Collomix Factory Service. Only use original Collomix accessories and spare parts. Service instructions and the current list of spare parts can be found on our homepage: www.collomix.com...
Please return the device to us if you detect any irregularities. Complaints / claims can only be considered if the device is delivered to the Collomix Service department in a complete and undismantled state.
Page 15
Collomix GmbH TMX 1000 - 110 v US 85080 Gaimersheim TMX 1500 - 240 v US Rev. 5 Page 15...
Page 16
TMX 1000 - 110 v US Collomix GmbH TMX 1500 - 240 v US 85080 Gaimersheim Distributor for UNITED STATES - CANADA - MEXICO Collomix North America Inc. 648 Crescent Court Milwaukee, WI 53213 Tel. + 1 - 414 471 38 83 + 1 - 414 918 80 32 Email al.karraker@collomix.com...
