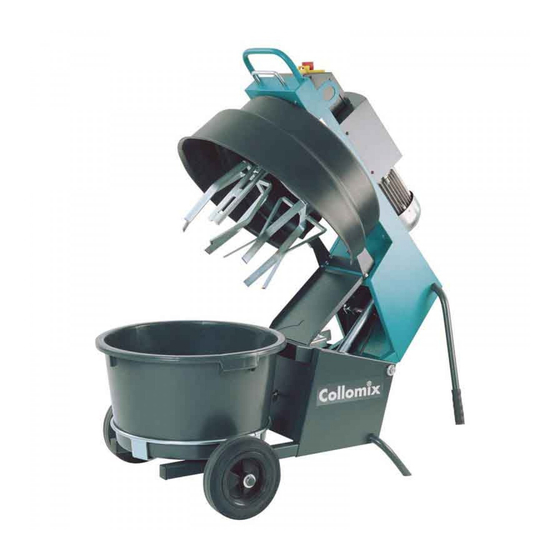

Collomix COLLOMATIC XM 2-650 Manual

Forced-action mixer
Hide thumbs Also See for COLLOMATIC XM 2-650:
Table of Contents

Advertisement

Quick Links

Download this manual
Collomix GmbH
85080 Gaimersheim / Germany
Operating Instructions
FORCED-ACTION MIXER
FORCED-ACTION MIXER
COLLOMATIC XM 2-650
COLLOMATIC XM 2-650
Ref.no.: 39017
(110 VAC/60 hz - US)
Collomix GmbH
Daimlerstraße 9
85080 Gaimersheim
Germany
Telefon: +49 8458 3298-0
www.collomix.com
This manual must accompany the equipment at all times
Rev. US02-2013
Forced-action mixer
Collomatic XM
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COLLOMATIC XM 2-650 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Collomix COLLOMATIC XM 2-650

Summary of Contents for Collomix COLLOMATIC XM 2-650

  • Page 1 Collomix GmbH Forced-action mixer 85080 Gaimersheim / Germany Collomatic XM Operating Instructions FORCED-ACTION MIXER FORCED-ACTION MIXER COLLOMATIC XM 2-650 COLLOMATIC XM 2-650 (110 VAC/60 hz - US) Collomix GmbH Daimlerstraße 9 85080 Gaimersheim Germany Telefon: +49 8458 3298-0 www.collomix.com This manual must accompany the equipment at all times Ref.no.: 39017...
  • Page 2 Forced-action mixer Collomix GmbH Collomatic XM Gaimersheim / Germany Page 2 Rev. US02-2013 Ref.no.: 39017...

  • Page 3: Table Of Contents

    Collomix GmbH Forced-action mixer 85080 Gaimersheim / Germany Collomatic XM Contents Page Layout Technical data EC Declaration of Conformity Definitions of technical terms Safety instructions Responsibility of the user Intended use Liability and warranty Transportation instructions Delivery Moving the machine manually...
  • Page 4 Forced-action mixer Collomix GmbH Collomatic XM Gaimersheim / Germany 1. Components Page 4 Rev. US02-2013 Ref.no.: 39017...
  • Page 5 Collomix GmbH Forced-action mixer 85080 Gaimersheim / Germany Collomatic XM Key to illustration Mixing tools - Counter-rotates at optimum rpm to mix material. Paddles are changeable to accomodate thin and thick materials. Rim scraper - Continuously moves around the rim of the tub and forces the materials back into the middle of the tub.
  • Page 6 Forced-action mixer Collomix GmbH Collomatic XM Gaimersheim / Germany Page 6 Rev. US02-2013 Ref.no.: 39017...

  • Page 7: Technical Data

    Forced-action mixer Collomix GmbH Collomatic XM Gaimersheim / Germany 1.1 Technical data Type: COLLOMATIC XM 2-650 Power supply: 110 volts AC / 21 amps Rated power: 1,5 hp / 60 hz Fuse: 16 amps slow blow Motor protection class: IP 54...

  • Page 8: Definitions Of Technical Terms

    Collomix GmbH Forced-action mixer 85080 Gaimersheim / Germany Collomatic XM 2. Definitions of technical terms Forced-action mixer: a mixing unit with two or more rotating mixing tools, creating a counter-current material flow. Both tools and a rim scraper rotate simultan around the container center.

  • Page 9: Safety Instructions

    Forced-action mixer Collomix GmbH Collomatic XM Gaimersheim / Germany 3. Safety messages The four safety messages shown below will inform you about potential hazards that could injure you or others. The safety messages specifically address the level of exposure to the...

  • Page 10: Responsibility Of The User

    • risk of accidents and injury. • Never use the trolley for any other purpose than for transporting the original Collomix mixing tub for which it is designed. • Only open and close the machine with the handle provided. There is a risk of crushing if you attempt to open and close it at any other point.

  • Page 11: Intended Use

    All essential warranty repair work must only be carried out by adequately trained service engineers or by third parties with express prior authorization from Collomix. The carrying out of unauthorized repairs may render the warranty null and void.

  • Page 12: Transportation Instructions

    Collomix GmbH Forced-action mixer 85080 Gaimersheim / Germany Collomatic XM 5. Transportation instructions 5.1 Delivery The machine is packed and delivered on a pallet. The machine has a net weight of 231 lbs (105 kg). The location of the machine’s center of gravity is shown in the adjacent illustration.

  • Page 13: Trolley

    Forced-action mixer Collomix GmbH Collomatic XM Gaimersheim / Germany 7.0 Bucket Dolly (accessory) The trolley (accessory) is designed for loading and unloading the mixing tub to and from the machine. At the same time the locking device on the trolley can be used to enable thin- bodied material to be poured out wherever it is required.

  • Page 14: Mixing Tools

    Collomix GmbH Forced-action mixer 85080 Gaimersheim / Germany Collomatic XM 8. Mixing tools Your forced-action mixer comes with three different mixing tools (Standard: universal mixing tools and a star-type mixing tool). These will enable you to mix materials of all viscosities.

  • Page 15: Rim Scraper

    Forced-action mixer Collomix GmbH Collomatic XM Gaimersheim / Germany 8.3 Changing the mixing tools The mixing tools are fitted and adjusted at the factory. To remove them, loosen the locking nut slightly with an open-ended wrench while holding the mixing tool with a second open- ended wrench Unscrew the mixing tool.

  • Page 16: Using For The First Time

    Collomix GmbH Forced-action mixer 85080 Gaimersheim / Germany Collomatic XM 11. Using for the first Time 11.1 Opening and closing the machine • Take hold of the handle and the latch bar. Pull them towards you. This opens the lock.

  • Page 17: Setting The Timer Switch

    Forced-action mixer Collomix GmbH Collomatic XM Gaimersheim / Germany 11.4 Setting the timer switch The timer switch is situated on the front panel of the machine. „90“ position The mixing tools run for 90 seconds before switching off automatically „180“ position The mixing tools run for 180 seconds before switching off automatically „Continuous“...

  • Page 18: Description Of The Safety Equipment

    Collomix GmbH Forced-action mixer 85080 Gaimersheim / Germany Collomatic XM 12. Description of the safety equipment The safety devices previously referred to have been integrated in the machine for your personal safety and the safety of others. Make sure that these are in full working order at all times.

  • Page 19: Troubleshooting

    Forced-action mixer Collomix GmbH Collomatic XM Gaimersheim / Germany 13. Troubleshooting Symptom Possible Problem Solution ON/OFF switch is set manually to "0" Open the mixer, set ON/OFF switch to "1" and close the mixer again Cable too long and/or cable cross-section Check cable cross-section;...

  • Page 20: Care And Maintenance

    Collomix GmbH Forced-action mixer 85080 Gaimersheim / Germany Collomatic XM 14. Care and maintenance DANGER • NEVER use any solvents or flammable substances to clean the machine. CAUTION ALWAYS disconnect the mixer form the power supply before cleaning, changing the mixing tool, or performing any maintenance •...

  • Page 21: Annex

    Forced-action mixer Collomix GmbH Collomatic XM Gaimersheim / Germany 15. 1 Circuit diagram - 110 Volt, 60 Hz U < blue black brown blue black brown white brown Page 21 Rev. US02-2013 Ref.no.: 39017...

  • Page 22: Exploded Drawing Of The Trolley

    Collomix GmbH Forced-action mixer 85080 Gaimersheim / Germany Collomatic XM Ref.no.: 39017 Rev. US02-2013 Page 22...
