Summary of Contents for Collomix ROTA X.40

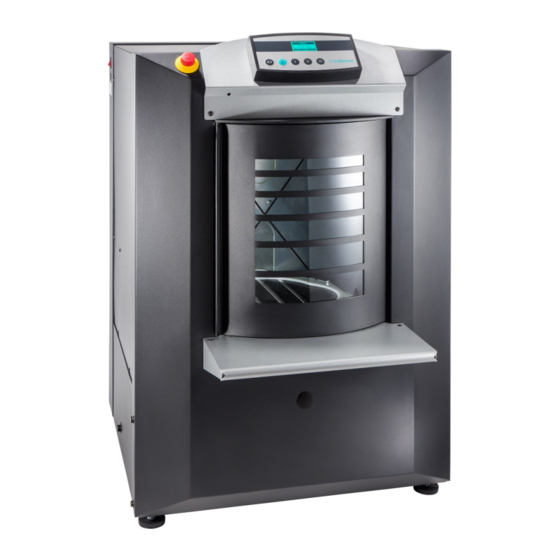

- Page 1 Instructions Biaxial Mixer ROTA X.40 Keep this manual within immediate reach of the machine Translation of the original instructions -en Englisch Version 1.1-20...
- Page 2 ROTA X.40 Collomix GmbH Version 1.1-20...
-
Page 3: Table Of Contents
Collomix GmbH ROTA X.40 Contents 1. Layout Drawings ......................4 Machine components Operating and display components 2. About this document ....................6 Pictograms and symbols 3. For your safety ......................7 General Safety Information Intended Use Foreseeable Misuse Qualifications of operating personnel... -
Page 4: Layout Drawings
ROTA X.40 Collomix GmbH Layout Drawings Machine components Machine components ① Power supply and AC fuse ⑧ Door ② Lower clamping plate ⑨ Rubber band for handle fixation ③ Upper clamping plate ⑩ Loading shelf ④ Manual door release ⑪ Cleanout ⑤... -
Page 5: Operating And Display Components
Collomix GmbH ROTA X.40 Operating and display components Button for DOOR • OPEN door • OPEN the mixing unit Button E • STOP – stop mixing cycle prematurely • ACKNOWLEDGE messages Button I Mixing cycle I (Factory settings 1:00 mins) -
Page 6: About This Document
Safety information is in Chapter 2. You find information on warnings in the introduction of Chapters and before instructions. Collomix GmbH owns the copyright of images and text. Please read the operating instructions prior to first use. Pay attention to safety instructions. Keep for future use. -
Page 7: For Your Safety
Any other or expanded use of the biaxial mixer is a non-intended and therefore, improper use. In this case, the safety mechanisms and the protection provided by them may be compromised. Collomix GmbH is not liable for any damages caused by it. Parts of the intended use are: Complying with all information in these Operating Instructions ... -
Page 8: Foreseeable Misuse
The use of the equipment outside the limitations described in this instruction. The modification of the control software without the prior coordination with Collomix GmbH. Modifications on the machine or control software as well as add-ons and retrofits. -
Page 9: Safety-Relevant Components
Collomix GmbH ROTA X.40 Safety-relevant components The machine is equipped with various safety devices. These help to avoid dangers to body and life through electrical and mechanical impacts on the persons working with the biaxial mixer and they help to limit any material damages to the system. -
Page 10: Set-Up And Using The Mixer For The First Time
When using a frame for height modification, its suitability must be checked regarding the vibration behaviour and the load burst before commissioning from the operator. If in doubt, contact Collomix. Transport rollers The mixer is equipped with two transport rollers on the bottom of the housing. -
Page 11: Trial Run
Collomix GmbH ROTA X.40 Trial run A trial run with an empty mixing container must be conducted when first starting the machine or after maintenance and repair work in order to check the proper function of the machine. WARNING Risk of injury due to protruding parts Parts may protrude from the equipment. -
Page 12: Starting The Mixing Cycle
ROTA X.40 Collomix GmbH Starting the mixing cycle The mixing cycle can only be started after the door is closed. Push buttons I, II, or III to start the mixing process. The corresponding mixing times are shown on the LD display above the keypad. -
Page 13: Errors And Troubleshooting
Collomix GmbH ROTA X.40 Errors and Troubleshooting The troubleshooting tables in this Chapter will help you to determine whether you can troubleshoot yourself or whether you need to call customer service. DANGER Danger of death by dangerous voltage Please note that all maintenance and servicing jobs must be left strictly to authorized and suitably trained expert staff. -
Page 14: E080 Mu Unlocked
ROTA X.40 Collomix GmbH Fault Description Machine condition Solutions • Close door completely E170 Error door lock • Check the door lock • Check the connection of the door lock • Check door motor • Container is placed de centred... -
Page 15: Unlock Door Manually
Collomix GmbH ROTA X.40 Unlock door manually The machine is equipped with a safety lock, which locks the door automatically after it is closed. In the event of a malfunction or power outage, the door can be unlocked manually. Disconnect the machine from the mains by pulling out the mains plug. -
Page 16: Maintenance
ROTA X.40 Collomix GmbH Maintenance It is necessary to check, clean, and service the machine regularly to ensure continuous function. Unplug the machine from power by pulling the plug before all cleaning, maintenance, and repair work is done on the machine. -
Page 17: Repair
Rubber for the handle fixation 62878 Mobilux© EP2 grease 150 g 61299 Spare parts are available under www.collomix.de. Storage, disposal Storage The storage area should be cool and dry in order to prevent corrosion on the individual parts of the machine. -
Page 18: Appendix
A suitable centering ring is necessary if oval containers are to be mixed. Noise emission in accordance with 2006/42/EG Sound pressure level L 55 dB re 20 µPa Sound power level L 65 dB re 1 pW Uncertainty K 3 dB pA+WA 10.2 Dimensions Dimensions ROTA X.40 Version 1.1-20... -
Page 19: Ec Conformity Declaration
For your rights in the event any rectifications become necessary, please read our General Delivery Terms and Conditions. You find these on our website www.collomix.de. We are happy to send you our General Delivery Terms and Conditions on request. Version 1.1-20... - Page 20 ROTA X.40 Collomix GmbH Collomix GmbH Daimlerstr. 9, D-85080 Gaimersheim Germany Tel.: +49 (0)8458 32 98 - 0 Fax: +49 (0)8458 32 98 30 www.collomix.de Version 1.1-20...
