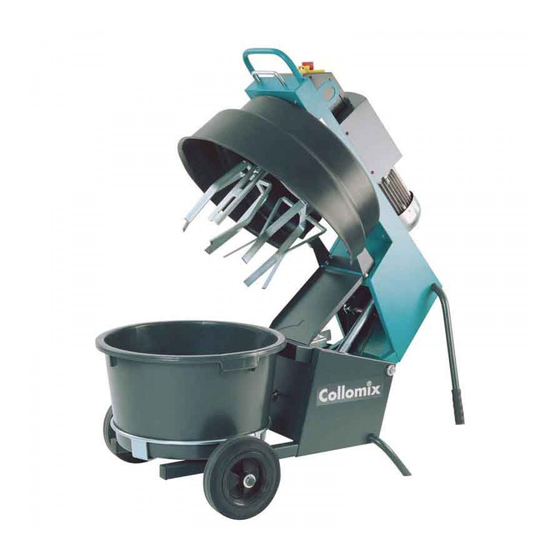

Collomix COLLOMATIC XM 2-650 Operating Instructions Manual
Forced-action mixer
Hide thumbs
Also See for COLLOMATIC XM 2-650:
- Operating instructions manual (21 pages) ,
- Manual (23 pages)
Table of Contents
Advertisement
Quick Links
Collomix GmbH
D-85080 Gaimersheim

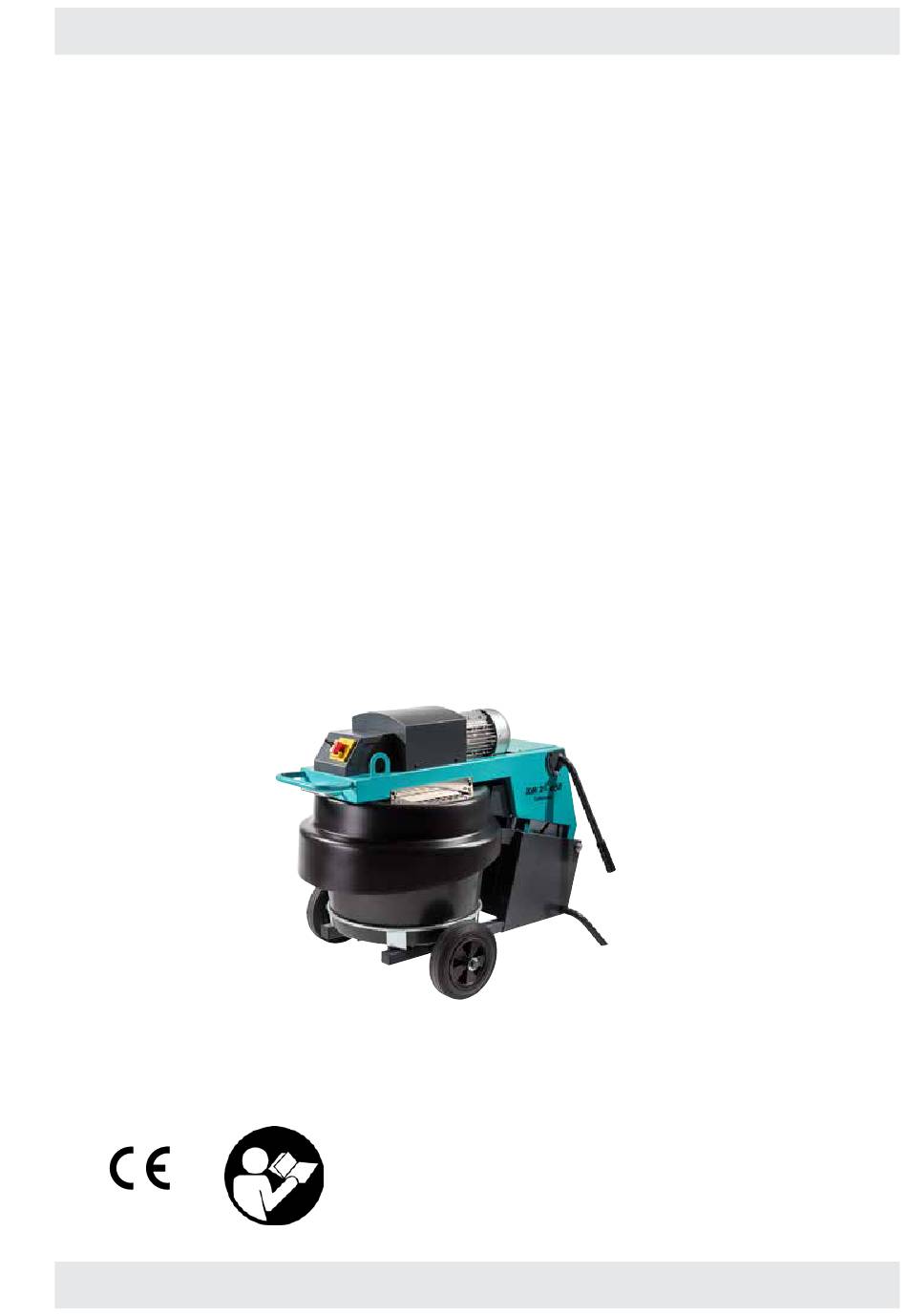

Operating instructions
(Original Operating Instructions – German)
FORCED-ACTION MIXER
FORCED-ACTION MIXER
COLLOMATIC XM 2-650
COLLOMATIC XM 2-650
COLLOMATIC XM 3-900
COLLOMATIC XM 3-900
Item no.: 39,014/015/016
Collomix GmbH
Daimlerstraße 9
85080 Gaimersheim, Germany
Telephone: 08458 / 3298-0
www.collomix.com
Rev. 05-16
Forced-action mixer
Collomatic XM
Page 1
Advertisement
Table of Contents
Related Manuals for Collomix COLLOMATIC XM 2-650
Summary of Contents for Collomix COLLOMATIC XM 2-650
- Page 1 Forced-action mixer D-85080 Gaimersheim Collomatic XM Operating instructions (Original Operating Instructions – German) FORCED-ACTION MIXER FORCED-ACTION MIXER COLLOMATIC XM 2-650 COLLOMATIC XM 2-650 COLLOMATIC XM 3-900 COLLOMATIC XM 3-900 Collomix GmbH Daimlerstraße 9 85080 Gaimersheim, Germany Telephone: 08458 / 3298-0 www.collomix.com...
-
Page 2: Table Of Contents
Collomix GmbH Forced-action mixer D-85080 Gaimersheim Collomatic XM Contents Page Overview 3 Technical data 4 EC declaration of conformity Explanation of technical terms Safety information Responsibility of the operator Intended use Liability and warranty Transport information Delivery Manually moving the device... -
Page 3: Overview
Collomix GmbH Forced-action mixer D-85080 Gaimersheim Collomatic XM 1. Overview Drawing explanation Mixing tools Carrying handles, lockable Rim scraper Connector plug Protective hood Control pin for the mixing bucket Lock bar Transport trolley (accessories) Handle Axle bracket with bucket stop... -
Page 4: Technical Data
EN 60745-1, EN 55014, EN 60204, EN 61000-4; EN 50581:2013-02 according to the provisions of directives 2014/30/EU, 2006/42/EG, 2011/65/EG Technical documentation to be requested from: Collomix GmbH, Technical Development Department, Daimlerstr. 9, 85080 Gaimersheim, Germany, Alexander Essing Collomix GmbH, 2016-05-18... -
Page 5: Explanation Of Technical Terms
Collomix GmbH Forced-action mixer D-85080 Gaimersheim Collomatic XM 2. Explanation of the technical terms used Direction of rotation Direction in which the gearbox and the mixing tools rotate at three-phase current (only 400 volts) Limit switch Electric switch that switches a function on or off when the final position of a moving machine part is reached. -
Page 6: Safety Information
There is an acute risk of accidents and injuries if the safety functions are disabled on purpose. This also voids the warranty. • Use the transport trolley only to transport the suitable original Collomix mixing bucket. • Only grab the provided handle element to open and close the device. There is a danger of crushing in other places. -
Page 7: Responsibility Of The Operator
Collomix GmbH Forced-action mixer D-85080 Gaimersheim Collomatic XM 3.1 Operator’s responsibility These operating instructions must be stored in the immediate vicinity of the device and always be available to the persons working with the device. The device may only be operated in a technically flawless and operationally safe condition. The device must be checked to ensure it is intact before every start-up. -
Page 8: Intended Use
Collomix. Repairs performed by unauthorised persons may void the warranty. Please send defective parts or machines to our plant postage or carriage paid. Collomix reserves the right to decide on a free spare parts delivery. The parts and working time covered by the warranty will be reimbursed free of charge. -
Page 9: Transport Information
Collomix GmbH Forced-action mixer D-85080 Gaimersheim Collomatic XM 5. Transport information 5.1 Delivery The machine is delivered packaged on a pallet. The net weight is approx. 105 kg. The machine’s cen- tre of gravity is as is shown in the image adjacent. -
Page 10: Transport Trolley
Collomix GmbH Forced-action mixer D-85080 Gaimersheim Collomatic XM 7.0 Transport trolley (accessories) The transport trolley (accessories) is used for inserting and removing the mixing bucket in the machine. At the same time, thin material can conveniently be poured out at the location using the locking device of the transport trolley. -
Page 11: Handling
Collomix GmbH Forced-action mixer D-85080 Gaimersheim Collomatic XM 7.3 Handling • Grab the transport trolley by both handles • Drive with both vessel receptacles under the bucket and hook these into the griphandles on the bucket. • Apply counter-pressure to the axle using one of your legs. Make sure that the bucket is correctly positioned. -
Page 12: Mixing Tools
Collomix GmbH Forced-action mixer D-85080 Gaimersheim Collomatic XM 8. Mixing tools Your forced-action mixer is supplied with three different mixing tools (standard: Universal mixing tools and dissolvers). In this way, you can prepare materials of all viscosities. 8.1 Equipping options Both mixing tools turn at 185 rpm. -
Page 13: Edge Scraper
Collomix GmbH Forced-action mixer D-85080 Gaimersheim Collomatic XM If no tool will be attached to this threaded spindle at the moment, screw on the corresponding threaded plug to prevent dirt from entering. Note the different thread sizes M 16 and M 18. -
Page 14: Commissioning
Collomix GmbH Forced-action mixer D-85080 Gaimersheim Collomatic XM 11. Commissioning 11.1 Opening and closing the device • Grab the handle and grasp the locking bar. Pull this toward you. The lock will open. • Pull the swivel arm upwards. • The device is now in the opened state in front of you. There are 2 open-end wrenches in the mixing bucket and another mixing tool. -
Page 15: Setting The Time Selector Switch
Collomix GmbH Forced-action mixer D-85080 Gaimersheim Collomatic XM 11.4 Setting the time selector switch The time selector switch is located on the machine’s front panel. Position "90" mixing tool operation 90 sec., switches off automatically Position "180" mixing tool operation 180 sec., switches off automatically. -
Page 16: Description Of The Protective Devices
Collomix GmbH Forced-action mixer D-85080 Gaimersheim Collomatic XM 12. Description of the protective devices The protective devices mentioned are installed in this machine for your personal safety and that of others. Always make sure they are functioning fully. In case of defective protective devices, do not operate the machine. -
Page 17: Troubleshooting
Collomix GmbH Forced-action mixer D-85080 Gaimersheim Collomatic XM 13. Troubleshooting Malfunctions may occur during operation. The following is a checklist to determine the cause. If there is an electrical defect or major damage, only have this corrected by a professional. -
Page 18: Care And Maintenance
Collomix GmbH Forced-action mixer D-85080 Gaimersheim Collomatic XM 14. Care and maintenance Observing this information ensures you will be able to use the device for a long time and guarantees you a flawless functioning of your forced-action mixer Disconnect the mains plug for all maintenance and repair work on the device. -
Page 19: Annex
Collomix GmbH Forced-action mixer D-85080 Gaimersheim Collomatic XM 15. 1 circuit diagram - 230 volts, 50 Hz Coll o matic XM 2 -65 0 230V, 50 Hz 1 0 2 U < Circuit diagram - 400 volts, 50 Hz Coll o matic XM 2 -650... -
Page 20: Exploded Drawing Of Transport Trolley
Collomix GmbH Forced-action mixer D-85080 Gaimersheim Collomatic XM Item no.: 39,014/015/016 Rev. 05-16 Page 20...
