Summary of Contents for GAOMON M10K PRO
- Page 1 User Manual M10K PRO Windows 7 or later, macOS 10.12 or later...
-
Page 2: Precautions
M10K PRO Precautions 1. Please read this manual carefully before using, and keep it well for future reference. 2. Before cleaning the tablet please unplug the power cord and wipe with a soft damp cloth, do not use any kind of detergents. -
Page 3: Table Of Contents
M10K PRO Contents Precautions........................... 1. Product Overview ......................4 ......................1.1 Tablet Introduction ....................1.2 Product and Accessories ......................1.3 Tablet Connection ......................1.4 Driver Installation ................1.5 Connecting to Android Phone & Tablet ...................... 1.6 Digital Pen Overview ..................... 1.7 Pen Nib Replacement 2.Function Setting... -
Page 4: Product Overview

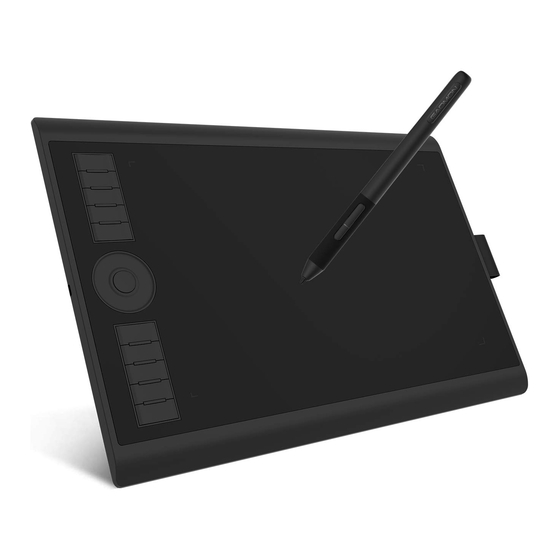

1. Product Overview 1.1 Tablet Introduction Thanks for buying GAOMON M10K PRO Tablet. This is a new generation of professional battery- free drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience. -
Page 5: Tablet Connection
M10K PRO 1.2.2 Packing List AP32 Pen Pen Nibs Pen Nib Clip USB Cable Felt Pouch for Nibs Quick Start Guide Pen Case 1.3 Tablet Connection Connect the tablet to your computer with USB cable. www.gaomon.net... -
Page 6: Driver Installation
3. For some models, you need to go phone or tablet "Settings" then enable "OTG" function. 4. You may need purchase a USB adapter to make GAOMON tablet connect with your Android phone/tablet. For example a Type-C to USB adapter, or Micro USB to USB adapter, depending on the USB type of your devices. -
Page 7: Digital Pen Overview
M10K PRO Notes: 1. The pen tablet can work without installing any driver into your phone/tablet. 2. Once connected, the tablet will automatically enter the phone mode, in which the pen can only work in the left gray area(90.8 x 161.5mm). -
Page 8: Pen Nib Replacement
M10K PRO 1.7 Pen Nib Replacement The nib will wear off after using for a long time, then you need to replace a new nib. 1) Use the pen nib clip to pull the old nib straight out of the pen. ( ）... -
Page 9: Working Area Setting
M10K PRO 2.2 Working Area Setting 2.2.1 Using Multiple Monitors Select the monitor to define the relationship between pen movement on the tablet and cursor movement on the monitor screen. By default the entire active area of tablet maps to the entire monitor. If more than one monitor is in use and you are in extended mode, you need to choose the related monitor on the driver interface which you are going to map to. - Page 10 M10K PRO 2.2.2 Working Area Setting Define the tablet area that will be mapped to the screen area. 1. Full Area: the entire active area of the tablet. This is the default setting. 2. Custom Area: Drag the corners of the foreground graphic to select the screen area.
-
Page 11: Shortcuts Keys Function Setting
M10K PRO 2.2.3 Rotate Working Area By changing the direction of the tablet to adapt to the left and right hand operation. We provide four directions of choice. 2.3 Shortcuts Keys Function Setting Default Setting： Place the cursor on the shortcut key or click the shortcut keys to find the default values. - Page 12 M10K PRO www.gaomon.net...
-
Page 13: Windows Radial /Dial Function
M10K PRO 2.4 Windows Radial /Dial Function Windows Radial The Ring is compatible with Windows Radial Controller Protocol. Windows Radial Function is enabled by default, therefore you don’t need to check any option to activate it. Long press the key on the centre of the Dial Controller to call up a tool menu, users can use Dial Controller to adjust the brush size, pick the color and scroll through the pages, etc. - Page 14 M10K PRO Wheel mode Uncheck the option “Enable Wheel“ to activate the Dial Mode. Press the middle button and three groups of functions appear at the bottom of the screen, which can be switched by clicking the middle button. Default setting: Canvas Zoom in/out, Brush Zoom in/out , Scroll up/down...
-
Page 15: Pen Buttons Function Setting
M10K PRO 2.5 Pen Buttons Function Setting Customized Setting： Select the function to be achieved on the pop-up dialog box, and it will be saved automatically. www.gaomon.net... -
Page 16: Pressure Sensitivity Setting
M10K PRO 2.6 Pressure Sensitivity Setting The pressure sensitivity will be changed by dragging the points of the pressure curve. Drag the points to the upper left for higher sensitivity. Drag the points to the lower right for lower sensitivity. -
Page 17: Pen Pressure Testing
M10K PRO 2.7 Pen Pressure Testing You can gradually apply pressure to the stylus on the screen to test the pressure level. www.gaomon.net... -
Page 18: Enable The Windows Ink Feature
M10K PRO 2.8 Enable the Windows Ink Feature Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office、Windows Journal、Adobe Photoshop CC、SketchBook 6 and so on. www.gaomon.net... -
Page 19: Mouse Mode(Only For Specific Models)
M10K PRO 2.9 Mouse Mode(Only for specific models) As shown below, check the checkbox in front of the mouse mode to open the mouse mode. Under mouse mode, when you move the pen, the cursor moves following the relative coordinate principle, similar to moving the cursor with the mouse. - Page 20 M10K PRO www.gaomon.net...
-
Page 21: Data Export And Import
M10K PRO 2.11 Data Export and Import The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings. www.gaomon.net... -
Page 22: Specifications
M10K PRO 3.Specifications Model M10K PRO Touch Technology Battery-free EMR Working Area 255.06×159.84mm(10×6.25in) Dimension 360 ×240×10.5mm 695g Net Weight 8192LPI Touch Resolution 266PPS Report Rate ±0.3mm Accuracy Pen Sensing Height 10mm Interface Micro USB Express Key 10 Programmable Press Keys+1 Function Switch Key... -
Page 23: Trouble Shooting
M10K PRO 4.Trouble Shooting Abnormal Phenomena Possible Solutions You may have installed other tablet drivers or opened the drawing software There is no pressure in the graphics when installing the driver. Please uninstall all drivers and close the drawing software but the cursor moves software, then reinstall the driver. -
Page 24: Contact Us For After-Sell Service
M10K PRO 5. Contact Us for After-sales Service GAOMON TECHNOLOGY CORPORATION www.facebook.com/Gaomonpentablet twitter.com/Gaomonpentablet service@gaomon.net https://www.gaomon.net www.gaomon.net...
