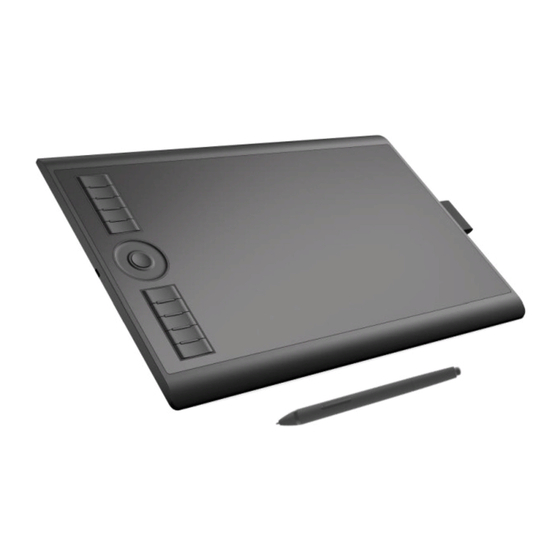

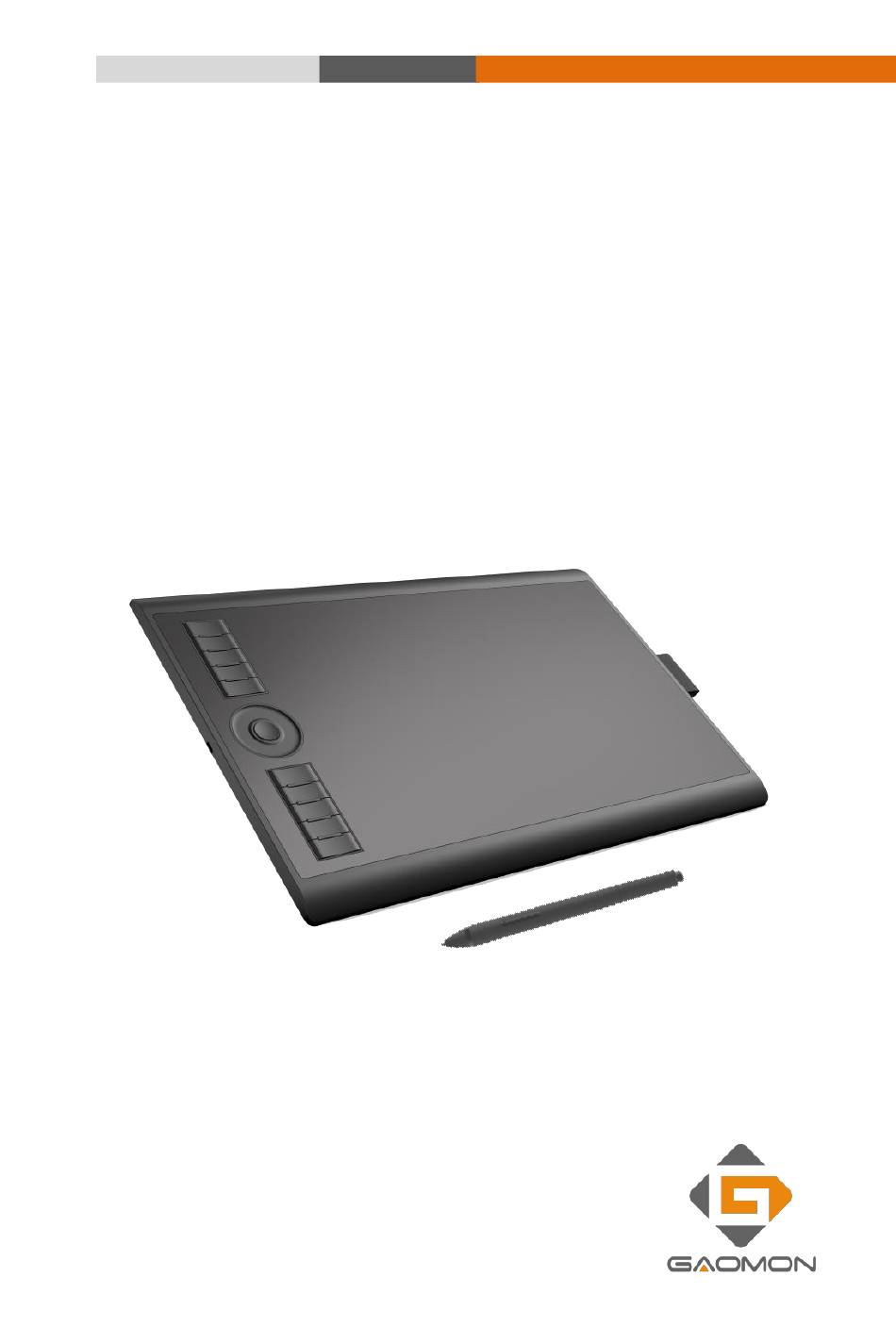

- Page 1 User Manual M10K Battery-Free Graphic Tablet...
- Page 2 • Thank you for choosing and purchasing M10K, which is a Battery-Free graphics tablet. It does not contain any battery in the pen, which means you don’t need to charge the pen when you use it. • To give you a better understanding and use of this product, please read this user manual carefully before using.
-
Page 3: Table Of Contents
1.3.1 OS Compatibility ................7 1.3.2 Tablet Driver Installing ..............7 2. Setup and Operation Guide ..........7 2.1 Mapping .................7 2.2 Pen Setting ................8 2.3 Key Setting ................10 3．Troubleshooting ............... 11 4．Product Specifications ............12 3 / 12 www.gaomon.net... -
Page 4: Introduction And Installing
Quick Start Guide Installation CD If there is a defect or missing part, please contact the agency where you purchased the product. 1.2 Product Overview 1.2.1 Front View ⑤ ① ② ⑥ ③ ④ 4 / 12 www.gaomon.net... -
Page 5: Rear View
Working Area Pen Jacket ⑤ ⑥ 1.2.2 Rear View ⑧ ⑦ ⑨ Name Plate ⑦ Anti-slip Mat ⑧ Micro USB Port：Connect the tablet to your computer with ⑨ Micro USB cable.（As shown below） 1.2.3 Connect the tablet 5 / 12 www.gaomon.net... -
Page 6: Artpaint Ap30
1) Use the pen nib clip to pull the old nib straight out of the pen. 2) Insert a new pen nib into the stylus pen and push the nib until it stops. 6 / 12 www.gaomon.net... -
Page 7: Tablet Driver Installing
1）Connect the tablet to your computer. 2）Insert the Driver CD into the CD-ROM; Open the “Driver” folder. If you don't have a CD drive, please download the driver from our website: www.gaomon.net 3）Then execute “ setup” and follow the instruction to finish the installation. -
Page 8: Pen Setting
） ； 1）Click the Pen Setting icon（ 2）Then you can adjust the sensitivity and define the lower key function 8 / 12 www.gaomon.net... - Page 9 Note: Hold this pen the way you would hold a normal pen or pencil while writing on paper and the allowed pen input angle is 45° in any direction from a position. 9 / 12 www.gaomon.net...
-
Page 10: Key Setting
2.3 Key Setting 1）Click “Key Setting”icon 2） Click the function bar on the right side to seclect the preferred settings which you need to define the press key.Then Click “Save”. 10 / 12 www.gaomon.net... -
Page 11: 3．Troubleshooting
10mm of the tablet surface and your pen nib is not work not against the tablet surface. * Be sure that the side button is set to the proper function you are expecting to occur for the application. 11 / 12 www.gaomon.net... -
Page 12: 4．Product Specifications
4．Product Specifications TABLET Model M10K Touch Technology Passive Cordless EMR Working Area 255.06 x 159.84mm 360 x 240 x 12.5 mm Dimension Net Weight 695g Touch Resolution 5080LPI Report Rate 250pps Pen Sensing Height 10mm Interface Micro USB Express Key...
