User Manual
M106K
Professional Graphics Tablet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M106K and is the answer not in the manual?

Questions and answers

Summary of Contents for GAOMON M106K

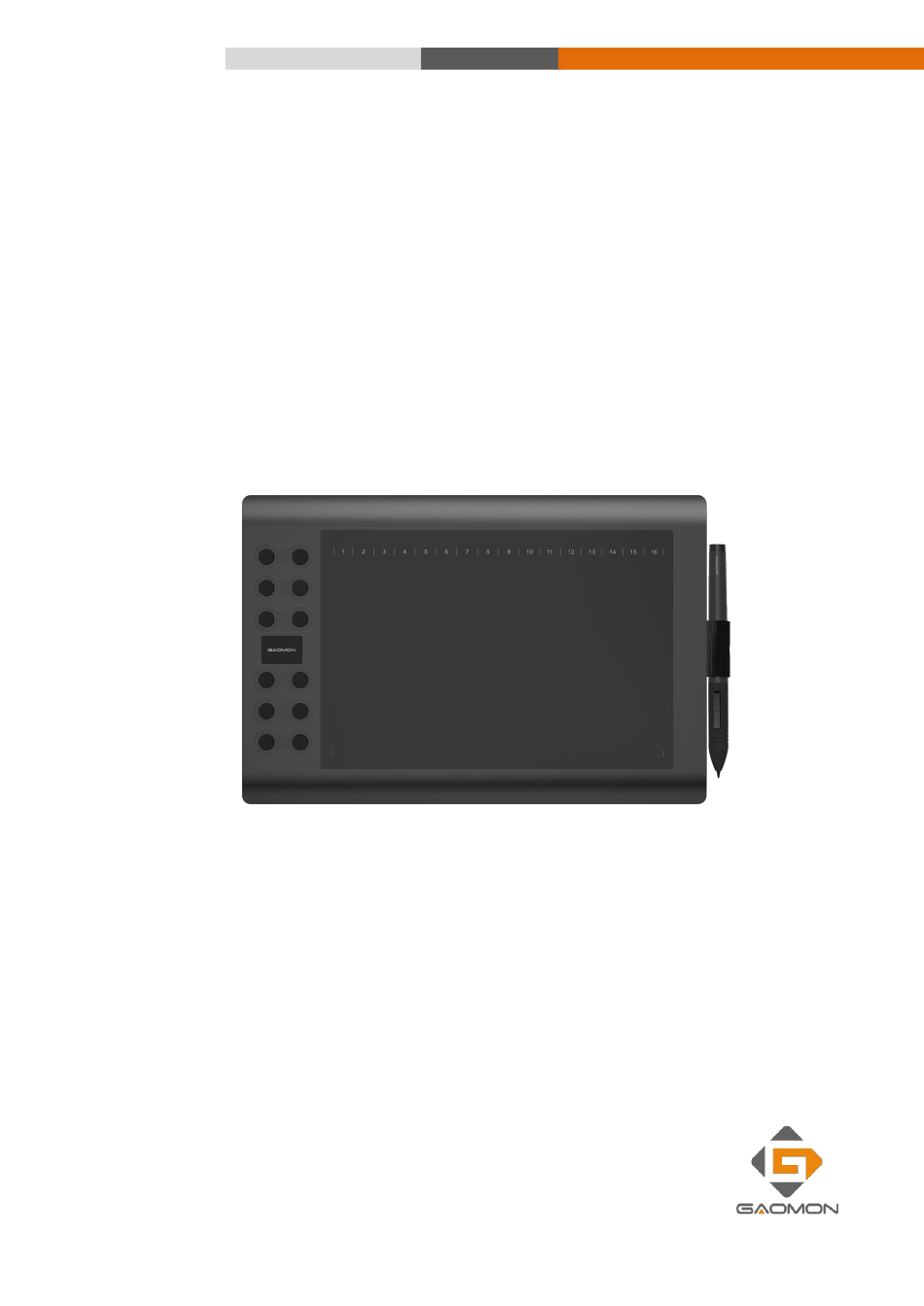

  • Page 1 User Manual M106K Professional Graphics Tablet...
  • Page 2 • Thank you for choosing and purchasing M106K, which is a professional graphics tablet. • To give you a better understanding and using of this product, please read this user manual carefully before using. • Compatibility: Microsoft Windows 7/8/10, Mac OS X 10.10 or later.
  • Page 3: Table Of Contents

    2.4 Pressure Sensitivity Setting ..........................9 2.5 Pen Pressure Testing ............................9 2.6 Enable the Windows Ink feature ........................10 2.7 Data Export and Import ..........................10 . Troubleshooting ............................11 . Product Specification ..........................11 3 / 11 www.gaomon.net...
  • Page 4: Introduction And Installing

    Pen Charging Cable x 1  Quick Start Guide x 1  Please contact the agency where you purchased the product if there is a defect or missing part. 1.2 Product Overview 1.2.1 Front View 1.2.2 Rear View 4 / 11 www.gaomon.net...
  • Page 5: Stylus Pen(Artpaint Ap20)

    2) Insert a new pen nib into the stylus pen and push the nib until it stops. 1.2.3.2 Charging the pen Please charge the pen with the rechargeable cable when power of the pen runs out. It can be connected to computer, power supply or power bank to charge. 5 / 11 www.gaomon.net...
  • Page 6: Tablet And Driver Installing

    Before installing the Tablet, make sure your PC Operation System (OS) is Windows 7 / 8 / 10 and MAC 10.10 or later 1.3.2 Driver Installing 1)please download the driver from our website: www.gaomon.net. 2)Please close all graphics software and anti-virus program before installing the driver.
  • Page 7: Working Area Setting

    2. Customized Area: <1> .Enter coordinate values. Or<2>. Drag the corners of the foreground graphic to select the screen area. 2.1.3 Rotate Working Area By changing the direction of the tablet to adapt to the left and right hand operation. We provide four kinds of choice. 7 / 11 www.gaomon.net...
  • Page 8: Press Keys Function Setting

    Customized:Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect. Enable/Disable Press Keys: Check/Uncheck“Enable Press Keys” Enable/Disable Soft Keys: Check/Uncheck“Enable Soft Keys” 2.3 Pen Button Setting Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect. 8 / 11 www.gaomon.net...
  • Page 9: Pressure Sensitivity Setting

    The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive. 2.5 Pen Pressure Testing You can apply pressure gradually to the stylus as well as watch the pressure level on the screen 9 / 11 www.gaomon.net...
  • Page 10: Enable The Windows Ink Feature

    Journal、Adobe Photoshop CC 2014、SketchBook6 and so on. 2.7 Data Export and Import The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings. 10 / 11 www.gaomon.net...
  • Page 11: Troubleshooting

    * Be sure that the side button is set to the proper function you are expecting to occur for the application. 4.Product Specification Graphics Tablet Model M106K Pen Technology Electromagnetic Resonance Working Area 254 x 158.8mm(10X6.25”) Dimension 359.6 x 240 x 10.5mm...
