Summary of Contents for GAOMON M10K2018
- Page 2 8. Do not insert foreign material into the USB port or any other opening of this product. If a metal object or foreign material is inserted into a port or other opening of this product it may cause the product to malfunction or burn out, or cause electronic shock. 1 / 16 www.gaomon.net...
-
Page 3: Table Of Contents
2.7 Enable the Windows Ink Feature ................12 2.8 Mouse Mode(Only for specific models) ..............12 2.9 Data Export and Import ....................13 3. Specifications ......................14 4.Trouble Shooting ......................15 5. Contact Us for After-sell Service ..................16 2 / 16 www.gaomon.net... -
Page 4: Product Overview

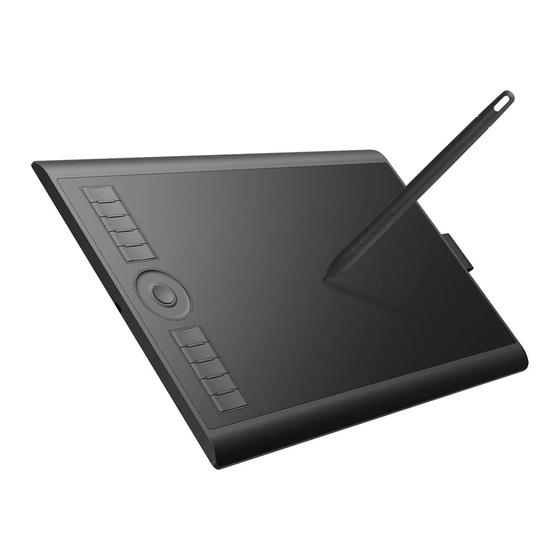

1. Product Overview 1.1 Tablet Introduction Thanks for buying GAOMON M10K Tablet. This is a new generation of professional battery-free drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience. -
Page 5: Tablet Connection
1.2.2 Packing List Stylus Pen(Battery-Free) Pen Nibs Pen Nib Clip Pen Case USB Cable Quick Start Guide Felt Pouch for Nibs 1.3 Tablet Connection Connect the tablet to your computer with USB cable. 4 / 16 www.gaomon.net... -
Page 6: Driver Installation
Windows 7 or later，macOS 10.12 or later 1.4.2 Install Driver Please download the driver from our website: www.gaomon.net/download After finishing installation, you can find the driver icon in the system tray area, which means the driver was installed successfully; when you connect the tablet to... -
Page 7: Pen Nib Replacement
The nib will be wear off after using for a long time, then you need to replace a new nib. 1) Use the pen nib clip to pull the old nib straight out of the pen. (①②） 2) Insert a new pen nib into the stylus and push the nib until it stops. (③④） 6 / 16 www.gaomon.net... -
Page 8: Function Setting
If your monitors are in mirror mode (All monitors display the same content), the tablet maps to the entire space on each monitor and the screen cursor is displayed on each monitor simultaneously. 7 / 16 www.gaomon.net... - Page 9 2. Custom Area: 1.> Enter coordinate values. Or 2.> Drag the corners of the foreground graphic to select the screen area. 2.2.3 Rotate Working Area By changing the direction of the tablet to adapt to the left and right hand operation. We provide four directions of choice. 8 / 16 www.gaomon.net...
-
Page 10: Press Keys Function Setting
Default Setting：Place the cursor on the shortcut key or click the press key to find the default values. Customized Setting：Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect. Enable/Disable Press Keys: Check/Uncheck”Enable Press Keys” 9 / 16 www.gaomon.net... -
Page 11: Pen Buttons Function Setting
2.4 Pen Buttons Function Setting Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect. 10 / 16 www.gaomon.net... -
Page 12: Pressure Sensitivity Setting
The pressure sensitivity will be changed by dragging the slider left or right, the smaller the value, the more the pressure sensitivity. 2.6 Pen Pressure Testing You can gradually apply pressure to the stylus on the screen to test the pressure level. 11 / 16 www.gaomon.net... -
Page 13: Enable The Windows Ink Feature
This means you can click icons or select options at the edge of the screen without moving the pen to the edge of the working area. 12 / 16 www.gaomon.net... -
Page 14: Data Export And Import
2.9 Data Export and Import The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings. 13 / 16 www.gaomon.net... -
Page 15: Specifications
Pen Sensing Height 10mm Interface Micro USB Express Key 11 + Touch Ring OS Support Windows 7 or later, mac OS 10.12 or later Model AP31 Dimension 163 x Φ10.8 mm Weight 10.5g Sensitivity Pressure 8192 Levels 14 / 16 www.gaomon.net... -
Page 16: Trouble Shooting
10mm. Make sure , if not, please change to the USB port is functional The computer can’t recognize the another USB port. tablet For more FAQ, please feel free check： https://blog.gaomon.net/faq-list/ or https://www.gaomon.net/question/ 15 / 16 www.gaomon.net... -
Page 17: Contact Us For After-Sell Service
5. Contact Us for After-sell Service GAOMON TECHNOLOGY CORPORATION www.facebook.com/Gaomonpentablet twitter.com/Gaomonpentablet service@gaomon.net https://www.gaomon.net 16 / 16 www.gaomon.net...
