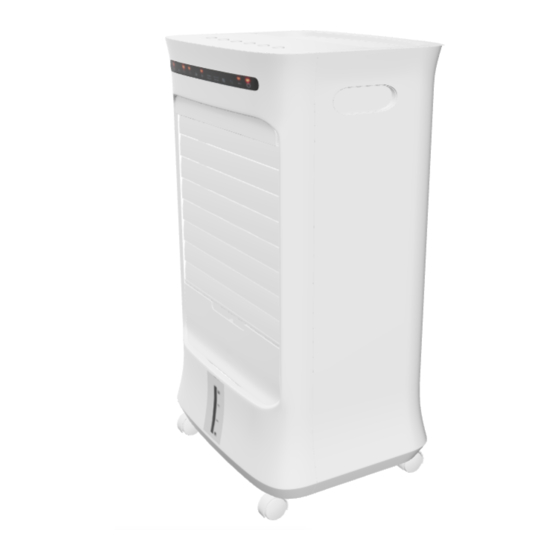

- Page 1 USER’S MANUAL Air Cooler ES10122US THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Notes regarding the operating manual Symbols Warning of electrical voltage This symbol indicates dangers to the life and health of persons due to electrical voltage. Warning This signal word indicates a hazard with an average risk level which, if not avoided, can result in serious injury or death. Caution This signal word indicates a hazard with a low risk level which, if not avoided, can result in minor or moderate injury.
- Page 3 Warning Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and / or serious injury. Save all warnings and instructions for future reference. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe...
- Page 4 • Ensure that all electric cables outside of the device are protected from damage (e.g. caused by animals). • Never use the device if electric cables or the power connection are damaged! • The electrical connection must correspond to the specifications in chapter Technical data.
-
Page 5: Intended Use
• Only transport the device in an upright position with an emptied water tank. • Empty the water tank before transport and storage. Do not drink the water. Health hazard! • Only fill the water tank with fresh drinking water, ice cubes made of fresh drinking water and / or suitable ice packs. -
Page 6: Personnel Qualifications
Personnel qualifications People who use this device must: • be aware of the dangers that occur when working with electric devices in damp areas. Residual risks Warning of electrical voltage Work in the electrical components must only be carried out by an authorised specialist company! Warning of electrical voltage Before any work on the device, remove the mains plug from... -
Page 7: Behaviour In The Event Of An Emergency
Warning Risk of suffocation! Do not leave the packaging lying around. Children may use it as a dangerous toy. Note Do not operate the device without an inserted air filter! Without the air filter, the inside of the device will be heavily contaminated. -
Page 8: Device Depiction
The fan speed can be set to three stages. The discharge direction of the cooled air can be manually adjusted via the ventil ation flaps as well as optionally selectable automatic swing mode. The device has a night mode enabling ultra-silent operation at bedtime. -
Page 9: Transport And Storage
Designation Control panel Display panel Vertical air outlet Horizontal air outlet Cover for water tank Front housing Water level indicator Top cover Rear housing Air filter Honeycomb filter Power cord rewinder panel castors Remote control Ice packs Transport and storage Note If you store or transport the device improperly, the device may be damaged. - Page 10 Before transporting the device, observe the following: • Switch the device off. • Hold onto the mains plug while pulling the power cable out of the mains socket. • Do not use the power cable to drag the device. • Only wheel the device on a level and smooth surface. After transporting the device, observe the following: •...
-
Page 11: Operation
Operation Avoid open doors and windows. • Operation elements Control panel Display panel Designation Meaning Cooling button Switching the air cooling mode on or off Oscillation button Switching the swing function on or off Timer button Switching the swing function on or off 1h to 15h Mode button Selection button for natural... - Page 12 Designation Meaning Cooling LED Illuminated when air cooling mode is activated Flashes when water tank is less than 2.1 quarts Oscillation LED Illuminated when swing function is activated Hours LEDs: 8h Indication of the number of hours of the activated timer. Hours LEDs: 4h Hours LEDs: 2h Detailed information see below...
-
Page 13: Memory Function
• The device starts in air cooling, enter the natural mode for the first time. In case of initial start-up the swing function is also activated. • Start for the first time, default is low wind speed(flash 32), normal wind mode(no display) After the air cooler is used, you can switch it off. - Page 14 • When the water tank is short of water during the cooling operation or when the cooling function is on, the buzzer will sound for 3 times and Cooling LED will blink at 1Hz until the cooling function is cancelled or the power is cut off. •...
- Page 15 Natural wind mode： It imitates the effect of natural wind, which can be divided into 3 fan stage (High, medium, low) with the setting of speed button. • Change law of high natural wind：H(50S) -M(50S) -L(50S) -H(50S) -M(50S) -H(50S) -M(75S) -H(50S) -L(50S) -H(25S) -L(50S) -H(50S) -M(75S) -H(75S) -L(50S) •...
- Page 16 Setting wind speed Press speed button(20) to set the wind speed. The setting sequence is as follows: • When press the On button, the default is low wind speed, fan stage(32)will flash. • Press once, enter the medium speed, fan stage LEDs (31) will flash.
-
Page 17: Setting The Timer
The hour LEDs flash as follows: 1h 2h 9h 10h 11h 12h 13h 14h 15h TIME √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √... - Page 18 Remote control Designation Meaning On/Off button Switching the device on or off Timer button Setting timing/reservation and switching the timer on or Oscillation button Switching the swing function on or off Speed button Setting the fan speed Mode button Selection button for ventilation Cooling button Switching the air cooling mode on or off...
-
Page 19: Refilling Water
4. Please keep the remote control properly to avoid collision and fall. 5. When you don't use the remote control, please take out the battery and keep it properly. Refilling water Open the cover of water tank, add water or ice. Please be careful not to exceed the maximum water level. -
Page 20: Swing Function
Swing function The swing function can be switched on in any operating mode if required. Behind the horizontal ventilation flaps, there are vertical air flaps integrated in the device. By means of the swing function, these air flaps are moved automatically and thus ensure continuous air circulation. -
Page 21: Available Accessories
Available accessories Warning Only use accessories and additional equipment specified in the operating manual. Using insertion tools or accessories other than those specified in the operating manual may cause a risk of injury. Errors and faults The device has been checked for proper functioning several times during production. - Page 22 The device is running, but there is no air cooling or pump operation: • Check whether air cooling mode is activated. The Cooling LED(22) should be illuminated. • Check the filling level of the water tank(see chapter Filling the water tank). The Cooling LED (22) should not flash. •...
-
Page 23: Maintenance Intervals
The device does not respond to the infrared remote control: • Check whether the distance between remote control and device is too large and reduce it if necessary. • Make sure there are no obstacles, such as furniture or walls between the device and the remote control. - Page 24 Activities required before starting maintenance Warning of electrical voltage Do not touch the mains plug with wet or damp hands. • Switch the device off. • Hold onto the mains plug while pulling the power cable out of the mains socket. Visual inspection of the inside of the device for dirt 1.
-
Page 25: Technical Annex
3. Reminder: clean the air filter when using a month. Technical annex Technical data Parameter Value Model ES10122US-WH Rated voltage 120 V Frequency 60Hz Rated power input Air speeds ≥1.8m/s. - Page 26 Electrical schematic diagram Plug Motor H(3) M(2) L(1) Fuse Synchronus Capacltance Synchronus Motor Display Synchronus Panel Motor Water Pump Water Pump Water Lovel Switch Water Level Switch Disposal The icon with the crossed-out waste bin on waste electrical or electronic equipment stipulates that this equipment must not be disposed of with the household waste at the end of its life.
- Page 27 With your inspiring rating, COSTWAY will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! Mit Ihrer inspirierenden Bewertung wird COSTWAY konsistenter sein, um Ihnen EIN SCHÖNES EINKAUFSERLEBNIS, GUTE PRODUKTE und EFFIZIENTEN SERVICE zu bieten! Avec votre évaluation inspirante, COSTWAY continuera à...
