- Page 1 USER’S MANUAL Air Cooler ES10125US-WH THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Notes regarding the operating manual Symbols Warning of electrical voltage This symbol indicates dangers to the life and health of persons due to electrical voltage. Warning This signal word indicates a hazard with an average risk level which, if not avoided, can result in serious injury or death. Caution This signal word indicates a hazard with an average risk level which, if not avoided, can result in serious injury or death.
- Page 3 Save all warnings and instructions for future reference. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 4 • Observe the device's power input, cable length and intended use when selecting extensions to the power cable. Completely unroll extension cables. Avoid electrical overload. • Before carrying out maintenance, care or repair work on the device, remove the mains plug from the mains socket. Hold onto the mains plug while doing so.
-
Page 5: Intended Use
Intended use Only use the device for cooling the air in interior spaces while adhering to and following the technical data. Intended use comprises cooling the air in: • living spaces • Museums • warehouses and archives • libraries • call centres and computer rooms Improper use •... - Page 6 Warning of electrical voltage Before any work on the device, remove the mains plug from the mains socket! Hold onto the mains plug while pulling the power cable out of the mains socket. Warning The liquid inside the ice packs can be harmful to health! If the liquid was swallowed, immediately seek medical attention.
-
Page 7: Information About The Device

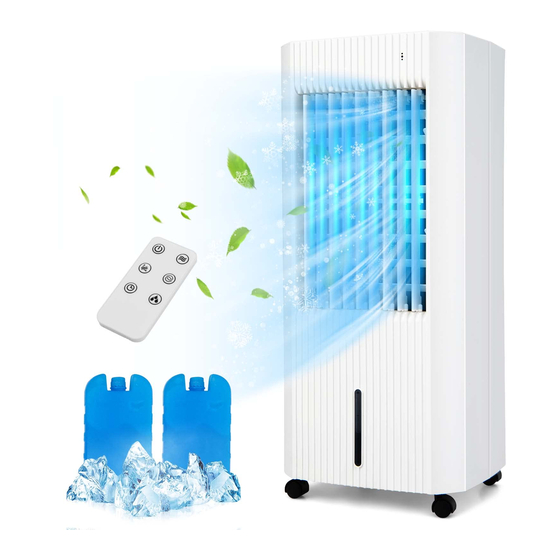

Information about the device Description of the device The air cooler lowers the room temperature to a comfortable degree by ventilating cooling. The device is filled with cold water or optionally with ice cubes and / or ice packs in order to cool down the incoming warm air at the filter and to blow out the cold air thus generated via the fan. -
Page 8: Transport And Storage
Transport and storage Note If you store or transport the device improperly, the device may be damaged. Note the information regarding transport and storage of the device. Transport To make the device easier to transport, it is fitted with wheels. To make the device easier to transport, it is fitted with a carry handle. - Page 9 Start-up Do not use the air cooler near curtains or other inflammable places, the spacing is at least 50cm(20”). Operation • Avoid open doors and windows. Operation elements Control panel Display panel Designation Meaning Cooling button Switching the air cooling mode on or off Oscillation button Switching the swing function on or off Setting timing/reservation and switching...
-
Page 10: Memory Function
Switching the device on Once you have completely installed the device, you can switch it on. When the power is switched on, all LED lights will be on for about 1 second. At the same time, there will be a long buzzer. After that, all LED lights will be off and go into standby mode. - Page 11 • When the water tank is short of water during the cooling operation or when the cooling function is on, the buzzer will sound 3 times and the Cooling LED will blink at 1Hz until the cooling function is cancelled or the power is cut off.
- Page 12 Sleep wind mode: 1.When set to high sleep wind, the fan runs for half an hour according to high natural wind, then turns to medium natural wind, and then turns to low natural wind after half an hour until the end of the preset time or until it is turned off.
-
Page 13: Setting The Timer
The hour LEDs flash as follows: TIME 1h LED √ √ √ √ √ √ √ √ 2h LED √ √ √ √ √ √ √ √ 4h LED √ √ √ √ √ √ √ √ 8h LED √ √... -
Page 14: Refilling Water
Designation Meaning On/Off button Switching the device on or off Oscillation button Switching the swing function on or off Timer button Setting timing/reservation and switching the timer on or off Speed button Setting the fan speed Mode button Selection button for ventilation Cooling button Switching the air cooling mode on or off Notes... -
Page 15: Auto Stop Function
Water level indicator Installation Method of Remote Controller Battery negative positive 1. The battery cover can be removed by gently pulling it down. 2. Put the battery into the battery box. (Note the positive and negative direction of the battery) 3. -
Page 16: Available Accessories
Do not touch the mains plug with wet or damp hands. Switch off the device. • Hold onto the mains plug while pulling the power cable out of the mains socket. • Empty and clean the water tank (see chapter Maintenance). •... - Page 17 The device is running, but there is no air cooling or pump operation: • Check whether air cooling mode is activated. The Cooling LED(22) should be illuminated. • Check the filling level of the water tank(see chapter Filling the water tank).
-
Page 18: Maintenance Intervals
Note Wait for at least 3 minutes after maintenance and repair work. Only then switch the device back on. Maintenance intervals Maintenance Before At least At least At least At least and care every needed every 2 every 4 every 6 annually internal start-up... - Page 19 Cleaning the housing Clean the device with a soft, damp and lint-free cloth. Ensure that no moisture enters the housing. Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth.
-
Page 20: Technical Data
2. If the screen cloth is not washed for a long time, it may cause bad conditions such as lower air flow and increased noise. 3. Reminder: Clean the air filter after one month of use. Technical data Parameter Value Model ES10125US-WH Rated voltage 120V Frequency 60Hz Rated power input Air speeds 1.8m/s - 4.9m/s... - Page 21 With your inspiring rating, COSTWAY will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! Mit Ihrer inspirierenden Bewertung wird COSTWAY konsistenter sein, um Ihnen EIN SCHÖNES EINKAUFSERLEBNIS, GUTE PRODUKTE und EFFIZIENTEN SERVICE zu bieten! Avec votre évaluation inspirante, COSTWAY continuera à...
