 SECTION 1 (CONTINUED)

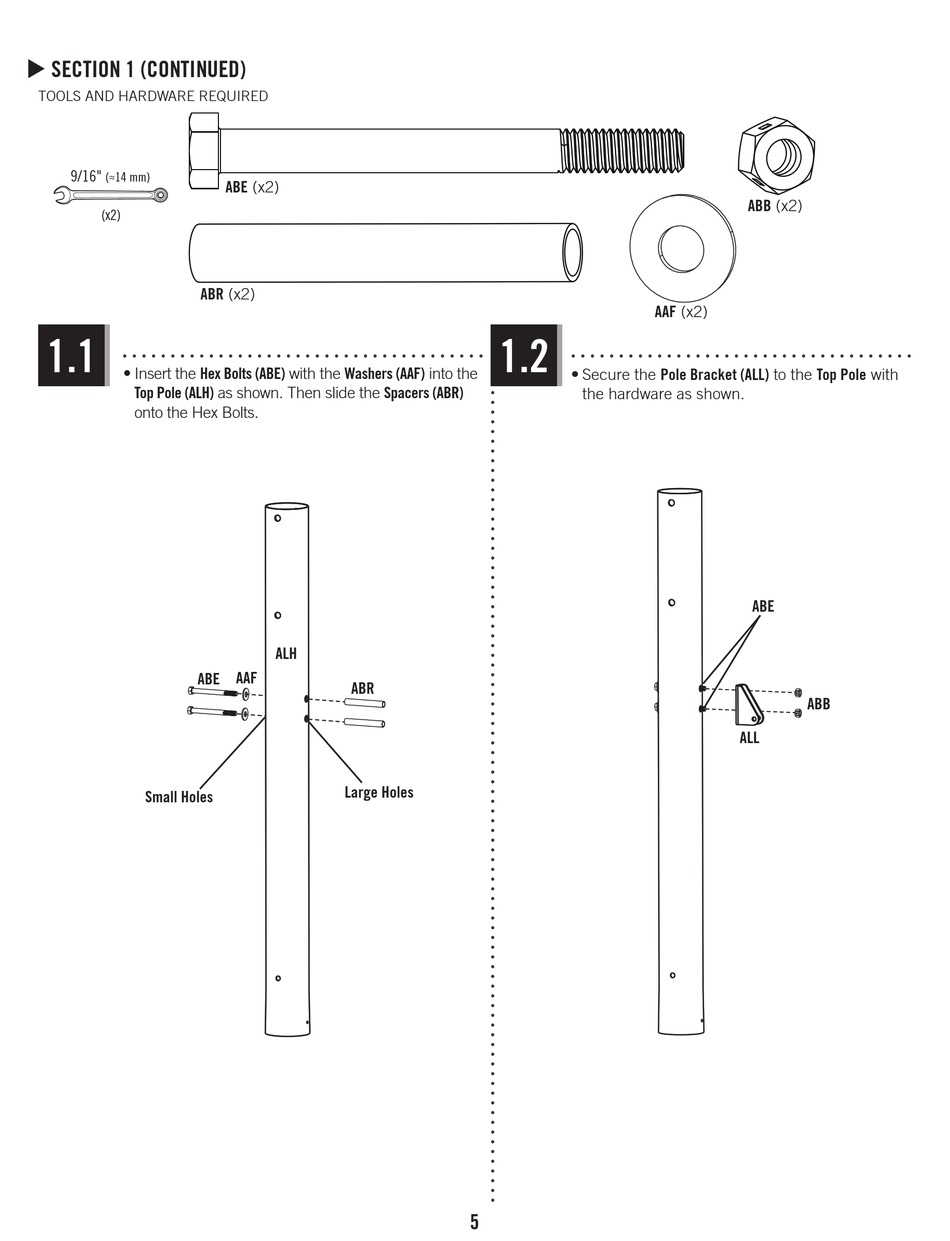

TOOLS AND HARDWARE REQUIRED
9/16"
(≈14 mm)
ABE (x2)
ABB (x2)
(x2)
ABR (x2)
AAF (x2)
1.1 1.2
• Insert the Hex Bolts (ABE) with the Washers (AAF) into the
• Secure the Pole Bracket (ALL) to the Top Pole with
Top Pole (ALH) as shown. Then slide the Spacers (ABR)
the hardware as shown.
onto the Hex Bolts.
ABE
ALH
AAF
ABE
ABR
ABB
ALL
Large Holes
Small Holes
