PERLA

MANUALE D'USO E MANUALE DI INSTALLAZIONE

OWNER'S MANUAL & INSTALLATION MANUAL

Need help?

Do you have a question about the PERLA A and is the answer not in the manual?

Questions and answers

Summary of Contents for Lamborghini Caloreclima PERLA A

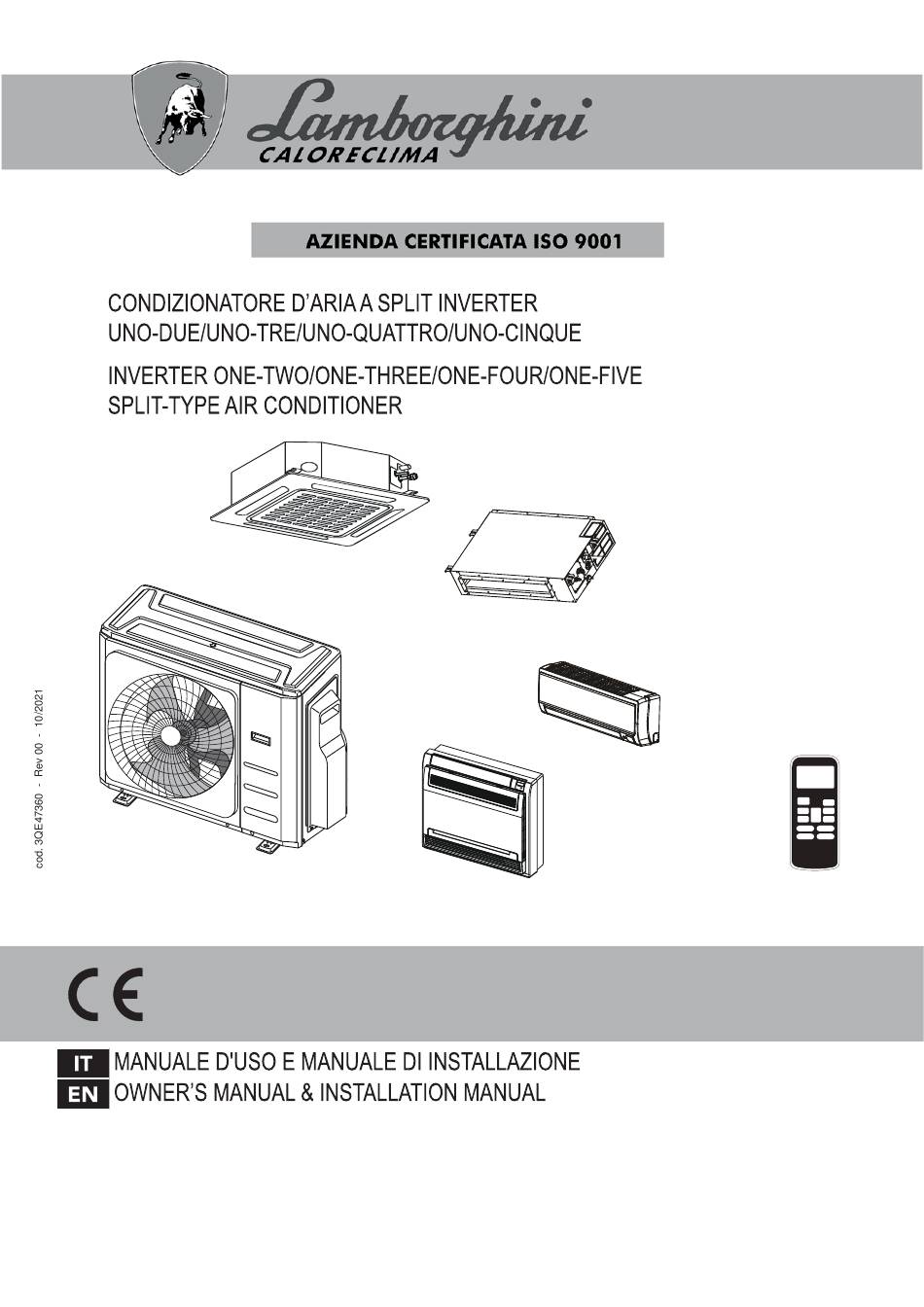

Page 1 PERLA MANUALE D'USO E MANUALE DI INSTALLAZIONE OWNER’S MANUAL & INSTALLATION MANUAL...
Page 30 S(A) L(A) S(2) S(A) N(A) L(A) S(2) N(A) L(A) S(2) S(A) N(A) N(B) L(B) L S(1) S(B) N(B) L(B) L S(1) S(B) S(1) S(B) N(B) L(B) L...
Page 44 In caso di guasto, il cliente deve richiedere entro il termine di decadenza di 30 giorni l'intervento del Servizio Assistenza di zona, autorizzato Lamborghini Caloreclima. I nominativi dei Servizi Assistenza autorizzati Lamborghini Caloreclima sono reperibili: attraverso il sito internet www.lamborghnicalor.it...
Page 46 ........................... 1. Unit Parts .....................................08 2. Operating temperature ..............................10 3. Features ....................................11 ........................IMPORTANT NOTE: Read this manual and SAFETY MANUAL(if any) carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.
Page 47 ..............................................................................1. Select installation location ..............................21 ..................................22 2. Install drain joint 3. Anchor outdoor unit ................................22 ............1. Cut pipe ......................................24 2. Remove burrs ...................................24 3. Flare pipe ends ..................................24 4. Connect pipes ....................................25 ....................1. Outdoor Uint Wiring .................................29 2.
Page 48: Safety Precautions
Safety Precautions Read Safety Precautions Before Operation and Installation Incorrect installation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classiﬁed as either a WARNING or CAUTION. WARNING This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Page 49 CLEANING AND MAINTENANCE WARNINGS Do not clean the air conditioner with combustible cleaning agents. Combustible cleaning agents • can cause fire or deformation. CAUTION Turn off the air conditioner and disconnect the power if you are not going to use it for a long time. •...
Page 50 WARNINGS FOR PRODUCT INSTALLATION 2. Installation must be performed according to the installation instructions. Improper installation can cause water leakage, electrical shock, or fire. (In North America,installation must be performed in accordance with the requirement of NEC and CEC by authorized personnel only.) 3.
Page 51 0.6 /1.8 /2.2 9 /1 /1 1.95 0.6 /1.8 /2.2 33 /4 /2.5 1.05 0.6 /1.8 /2.2 9.5 /1.5 /1 0.6 /1.8 /2.2 34.5 /4 /3 0.6 /1.8 /2.2 10.5 /1.5 /1 2.05 0.6 /1.8 /2.2 36 /4 /3 1.15 0.6 /1.8 /2.2 11.5 /1.5 /1 0.6 /1.8 /2.2...
Page 52 Unit Parts And Major Functions Wall-mounted type Duct / Ceiling type 1. Panel frame 2. Rear air intake grille 3. Front panel 4. Air purifying filter & Air filter(behind) 1. Air outlet 5. Horizontal louver 2. Air inlet 6. LCD display window 3.
Page 53 Floor and standing type(console) Compact four-way cassette type 1. Air flow louver (at air outlet) 1. Drain pump(drain water from indoor unit) 2. Air inlet (containing air filter) 2. Drain hose 3. Remote controller 3. Air outlet 4. Installation part 4.
Page 54 For multi-split type air conditioners, one outdoor unit can be matched to different types of indoor units. All of the pictures in this manual are for demonstration purposes only. Your air conditioner may be slightly different, if similar in shape. The following pages introduce several kinds of indoor units that can be matched with the outdoor units.
Page 55 • A white mist may be generated due to a large • The compressor cannot restart for 3 minutes temperature difference between air inlet and after it stops. air outlet on COOL mode in places with high relative humidity. • A white mist may be generated due to moisture •...
Page 56 The air conditioner draws in heat from the When the indoor temperature reaches the set outdoor unit and releases it via the indoor unit temperature setting, the compressor will stop during heating. When the outdoor temperature falls, heat drawn in by the air conditioner automatically, and the air conditioner turns to FAN only mode.
Page 57 Manual Operations And Maintenance While two or more indoor units are To achieve optimal performance, please note the simultaneously operating, make sure the modes following: do not conflict with each other. The heat mode • Adjust the direction of the air flow so that it is claims precedence over all other modes.
Page 58: Troubleshooting
Troubleshooting If any of the following conditions occurs, turn off your unit immediately! The power cord is damaged or abnormally warm • You smell a burning odor • The unit emits loud or abnormal sounds • A power fuse blows or the circuit breaker frequently trips •...
Page 59 A squeaking sound is heard when the system is OFF or in COOL mode. The The indoor unit noise is also heard when the drain pump (optional) is in operation. makes noises A squeaking sound may occur after running the unit in HEAT mode due to expansion and contraction of the unit’...
Page 60 When troubles occur, please check the following points before contacting a repair company. Power failure Wait for the power to be restored The power switch is off Turn on the power The unit The fuse is burned out Replace the fuse is not Remote control batteries are dead Replace the remote control batteries...
Page 61 Accessories The air conditioning system comes with the following accessories. Use all of the installation parts and accessories to install the air conditioner. Improper installation may result in water leakage, electrical shock and fire, or cause the equipment to fail. The items are not included with the air conditioner must be purchased separately.
Page 62: Installation Summary
Installation Summary (L1) (L2)
Page 63: Installation Diagram
Installation Diagram Air-break Switch Air-break Switch Drainage Pipe 5 4 3 Outdoor Unit Power Cable The maximum amount of the connection cables is 5. This section is for reference only. To prevent wall damage, use a stud finder to • locate studs.
Page 64: Specifications
Speciﬁcations Number of units that can be used Connected units 1-5 units together Compressor stop/start frequency Stop time 3 min or more voltage fluctuation within ±10% of rated voltage Power source voltage voltage drop during start within ±15% of rated voltage interval unbalance within ±3% of rated voltage 1 drive 2...
Page 65: Outdoor Unit Installation
Outdoor Unit Installation Install the unit by following local codes and install unit in the following locations: DO NOT regulations , there may be differ slightly Near an obstacle that will block air inlets between different regions. and outlets Near a public street, crowded areas, or where noise from the unit will disturb others Near animals or plants that will be harmed by hot air discharge...
Page 66 Step 2: Install drain joint Step 3: Anchor outdoor unit (Heat pump unit only) The outdoor unit can be anchored to the ground or to a wall-mounted bracket with Before bolting the outdoor unit in place, you must bolt(M10). Prepare the installation base of the install the drain joint at the bottom of the unit.
Page 67 You must drill a hole in the wall for the refrigerant piping, and the signal cable that will connect the indoor and outdoor units. 760x590x285 (29.9x23.2x11.2) 530 (20.85) 290 (11.4) 1. Determine the location of the wall hole 810x558x310 (31.9x22x12.2) 549 (21.6) 325 (12.8) based on the location of the outdoor unit.
Page 68: Refrigerant Piping Connection
Refrigerant Piping Connection For quick-connect models, please refer to the internal machine manual for the installation method of the connecting pipe. Be extra careful not to damage, dent, or deform The external machine manual does not the pipe while cutting. This will drastically reduce repeat the instructions.
Page 69 4. Remove PVC tape from ends of pipe when ready to perform ﬂaring work. 5. Clamp ﬂare form on the end of the pipe. The end of the pipe must extend beyond the ﬂare Indoor unit tubing Pipe Flare nut form.
Page 70 7. Thread this pipeline through the wall and connect it to the outdoor unit. Carefully bend the tubing in the middle 8. Insulate all the piping, including the valves according to the diagram below. of the outdoor unit. bend the tubing more than 90° or more than 9.
Page 71 Wiring Make sure that you do not cross your electrical wiring with your signal wiring. This may cause distortion and interference. 1. All wiring must comply with local and national The unit must be connected to the electrical codes, regulations and must be main outlet.
Page 72 1. Prepare the cable for connection Air switch a. You must first choose the right cable (purchased seperately) Indoor unit power wires size. Be sure to use H07RN-F cables. NOTE: In North America, choose the cable type according to the local electrical codes and regulations.
Page 73 Remove the electric cover of the outdoor unit. If there is no cover on the outdoor unit, take off the bolts from the maintenance board and remove the protection board. Cover Screw 3. Connect the u-lugs to the terminals Match the wire colors/labels with the labels on the terminal block, and firmly screw the u-lug of each wire to its corresponding terminal.
Page 74 For quick-connector models, please refer to <<Owner’s Manual & Installation Manual >> packed with the indoor unit. Refer to the following figures if end-users wish to perform their own wiring. Run the main power cord through the lower line-outlet of the cord clamp. ---- This symbol indicates field wiring.
Page 75 S(A) L(A) N(A) L(B) N(B) S(B) L(A) N(A) S(A) L(B) N(B) S(B) Model M Model N Model O Model P Model Q Model R 1(A) 2(A) 3(A) 1(B) 2(B) 3(B) L1(A) L2(A) S(A) L1(B) L2(B)S(B) POWER POWER SUPPLY SUPPLY Model S Model T L(A) N(A) S(A) L(B) N(B) S(B)
Page 76 Model A Model C Model B Model D Model E Model F L(A) N(A) S(A) L(B) N(B) S(B) L(C) N(C) S(C) Model G Model H Model I L(C) N(C) S(C) To indoor To indoor To indoor unit A unit B unit C Model J...
Page 77 Model A Model B Model D Model C L(A) N(A) S(A) L(B) N(B) S(B) L(C) N(C) S(C) L(D) N(D) S(D) Model E Model F L1(A) L2(A) S(A) L1(B) L2(B) S(B) L1(C) L2(C) S(C) L1(D)L2(D)S(D) 1(A) 2(A) 3(A) 1(B) 2(B) 3(B) 1(C) 2(C) 3(C) 1(D) 2(D) 3(D) TO A TO B...
Page 78 L1(A) L2(A) S(A) L1(B) L2(B) S(B) L1(C) L2(C) S(C) L1(D)L2(D)S(D) 1(A) 2(A) 3(A) 1(B) 2(B) 3(B) 1(C) 2(C) 3(C) 1(D) 2(D) 3(D) TO B TO A TO C TO D TO A TO B TO C TO D Model J Model I Mode K Model L...
Page 79 Model B Model A Model C Model D 1(C) 2(C) 3(C) 1(D) 2(D) 3(D) 1(E) 2(E) 3(E) 1(A) 2(A) 3(A) 1(B) 2(B) 3(B) L(C) N(C) S(C) L(D) N(D) S(D) L(E) N(E) S(E) L(A) N(A) S(A) L(B) N(B) S(B) TO C TO D TO E TO B TO A...
Page 80 L1(A) L2(A)S(A) L1(B)L 2(B) S(B) L1(C) L2(C) S(C) L1(D)L2(D) S(D) L1(E) L2(E) S(E) 1(C) 2(C) 3(C) 1(D) 2(D) 3(D) 1(E) 2(E) 3(E) 1(A) 2(A) 3(A) 1(B) 2(B) 3(B) TO A TO B TO C TO D TO E TO B TO A TO C TO D TO E...
Page 81 Air Evacuation If there is no change in system pressure, unscrew the cap from the packed valve (high Air and foreign matter in the refrigerant circuit can pressure valve). If there is a change in system pressure, there may be a gas leak. cause abnormal rises in pressure, which can damage the air conditioner, reduce its efﬁciency, and cause 8.
Page 82 • Refrigerant charging must be performed after wiring, vacuuming, and the leak testing. exceed the maximum allowable quantity of refrigerant or overcharge the system. • Doing so can damage the unit or impact it’s functioning. Charging with unsuitable substances may cause explosions or accidents. Ensure that the •...
Page 83 Only for Australia models : • mix refrigerants types. N=2(one-twin models),N=3(one-three models),N=4(one-four models),N=5(one-five models). Some systems require additional charging depending on pipe lengths. The standard pipe length is 10m. The additional refrigerant to be charged can be calculated using the following formula: Less than Vacuum Pump Standard pipe length x N...
Page 84 Electrical safety check Gas leak check Perform the electrical safety check after 1. Soap water method: completing installation. Cover the following Apply a soap-water solution or a liquid areas: neutral detergent on the indoor unit 1. Insulated resistance connection or outdoor unit connections with The insulated resistance must be more a soft brush to check for leakage of the than 2MΩ.
Page 85 Test Run f. Check to see that the drainage system is unimpeded and draining smoothly. A test run must be performed after the entire g. Ensure there is no vibration or abnormal system has been completely installed. Conﬁrm noise during operation. the following points before performing the test: 5.
Page 86: Function Of Automatic Wiring/Piping Correction
Function of Automatic Wiring/Piping Correction More recent models now feature automatic correction of wiring/piping errors. Press the "check switch" on the outdoor unit PCB board for 5 seconds until the LED displays "CE”, indicatomg that this function is working, Approximately 5-10 minutes after the switch is pressed, the "CE" disappears, meaning that the wiring/piping error is corrected and all wiring/piping is properly connected.
Page 87 The design and speciﬁcations are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to the service website, please check for the latest version.
Page 88 DIAMANT M LAMBORGHINI Caloreclima è un marchio del gruppo FERROLI Spa 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A ¬ tel. +39.045.6139411 ¬ fax +39.045.6100933 www.ferroli.com Made in China Cod. 3QEXXXX - Rev. 00 - xx/2019 - working...
