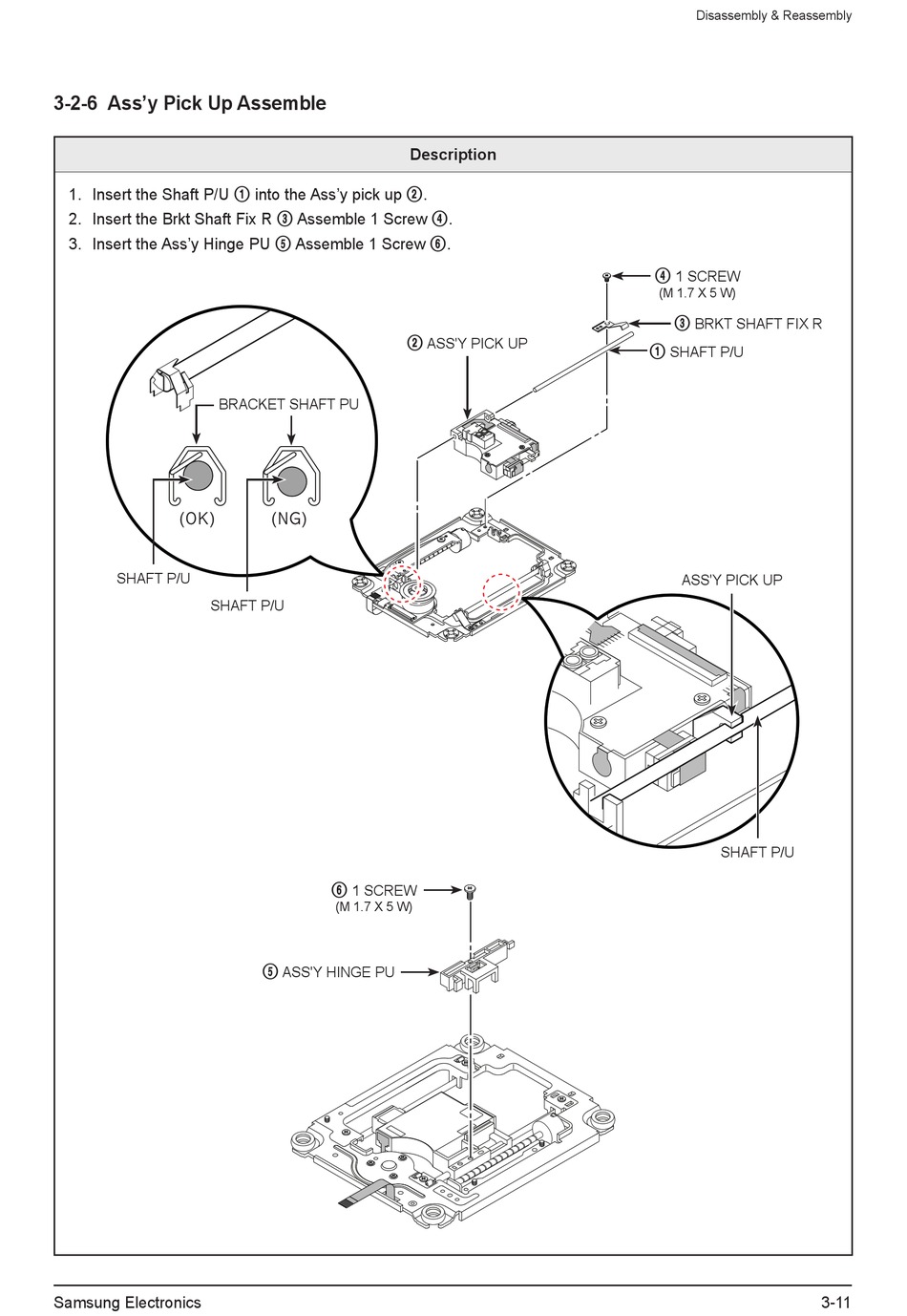

3-2-6 Ass'y Pick Up Assemble
1. Insert the Shaft P/U 1 into the Ass'y pick up 2.
2. Insert the Brkt Shaft Fix R 3 Assemble 1 Screw 4.
3. Insert the Ass'y Hinge PU 5 Assemble 1 Screw 6.
BRACKET SHAFT PU
SHAFT P/U
SHAFT P/U
Samsung Electronics
Description
ASS'Y PICK UP
2
1 SCREW
6
(M 1.7 X 5 W)
ASS'Y HINGE PU
5
Disassembly & Reassembly
1 SCREW
4
(M 1.7 X 5 W)
BRKT SHAFT FIX R
3
SHAFT P/U
1
ASS'Y PICK UP
SHAFT P/U
3-11
