3. Disassembly & Reassembly

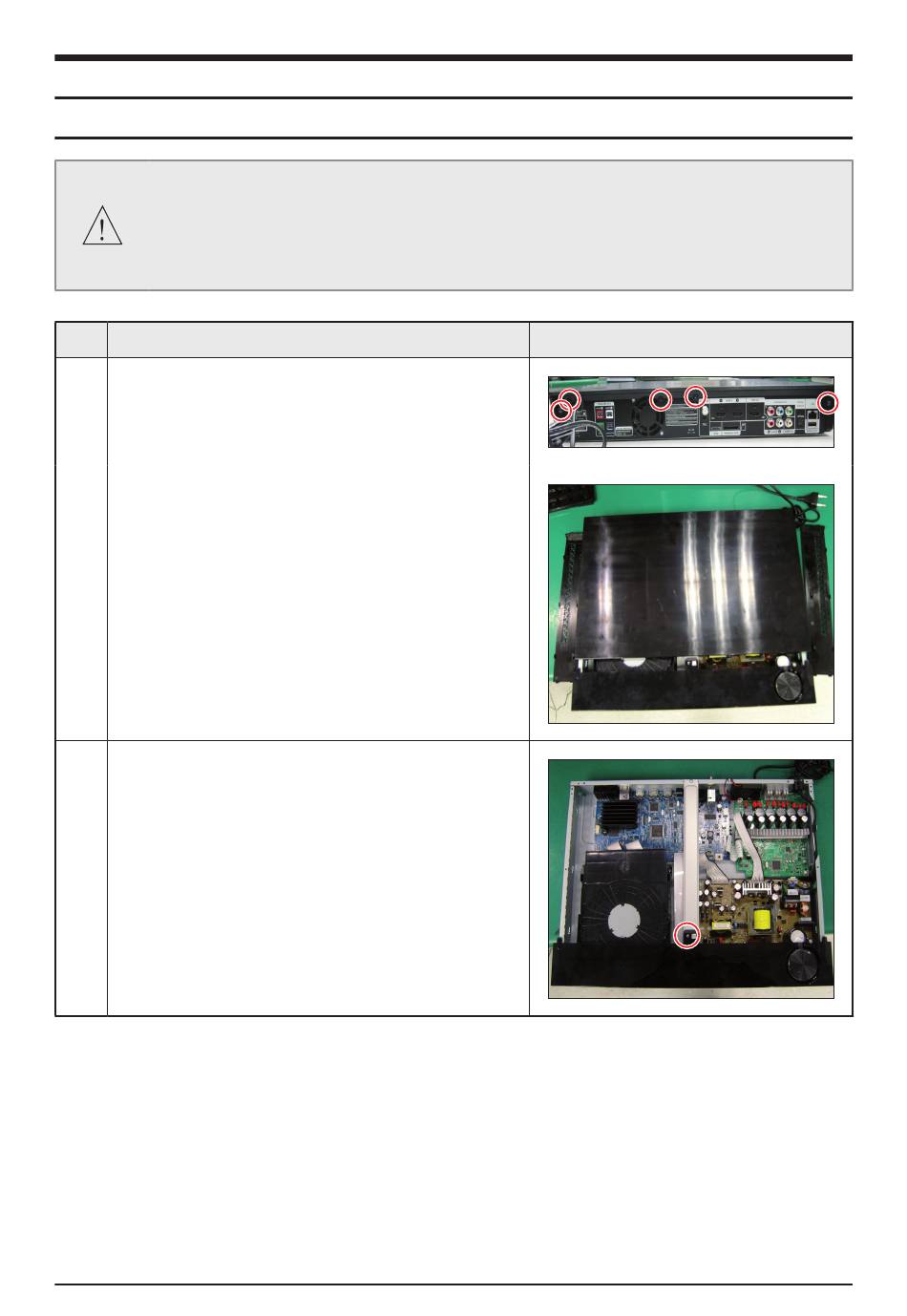

3-1 Overall Disassembly & Reassembly
- Be careful to follow the disassembly sequence described in the manual. Otherwise, the product
may be damaged.
- Be sure to carefully read and understand the safety instructions before performing any work as
the IC chips on the PCB are vulnerable to static electricity.
- In order to assemble reverse the order of disassembly.
No.
1
1) Unfasten 5 screws on the DECO-SIDE.
2) Remove DECO-SIDE & TOP on the direction of Rear.
2
1) Unfasten 1 screw to remove CABINET-FRONT.
Samsung Electronics
Description
Disassembly & Reassembly
Description Photo
3-1
