No.
4

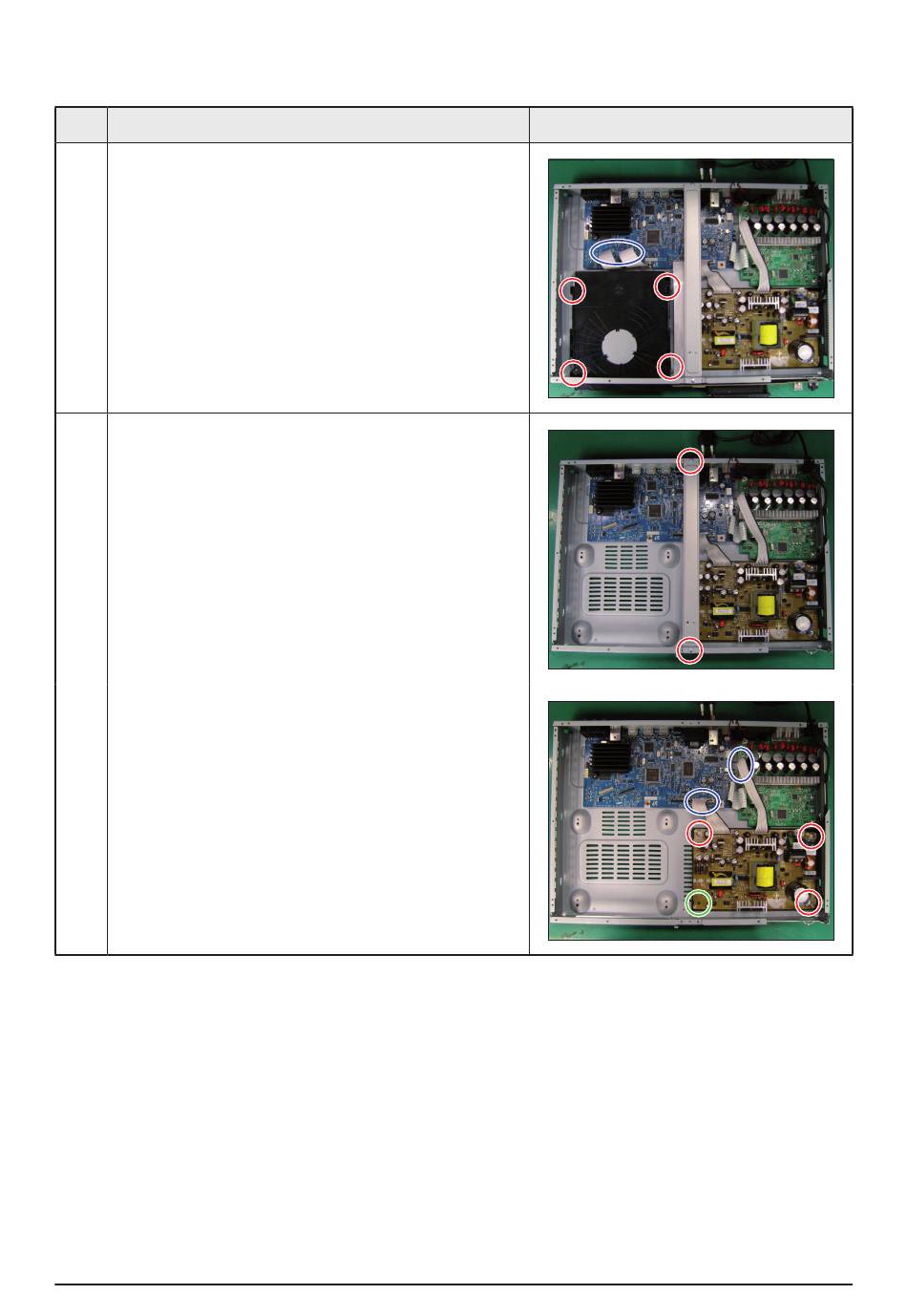

1) Unfasten 4 screws, disconnect FPC wire, and remove
ASSY-DECK.
5
1) Unfasten 2 screws, then remove BRACKET-TOP.
2) Unfasten 3 screws, loosen 1 hook, and disconnect
2 wires and remove ASSY-SMPS and POWER-
CORD.
Samsung Electronics
Description
Disassembly & Reassembly
Description Photo
3-3
