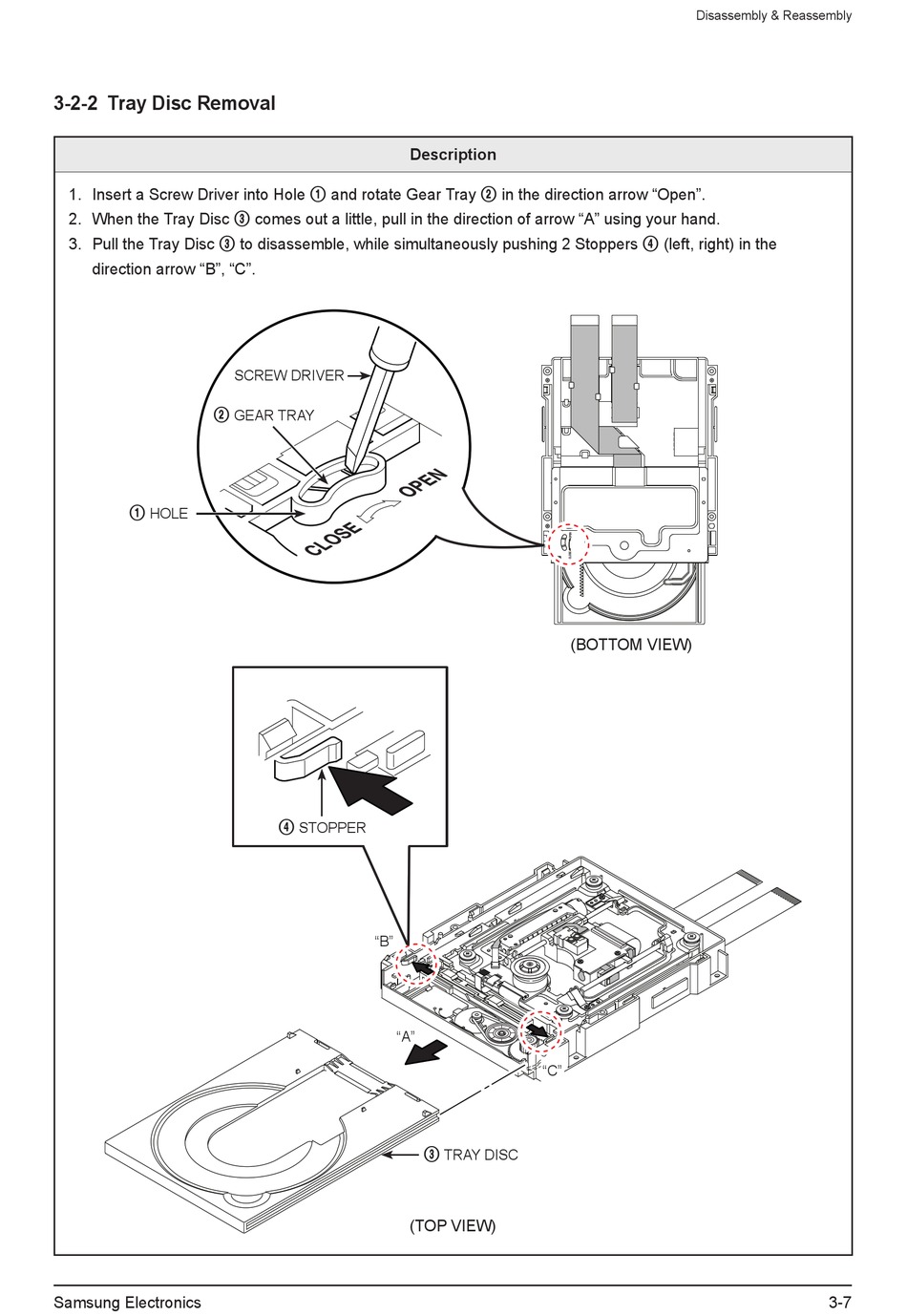

3-2-2 Tray Disc Removal
1. Insert a Screw Driver into Hole 1 and rotate Gear Tray 2 in the direction arrow "Open".
2. When the Tray Disc 3 comes out a little, pull in the direction of arrow "A" using your hand.
3. Pull the Tray Disc 3 to disassemble, while simultaneously pushing 2 Stoppers 4 (left, right) in the
direction arrow "B", "C".
2
HOLE
1
Samsung Electronics
SCREW DRIVER
GEAR TRAY
STOPPER
4
"B"
"A"
Description
(BOTTOM VIEW)
"C"
TRAY DISC
3
(TOP VIEW)
Disassembly & Reassembly
3-7
