- Page 1 Designing, Manufacturing and Supplying WB Series Electric Isolated Transducer and Digital Electrical Transducer since 1989 USER MANUAL WBI415S91 AC current transducer www.wb-my.com wbwm@wbdz.cn Tel: 86 0816 2971265 Fax: 86 0816 2281934 ISO9001 ISO14000 ISO18000 Certified...
- Page 2 WBI415S91 AC current transducer Safety claim The information in the safety claim of the equipment documentation is intended to ensure that equipment is properly installed in order to maintain it in a condition. It is assumed that everyone who will be associated with the equipment will be familiar with the contents of that safety section, or this safety guide.

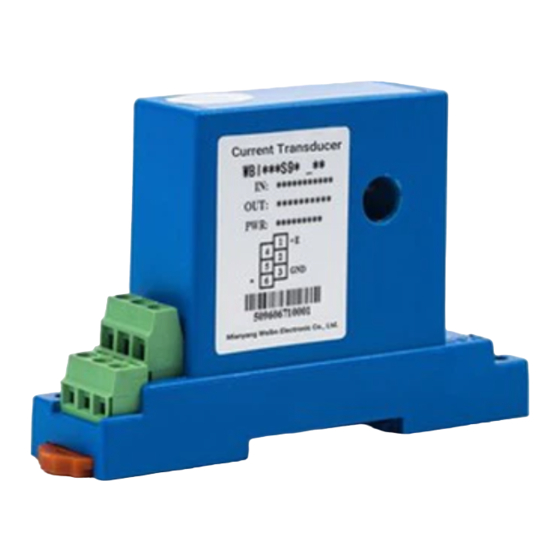

- Page 3 3.2 Power frequency magnetic field immunity test according to IEC 61000-4-8:1993 Product Description and Application WBI415S91 converts AC input current into a load independent output signal RMS 0-5V. It has adopted electromagnetic isolation principle for real time measurement of AC current from electric net or electric circuit.
- Page 4 Product Terminal Identification Drawing Input I Auxiliary Power/Output Ground（GND） Auxiliary Power（+E） Output (Uz) Non-identified terminal cannot be used Key Technical Data: 1. Input: AC 0~50A; 2. Output: True-RMS 0-5V; 0-10V ( the power supply voltage must bigger than 15V dc ) 3.
- Page 5 14. Mounting : DIN Rail 35mm Mounting or screw mounting Instruction of Installation and Use 1. The product has adopted structure compliance with EN50022; suitable for DIN rail mounting NS35/7.5, NS35/15. Installation steps are as following (please reference to dimensional drawing): Step 1: Immobilize one side of product‘s mounting trough to the DIN mounting rail;...
- Page 6 Power Sign Sour Transducer (3) Warming up the transducer for 3 minutes (4) using output monitoring meter V1 to measuring the output of signal power source instrument, set a any input value which is within the measuring range of the transducer Ir (e.g. if input value is 50A, the output is 0-5V, the expected output value Uz should be calculated Uz＝5V×Ir/50A (5) Using output monitoring meter V2 to measuring the output voltage...
- Page 7 3. Don’t dismantle the product, and carry with care to avoiding bump and fall of the product; 4. If the product has been using under the environment with strong magnetic field interference, please pay attention to the shield of input wire, and the output signal wire should be as short as possible.
