Designing, Manufacturing and Supplying WB Series Electric Isolated Sensor and Digital
Electrical Transducer since 1989
USER MANUAL

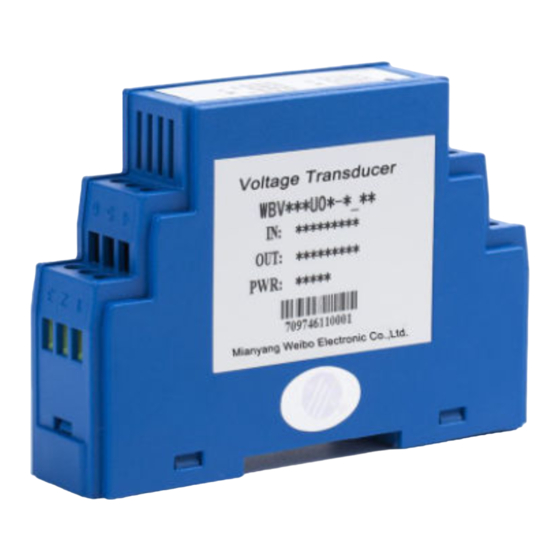

WBV342U05-S DC Voltage Transducer
www.mywbdz.com
alex827@qq.com
Technical Service: 86 816 2278271
Quality Complain: 86 816 2278273
Fax Line: 86 816 2281934
ISO9001 ISO14000 GB/T2800 CE
Certified
Quality Warranty
Any quality problem found in WB series products, we offer
Three years free charge of repair the products, and six months guaranteed free charge of change and return the
products.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mianyang Weibo Electronic WBV342U05-S
Summary of Contents for Mianyang Weibo Electronic WBV342U05-S
- Page 1 Designing, Manufacturing and Supplying WB Series Electric Isolated Sensor and Digital Electrical Transducer since 1989 USER MANUAL WBV342U05-S DC Voltage Transducer www.mywbdz.com alex827@qq.com Technical Service: 86 816 2278271 Quality Complain: 86 816 2278273 Fax Line: 86 816 2281934 ISO9001 ISO14000 GB/T2800 CE...
- Page 2 WBV342U05-S DC Voltage Transducer Safety claim The information in the safety claim of the equipment documentation is intended to ensure that equipment is properly installed in order to maintain it in a condition. It is assumed that everyone who would be associated with the equipment should be familiar with the contents of that safety section, or this safety guide.
- Page 3 EN61000-6-4:2001 Product Description and Application WBV342U05-S converts DC input voltage into a load independent output signal DC voltage 0-5V or 0~10V. It has adopted modulation-demodulation isolation principle and average measurement method for real time measurement of DC voltage from electric net.
- Page 4 Product Terminal Identification Drawing Auxiliary ground （GND 1） DC Voltage output （Uz） Output ground （GND 2） DC voltage input（U+） ＞600V DC voltage input（U－） Auxiliary power（+E） ≤600V DC voltage input（U－） Non identified terminals cannot be used Key Technical Data: 1. Input: DC 0~1000V; 2.
- Page 5 Instruction of Installation and Use 1. The product has adopted structure compliance with EN50022; suitable for DIN rail mounting NS35/7.5, NS35/15. Installation steps are as following (please reference to dimensional drawing): Step 1: Immobilize one side of product‘s mounting trough to the DIN mounting rail; Step 2: Pull out the spring clasp;...
- Page 6 Auxiliary power Power Source Transducer – (3) Warming up the transducer for 3 minutes (4) Using output monitoring meter V1 to measuring the output of signal power source instrument, set any input value which is within the measuring range of the transducer Vr.(e.g.
- Page 7 hazardous environment using, please add protective alternatives. This product uses fire prevent ABS crust, its temperature withstand is only limited as +85℃, higher than this limitation will cause the product deformation. Please use and store carefully. This product can’t be used to measure the pulse DC voltage signal, otherwise there will be more errors or no output.
