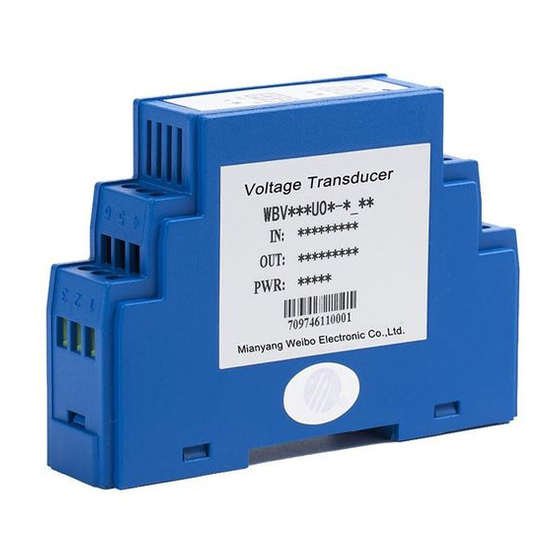

- Page 1 Designing, Manufacturing and Supplying WB Series Electric Isolated Transducer and Digital Electrical Transducer since 1989 USER MANUAL WBV412S01 AC voltage transducer ISO9001 ISO14000 ISO18000 Certified...
- Page 2 +86 816 2971265 (sales) +86 816 2281934 (fax) wbwm@wbdz.cn - 1 - WBV412S01 AC Voltage Transducer Safety claim The information in the safety claim of the equipment documentation is intended to ensure that equipment is properly installed in order to maintain it in a condition.
- Page 3 3.2 Power frequency magnetic field immunity test according to IEC 61000-4-8:1993 Product Description and Application WBV412S01 converts AC input voltage into a load independent output signal DC voltage 0-5V. It has adopted electromagnetic isolation principle and average measurement method for real time measurement of AC voltage (in any wave form) from electric net or electric circuit.
- Page 4 Mianyang Weibo Electronic Co.,Ltd. No. 98 Youxian East Road, Youxian District,Mianyang City, Sichuang Province China www.wb-my.com/en www.weiboelectronic.cn +86 816 2971265 (sales) +86 816 2281934 (fax) wbwm@wbdz.cn - 3 - Product Terminal Identification Drawing DC voltage output (Uz ) Power supply and output ground (GND)
- Page 5 Mianyang Weibo Electronic Co.,Ltd. No. 98 Youxian East Road, Youxian District,Mianyang City, Sichuang Province China www.wb-my.com/en www.weiboelectronic.cn +86 816 2971265 (sales) +86 816 2281934 (fax) wbwm@wbdz.cn - 4 - Instruction of Installation and Use 1. The product has adopted structure compliance with EN50022;...
- Page 6 Mianyang Weibo Electronic Co.,Ltd. No. 98 Youxian East Road, Youxian District,Mianyang City, Sichuang Province China www.wb-my.com/en www.weiboelectronic.cn +86 816 2971265 (sales) +86 816 2281934 (fax) wbwm@wbdz.cn - 5 - Ambient temperature: 25℃±2℃ Relative humidity: RH(45～75)％ Accuracy for Signal Power Source instrument: 0.05...
- Page 7 Mianyang Weibo Electronic Co.,Ltd. No. 98 Youxian East Road, Youxian District,Mianyang City, Sichuang Province China www.wb-my.com/en www.weiboelectronic.cn +86 816 2971265 (sales) +86 816 2281934 (fax) wbwm@wbdz.cn - 6 - 3. Don’t dismantle the product, and carry with care to avoiding bump and fall of the product;...
